EC-340H 6.5" Frameless Coaxial Ceiling Speaker (5W/10W/20W/40W)
الكود: EC-340H

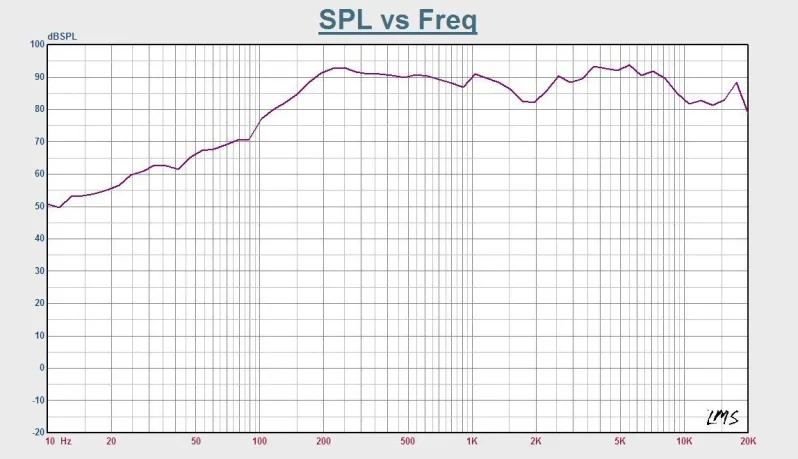

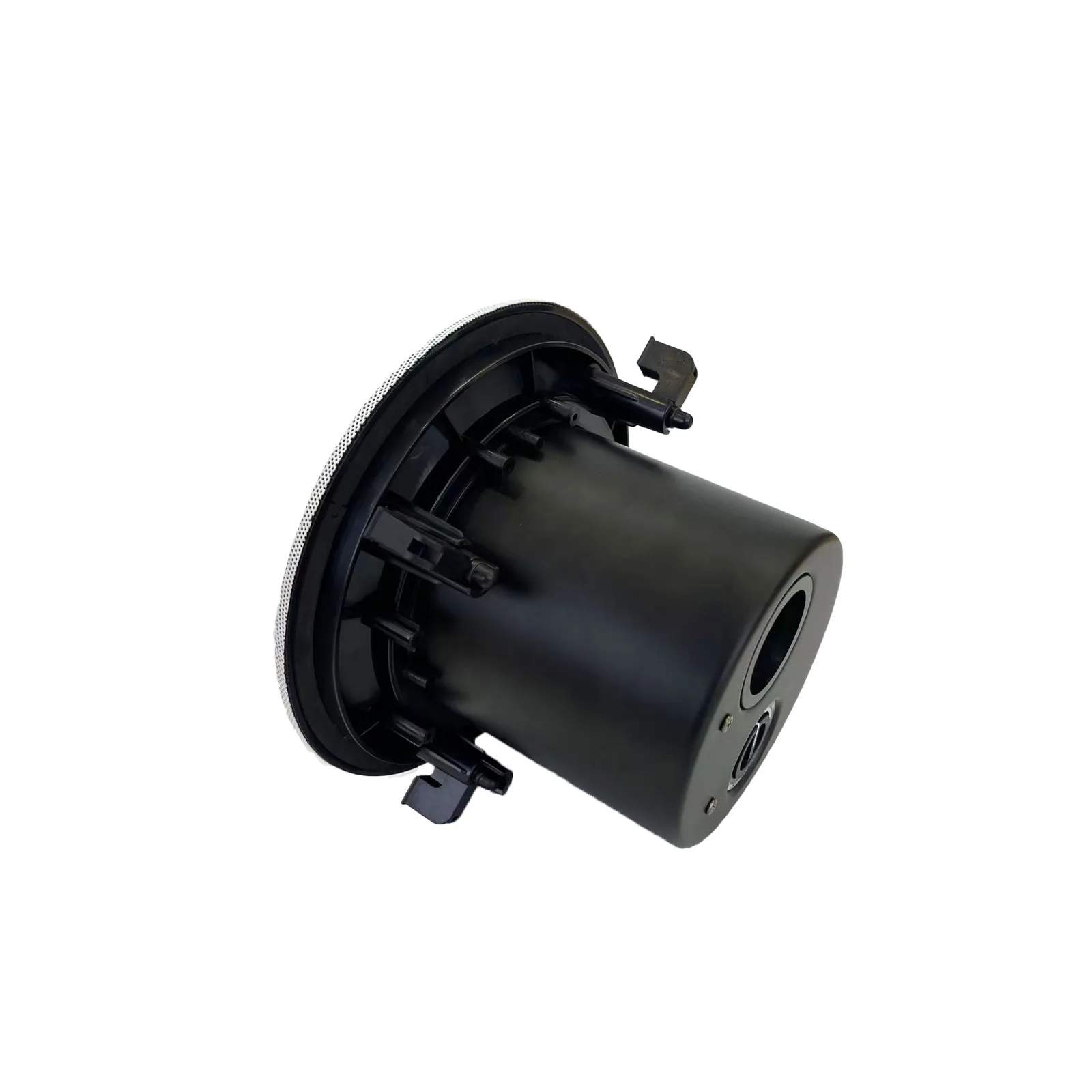

6.5 " Frameless Coaxial Ceiling Speaker (5W/10W/20W/40W) FCS - 340H Feature: 1. Commercial public address system ceiling speaker with transformer . 2. Hi-fi range coaxial ceiling loudspeaker with fire dome. 3. Ideal for school, restaurant, hotel, train station & airport BGM and speech use. 4. Rated power output 5W/10W/20W/40W at 100V and 8ohms 5. 6.5 " coaxial PP driver unit with 1 ” tweeter 6. Line input 100V or 70V & 8Ω. 7. ABS enclosure , metal grille and metal back can in white . 8. Flush mount i n-ceiling quick and secure installation . 9. Wide dispersion rang installation PA loudspeaker. Sp ecification : Model EC-340H Description 6.5” Coaxial Ceiling Speaker Rated Power Output 5W/10W/20W/40W Line Input 100V or 70V & 8Ω Frequency Response 80-18KHz SPL(@1W/m) 89dB Speaker Unit 6.5” coaxial PP driver with 1” tweeter Cutout Size 218mm Dimension Φ242x160mm Material ABS enclosure, metal grille and metal back can in black Mounting Way Flush mount in-ceiling quick and secure installation Weight 2kg Side View & Dimension: SPL VS Angle & SPL VS Frequency Diagrams:
