أنظمة الصوت / FTD Audio - نظام الإنذار الصوتي EN54-16

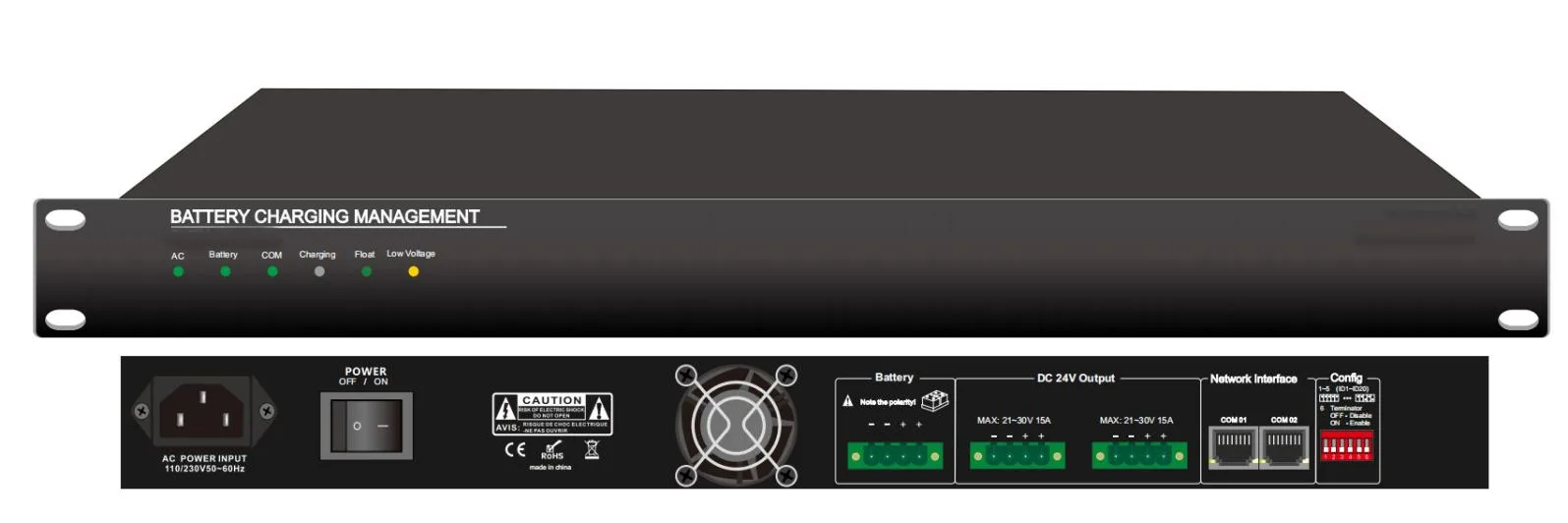

EC-6500BC 24V DC Battery Charger and Power Supply

الكود: EC-6500BC

24V DC Battery Charger and Power Supply EC-6500BC Features: Auto switch into DC power supply when AC power fails Select auto/manual charging mode automatically Storage battery failure, over voltage, over-heat and over time charging detection Automatic temperature control fan and over heat protection Built-in battery charge management and monitoring circuit When connected to AC power, DC24V will be off automatically Storage battery support two or one DC 24V lead-acid battery Selection charging mode automatically to ensure safety charging and service life Pre-charge-constant current-trickle charge High charging efficiency and restore efficiency Support multiple volumetric battery≤200Ah With ID pre-set its zone number up to 200 units With RS485 to communicate with third party system Specifications: Model EC-6500BC Description 24V DC Battery Charger and Power Supply Power Supply 220V-240V, 50/60Hz AC Maximum Current 2A AC Fuse 250V/3.15A, low speed type DC Power Output 24V DC battery DC Maximum Current 10A+10A Maximum Charging Current 10A adjustable Connector Two battery inputs, two 24V DC outputs, two RS485 and two CAN inputs. Battery capacity selector and ID selector. Cooling System Speed controlled cooling fan Operation Temp +5℃ to +45℃ Operation Humidity Dimension(mm) 484(W)×450(D)×44(H) Weight 4.5kg
