أنظمة الصوت / FTD Audio - مضخمات النداء العام

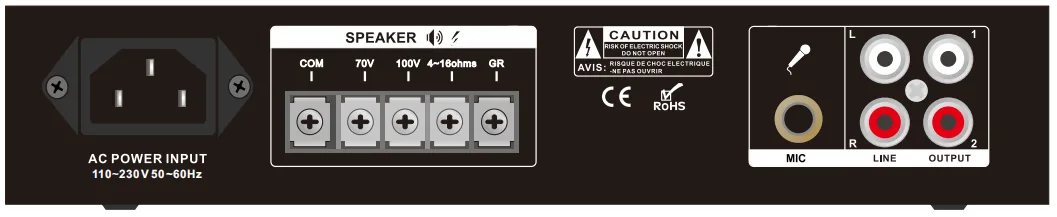

30W Compact Mixer Amplifier, 1 Mic, 1 Aux, 70V/100V/4-16ohms, AC230, 1U EC-30SM

الكود: EC-30SM

Economy Mini PA Amplifi er 60W/30W EC-60S M /FA-30S M Features: Compact mini size public address amplifier Built-in 100V/70V transfor mer technology Tabletop amplifier with 1U Height Rate power output at 30W and 60W , Speaker output of 100V or 70V & 4Ohms-8 Ohms-16 Ohms Two AUX input and one RCA line output Volume control for AUX, bass/treble and master With short-circuit, clip, overload and high temp protection AC2 3 0V or 11 0 V bo th operation system Specification: Model FA-30S M EC-60S M Description Public Address System Mixer Amplifier Rated Power Output 30W 60w Speaker Output 70V, 100V and 4-16Ω Input Line1&line2 : 10k ohms(Ω) 150-470 m V, unbalanced Frequency Response 60-15KHz THD 1kHz, 1/3 rated power S/N Ratio Line: 85 dB Protection High temp, short circuit, overload protection Power Supply AC110V-230V, 50-60Hz Power Consumption 37.5W 75W Dimension 220(W)×20(D)×45(H)mm Gross Weight 3kg Warranty 2 years
