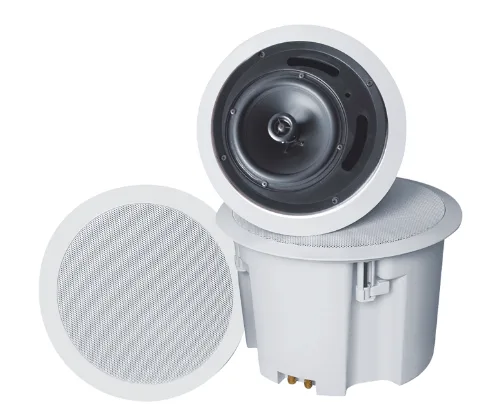

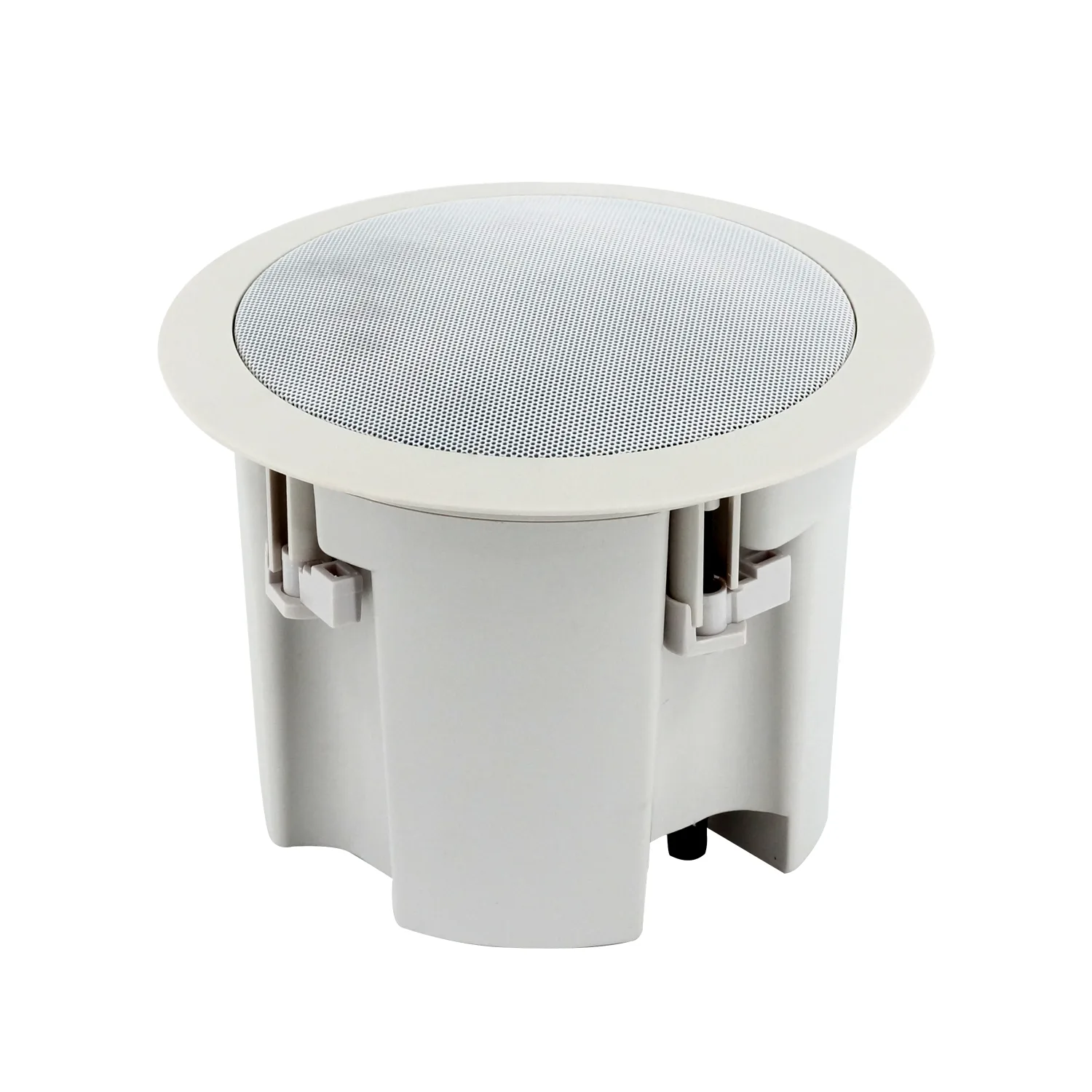

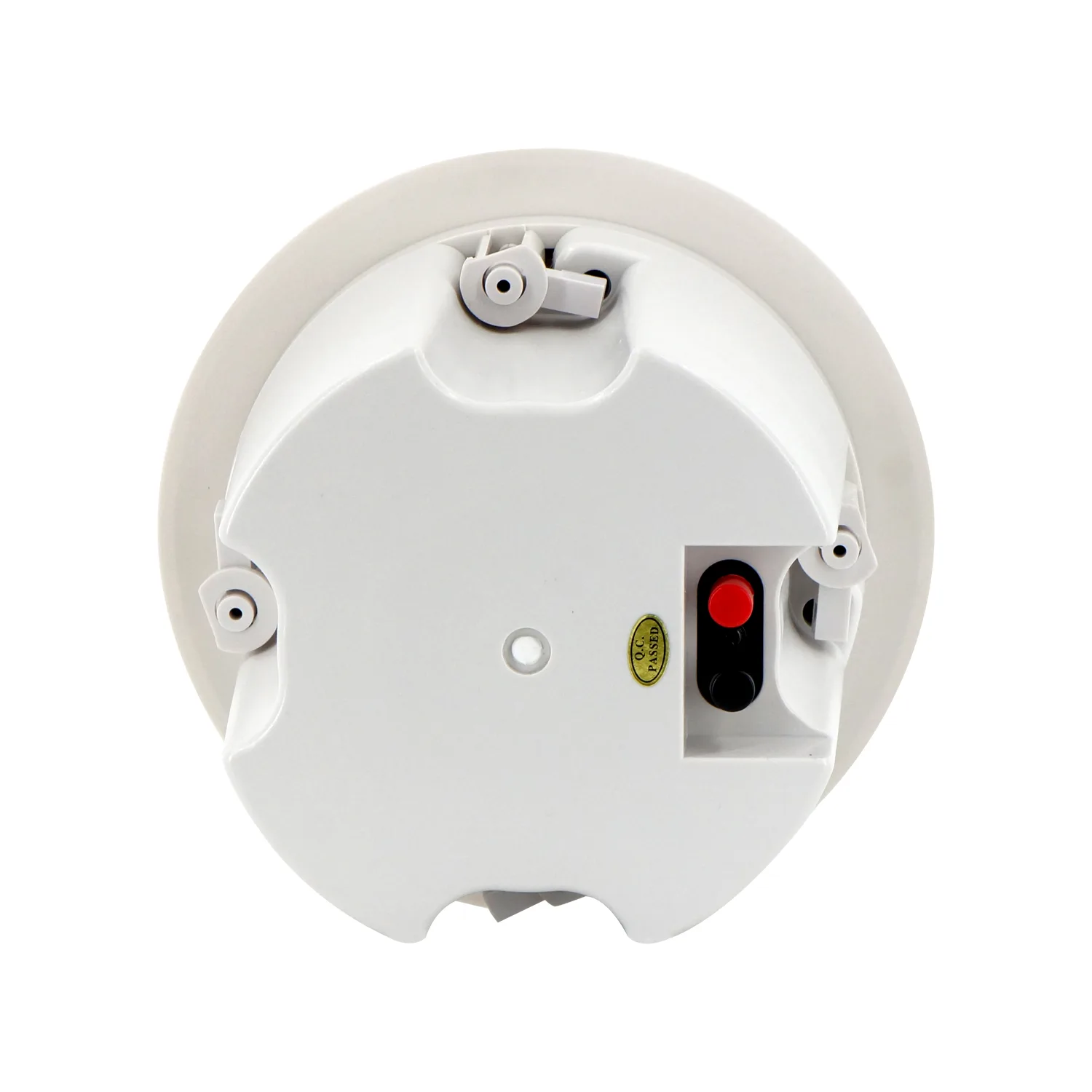

4" Coaxial Ceiling Speaker (20W/10W/5W/2.5W&8Ω) EC-620PH

الكود: EC-620PH

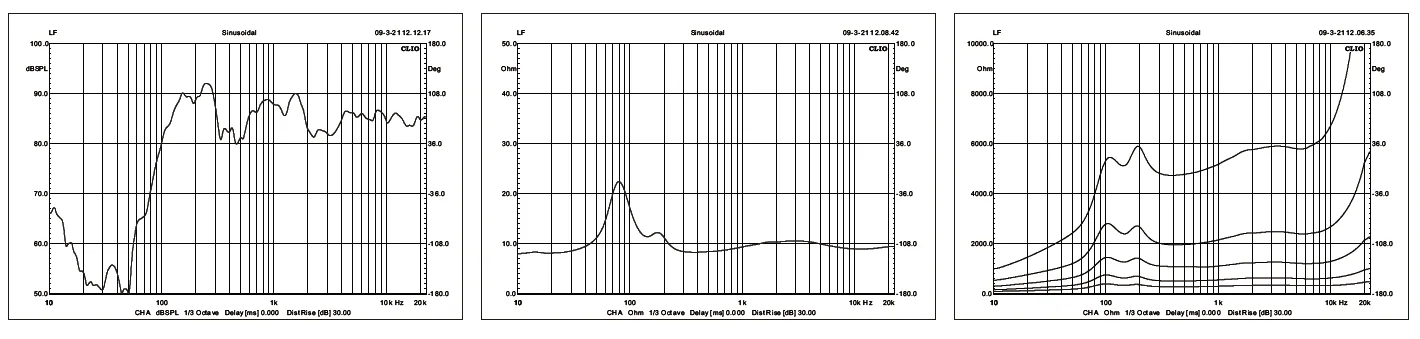

4" Coaxial Ceiling Speaker (20W/10W/5W/2.5W&8Ω) EC-620PH Feature: Commercial public address system ceiling speaker with transformer. Hi-fi range coaxial ceiling loudspeaker with ABS cover. Ideal for school, restaurant, hotel, train station & airport BGM and speech use. Rated power output 20W/10W/5W/2.5W&8Ω at 100V and 8ohms 4" coaxial PP driver unit with 1” tweeter Line input 100V or 70V & 8Ω. Flush mount in-ceiling quick and secure installation. Wide dispersion rang installation PA loudspeaker. Specification: Model EC-620PH Description 4” Coaxial Ceiling Speaker Rated Power Output 20W/10W/5W/2.5W&8Ω Line Input 100V or 70V & 8Ω Frequency Response 115Hz-11.6KHz SPL(@1W/m) 86±3dB Speaker Unit 4” coaxial PP driver with 1” tweeter Cutout Size 180mm Dimension Φ213x160mm Material ABS enclosure, metal grille and ABS cover in white Mounting Way Flush mount in-ceiling quick and secure installation Weight 1.66kg Side View & Dimension: SPL VS Angle & SPL VS Frequency Diagrams:
