أنظمة الصوت / FTD Audio - سماعات النداء العام

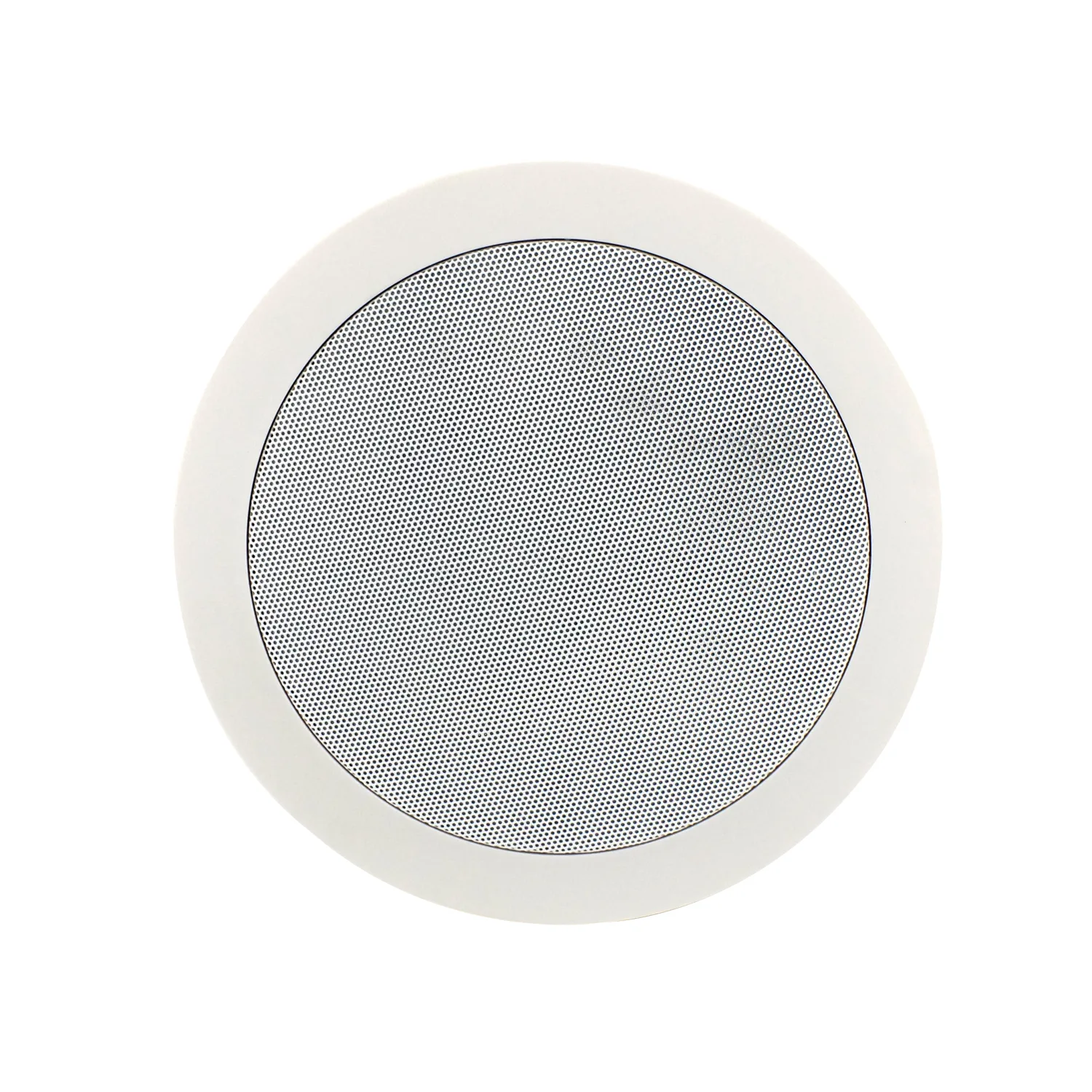

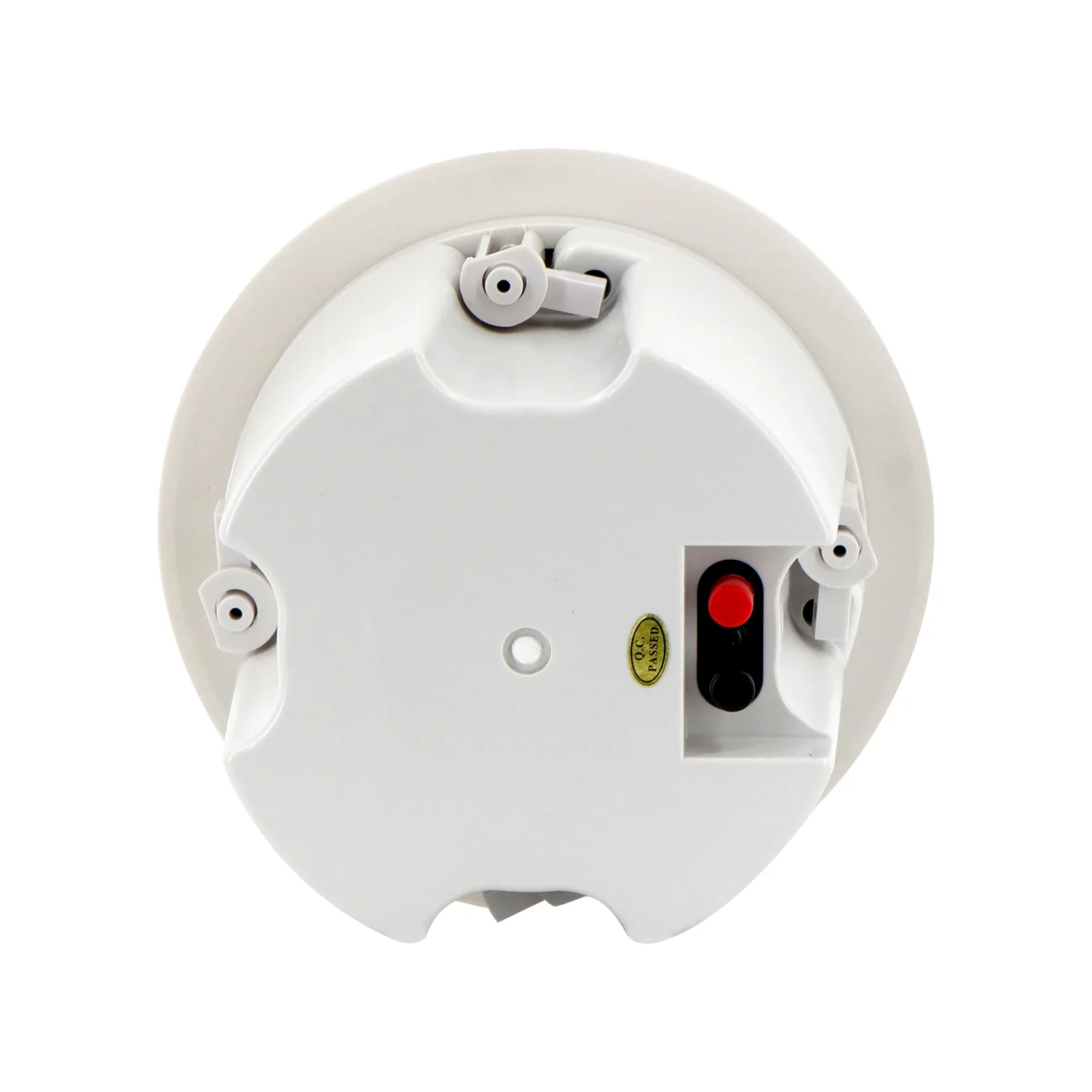

6" Coaxial Ceiling Speaker (5W/10W/20W/30W) EC-640PH

الكود: EC-640PH

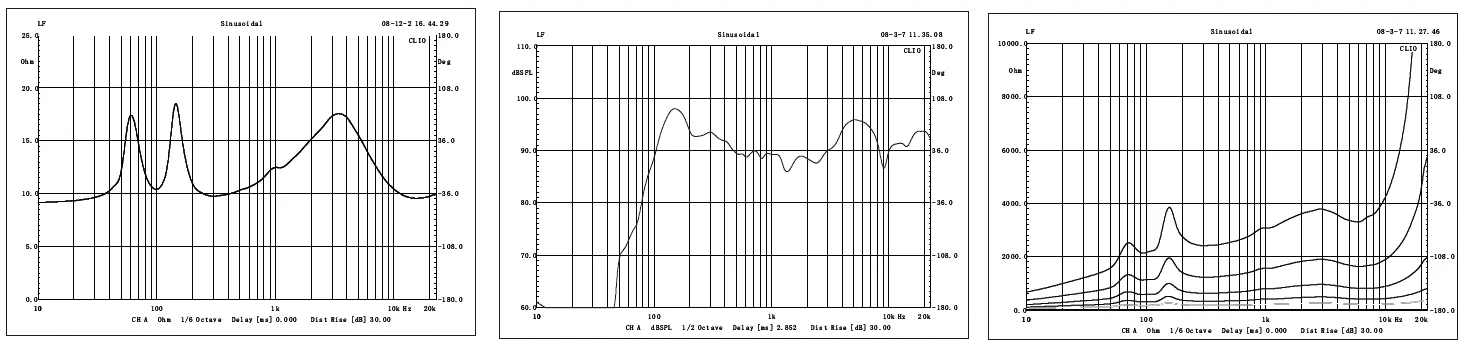

6" Coaxial Ceiling Speaker (5W/10W/20W/30W) EC-640PH Feature: Commercial public address system ceiling speaker with transformer. Hi-fi range coaxial ceiling loudspeaker with ABS cover Ideal for school, restaurant, hotel, train station & airport BGM and speech use. Rated power output 5W/10W/20W/30W at 100V and 8ohms 6" coaxial PP driver unit with 1” tweeter Line input 100V or 70V & 8Ω. Flush mount in-ceiling quick and secure installation. Wide dispersion rang installation PA loudspeaker. Specification: Model FCS-630PH Description 6” Coaxial Ceiling Speaker Rated Power Output 30W/20W/10W/5W&8Ω Line Input 100V or 70V & 8Ω Frequency Response 70-20KHz SPL(@1W/m) 90dB Speaker Unit 6” coaxial PP driver with 1” tweeter Cutout Size 250mm Dimension Φ280x190mm Material ABS enclosure, metal grille and ABS cover in white Mounting Way Flush mount in-ceiling quick and secure installation Weight 2.72kg Side View & Dimension: SPL VS Angle & SPL VS Frequency Diagrams:
