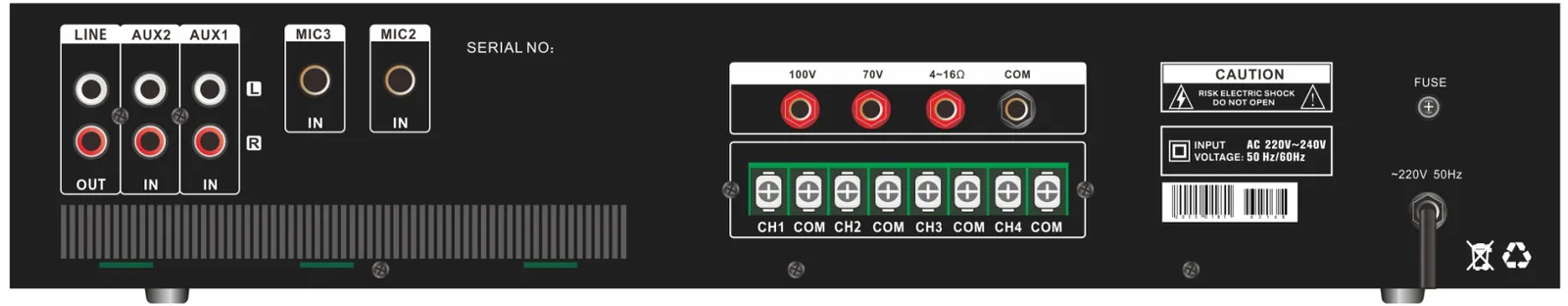

EC-4150M 4 zone Mixer Amplifier with zone volume control

الكود: EC-4150M

Public Address (PA) System 4 Zone Mixer Amplifier with Bluetooth EC-460M/EC-4150M/EC-4280M/EC-4480M/EC-4650M/EC-4850M Description: The PA 4 Zone Mixer Amplifier with MP3 and FM /SD/Bluetooth, its rated power output from 60W, 150W, 280W, 480W to 850W, it is ideal for school, super market, bank, hotel BGM and speech use. It is all in one solution with two sources, preamplifier and mixer power amplifier into one 19” 2U height unit, which is economy but of high reliable performance. The amplifier is with 3 MIC and two line input. Mic1 VOX with highest priority except EMC input. One USB and one SD slots on front provide easy access and operation for installer and end-user. The amplifier is design with complete protection of overload, short circuit and high temp to avoid any damage. These amplifiers are suitable for applications in bank, mosque, school, hotel, restaurant, theme centers and shopping center. Features: Public address (PA) 4 zone commercial mixer power amplifier. 19” rack mount amplifier of 2U height. Rated outputs of 60W, 150W, 280W, 480W to850W. 4 zone speaker outputs of 100V or 70V and 8ohms Four zone speaker outputs with independent volume control. Built-in MP3 player by USB & SD and FM tuner and Blue tooth Three microphone inputs, Mic1(6.3mm) in front panel and MIC2-3 on rear panel Line 1-2 inputs on rear panel by RCA. Microphone1 of VOX features of highest input priority. Volume control for Mic1-3 and line 1-2, bass & treble and zone volume control on front panel. Overload, short circuit and high temp protection. Public Address (PA) System 4 Zone Mixer Amplifier with Bluetooth EC-460M/EC-4150M/EC-4280M/EC-4480M/EC-4650M/EC-4850M Rear Panel: Specification: Model EC-460M EC-4150M EC-4280M EC-4480M EC-4850M Description Public Address System 60W Mixer Amplifier Rated Power Output 60W 150w 280w 480w 850w Speaker Output 70V, 100Vand 8ohms, 4zone speaker out 100V Input Mic1-3: 600 ohms(Ω) 5-8 mV, unbalanced, Line1-2: 10k ohms(Ω) 150-470 mV, unbalanced Frequency Response 60-15KHz THD S/N Ratio Line: 85 dB , MIC: >72 dB Protection High temp, short circuit, overload protection Power Supply AC230V or AC110V, 50-60Hz Power Consumption 100W 200W 400W 650W 1000W Dimension 418(W)×318(D)×88(H)mm Gross Weight 7.5kg 9.5kg 12.2kg 16kg 17.6kg Warranty 3 years
