أنظمة الصوت / FTD Audio - مضخمات النداء العام

EC-60MD 60W Tabletop mixer amplifier

الكود: EC-60MD

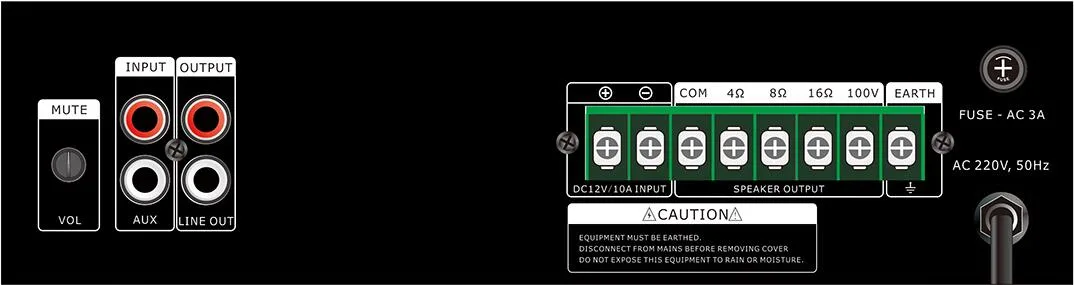

PA Amplifier with ECHO/USB/SD & FM & Blue Tooth, DC12V EC-30MD/EC-60MD Features: Compact mini size public address amplifier Ideal for classroom sound system use Built-in 100V/70V transformer technology Tabletop amplifier with Mp3 player, FM radio & blue tooth Rate power output at 30W to 60W . Speaker output of 100V or 70V & 4Ohms-8 Ohms-16 Ohms Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth LED indicators for power, clip, protect and signal Mic1-3 and one line. Mic1 of highest priority and one RCA line input and one RCA line output Volume control for Mic1-3, line1 and ECHO, Mp3/FM, bass/treble and master With short-circuit, clip, overload and high temp protection AC220V or 115V & 12V DC both operation system Specification: Model EC-30MD ECX-120C EC-240C EC-60MD EC-500C Description Public Address System 30W Mixer Amplifier Rated Power Output 30W 120w 240w 60w 500w Speaker Output 70V, 100V and 4-16Ω Input Mic1-3: 600 ohms(Ω) 5-8 mV, unbalanced, Line1: 10k ohms(Ω) 150-470 mV, unbalanced Frequency Response 60-15KHz THD S/N Ratio Line: 85 dB , MIC: >72 dB Protection High temp, short circuit, overload protection Power Supply AC230V or DC12V, 50-60Hz Power Consumption 50W 150W 310W 80W 650W Dimension 253(W)×220(D)×68(H)mm Gross Weight 4.2kg 6.6kg 9.6kg 5.3kg 13.7kg Warranty 3 years
