2 & 4-CH Bluetooth Wall Amplifier with Tuya

أنظمة الصوت / نظام صوت المنزل الذكي

2 & 4-CH Bluetooth Wall Amplifier with Tuya

الكود: EC-225ADT3 / BA-425ADT3

With RJ45 interface(2-CH)for both hard cat5 cable or WIFI connection With Tuya ZIGBEE gateway Adopt Bluetooth and WIFI wireless connection technology Standard 86 Mounted on the wall for easy control With wireless remote control Rs485 protocol for integration(2-CH) Download APP like Spotify, Pandora etc. to it to play music from internet Support triggering doorbell function Support remote trigger power on/off(2-CH) Support program timer on/off function; and programmed song play after power on Support audio input and output function with secure and fast connect phoenix connectors Support TF card and OTG 2.0USB interface, USB can be connected to the hard disk; Suitable for homes, commercial areas, kid＊s room, etc.

استفسار واتساب طلب عرض سعر تحميل الكتالوج

المواصفات الفنية

Model
EC-225ADT3 / BA-425ADT3
Output power
2*25W / 4*25W
Speaker Impedance
4-8ohm / 4-8ohm
System
Android 11 / Android 11
Body memory
1GB / 1GB
Expand TF card memory
8GB, Scalable to 32G / 8GB, Scalable to 32G
Network
WIFI / WIFI
CPU
Cortex 1.2G (Quad core) / Cortex 1.2G (Quad core)
Display
4inch capacitive touch screen / 4inch capacitive touch screen
Resolution
480*480 IPS / 480*480 IPS
Bluetooth wireless range
≒10M / ≒10M
USB
OTG USB / OTG USB
THD
0.03% (1W.1KHZ) / 0.03% (1W.1KHZ)
Frequency response
20 Hz-20 kHz (+/-2dB) / 20 Hz-20 kHz (+/-2dB)
SNR
98db / 98db
Music format
Mp3, WMA, WAV, AAC, WAW, APE, OGG, etc. / Mp3, WMA, WAV, AAC, WAW, APE, OGG, etc.
Video format
MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB, AVI, 3GP, H, 264, etc. / MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB, AVI, 3GP, H, 264, etc.
Power Requirements
110-250VAC / 110-250VAC
Audio
Aux audio input and outputs / Aux audio input and outputs
Dimension
86*86*38mm / 86*86*38mm
Weight
0.7kg / 0.7kg

الاستخدامات

With RJ45 interface(2-CH)for both hard cat5 cable or WIFI connection
With Tuya ZIGBEE gateway
Adopt Bluetooth and WIFI wireless connection technology
Standard 86 Mounted on the wall for easy control

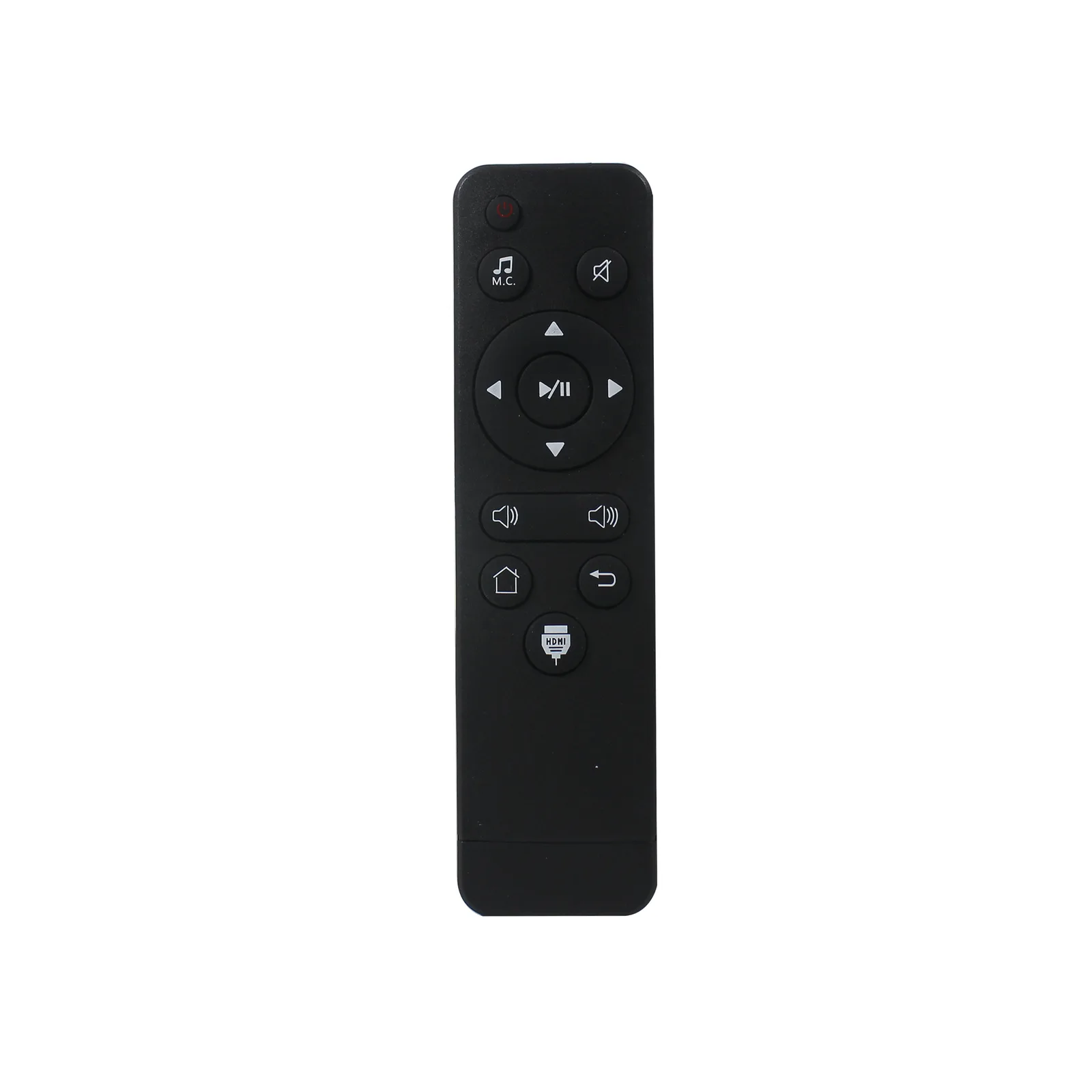

With wireless remote control
Rs485 protocol for integration(2-CH)
Download APP like Spotify, Pandora etc. to it to play music from internet
Support triggering doorbell function
Support remote trigger power on/off(2-CH)
Support program timer on/off function; and programmed song play after power on

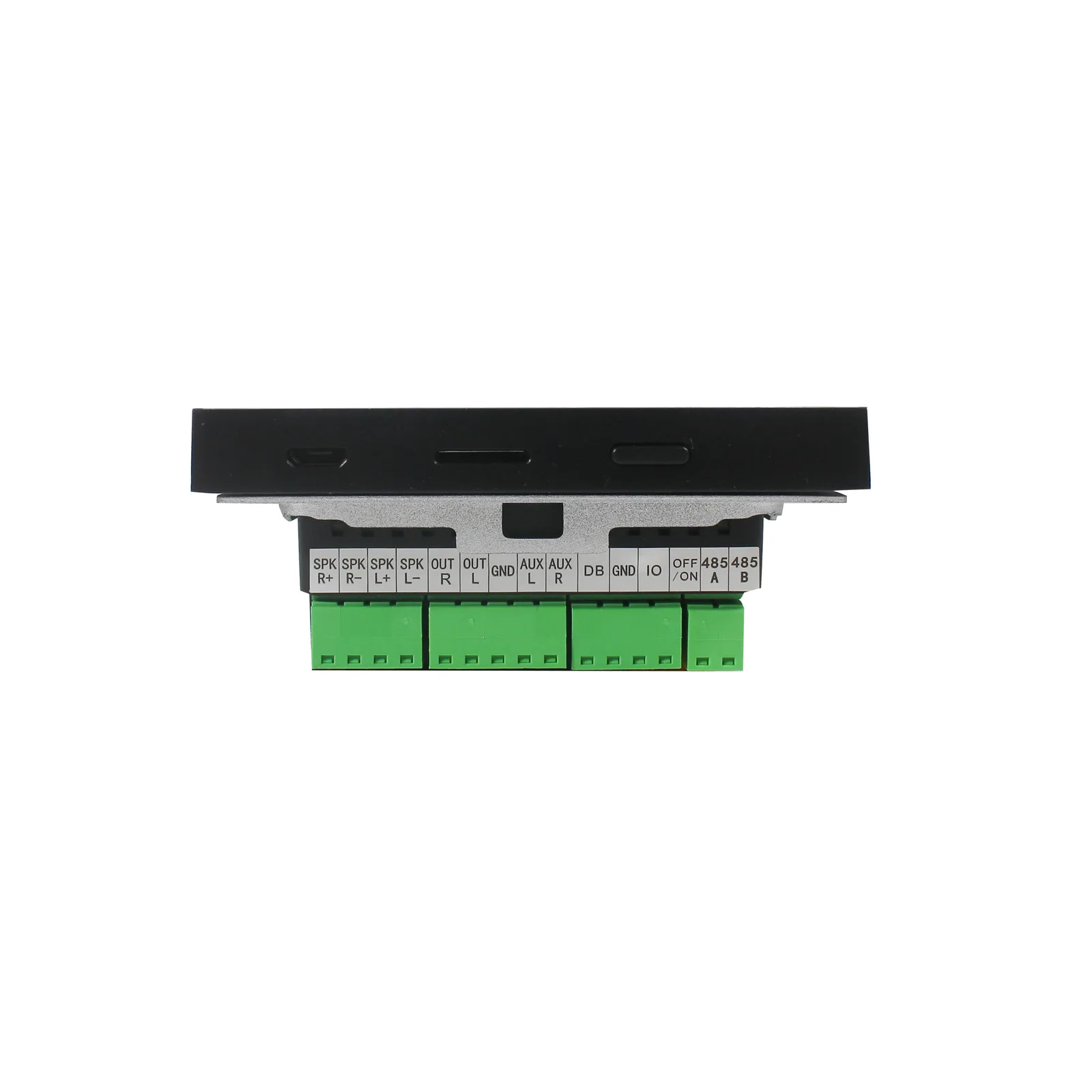

Support audio input and output function with secure and fast connect phoenix connectors
Support TF card and OTG 2.0USB interface, USB can be connected to the hard disk;
Suitable for homes, commercial areas, kid＊s room, etc.
