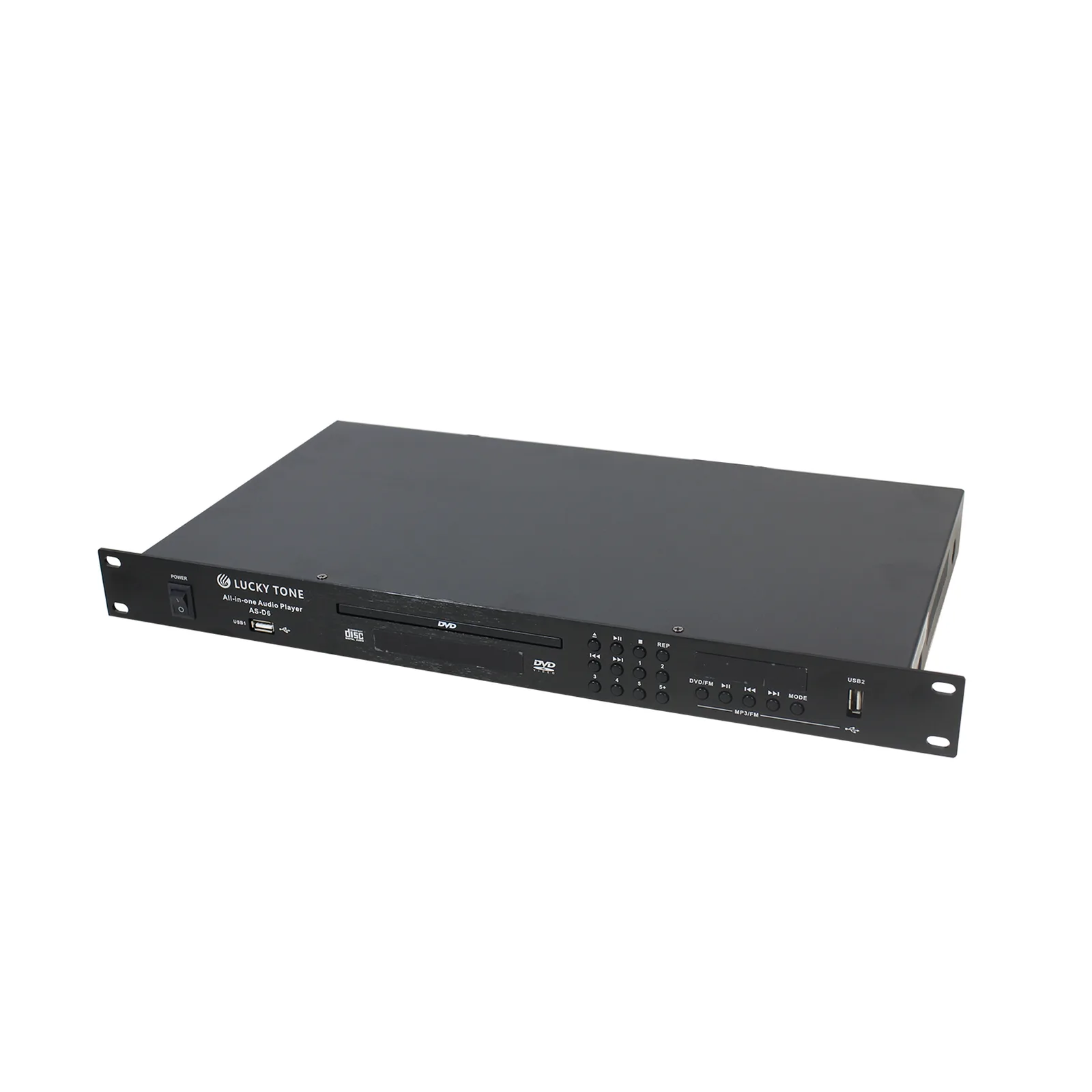

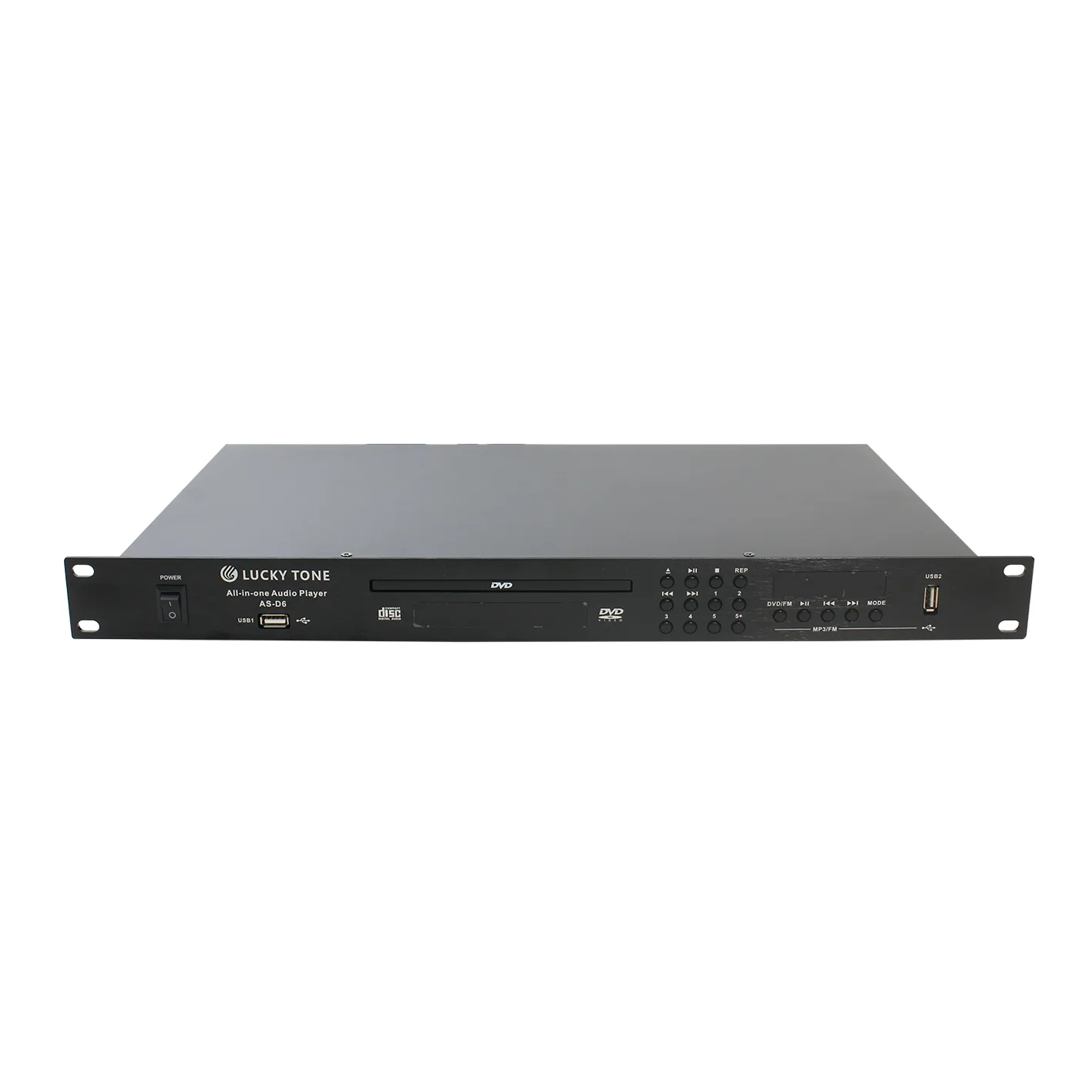

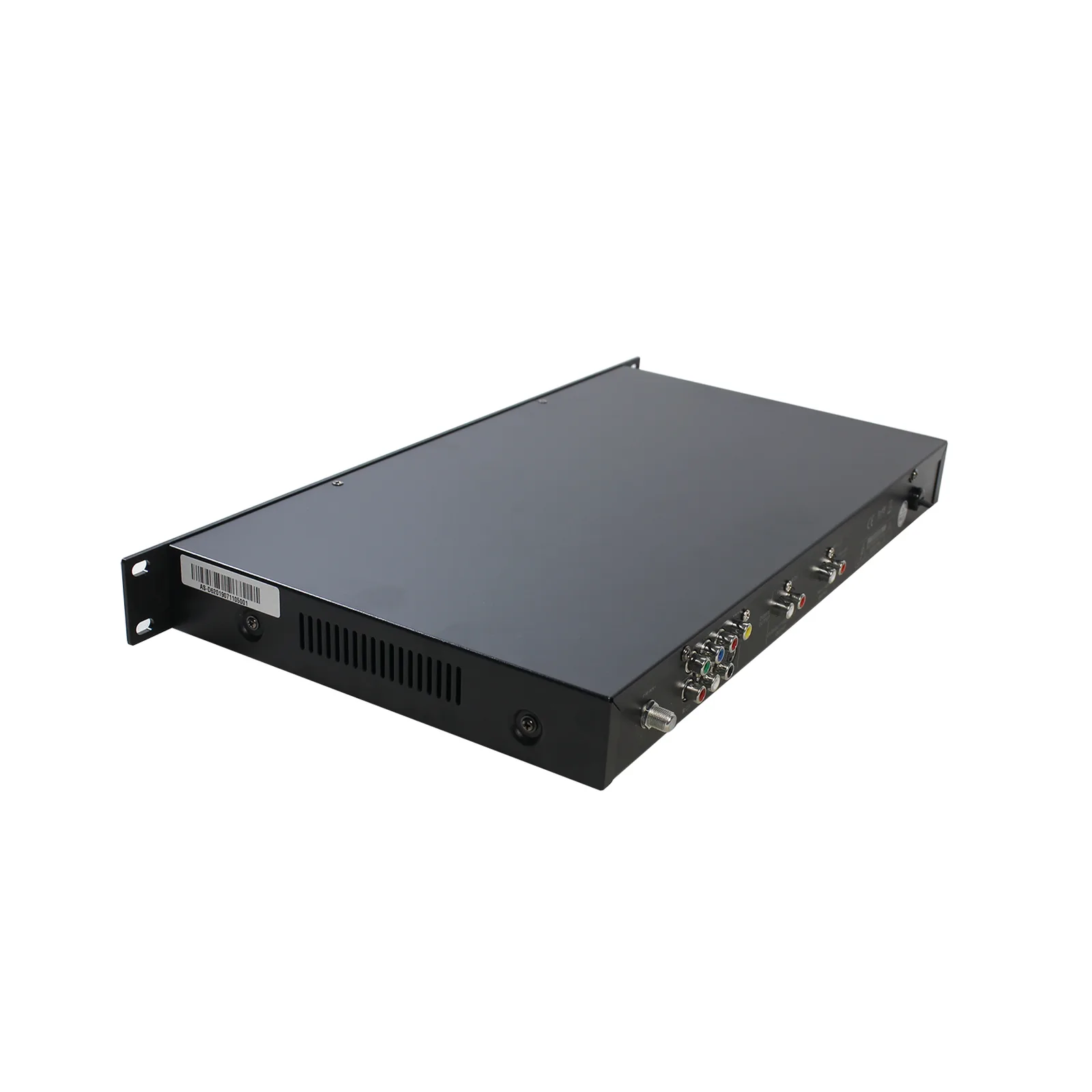

2-channel All-in-one Audio Player
الكود: EC-D6

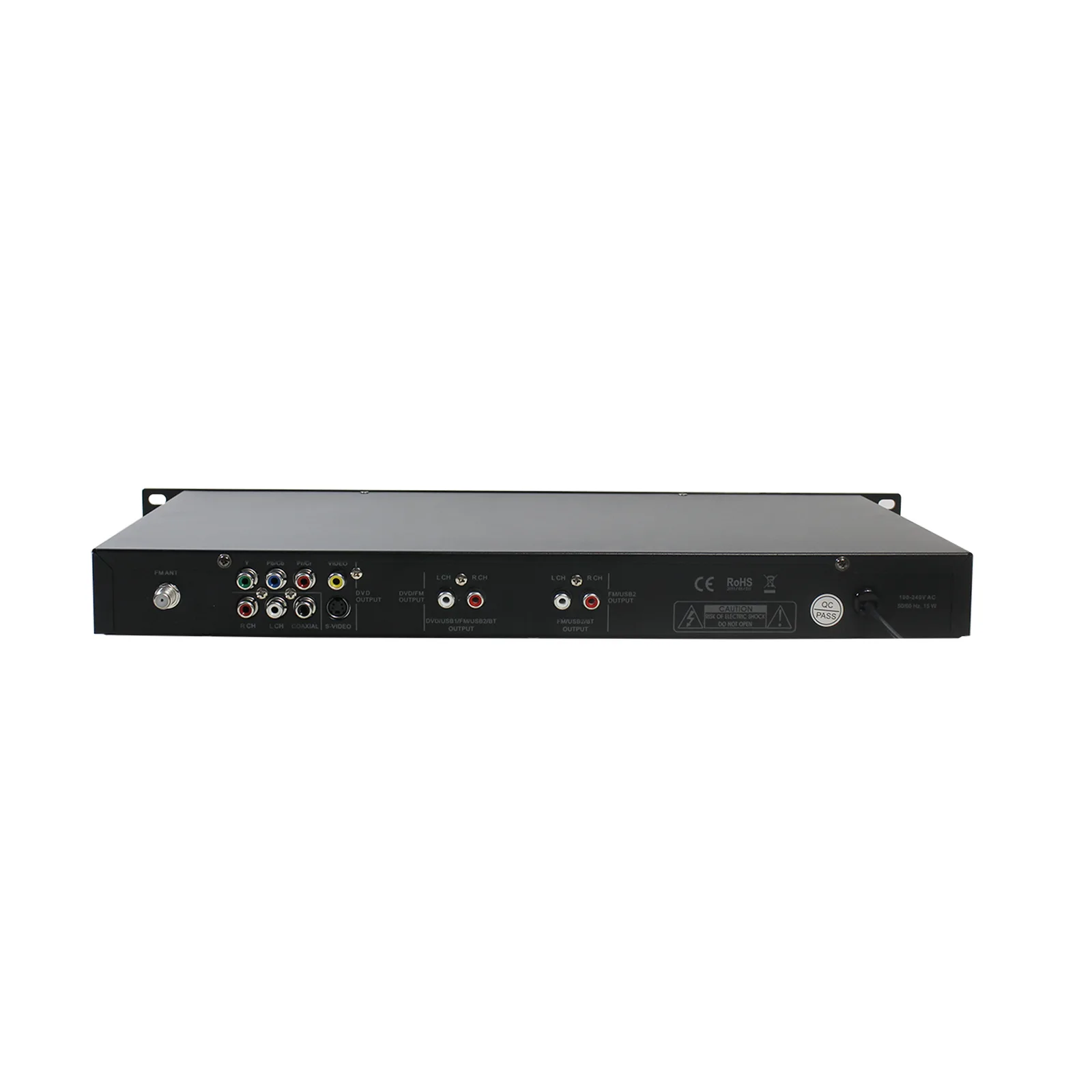

Features: ● Integrate with DVD, Mp4, Mp3, CD, tuner USB, into 1U unit ● With selectable 2 channel outputs ● Equipped with 2 USB inputs ● Stereo line output and video output by RCA ● Fast scan with manual and auto tuning ● With wireless IR remote controller ● Up to 60 channel memories can be set ● Mon and stereo output selection
المواصفات الفنية
MODEL
EC-D6
Audio Output
10K ohms, less than 500mV unbalanced
Frequency Range
AM: 522Khz-1620Khz; FM 87Mhz- 108Mhz
Antenna Input
75 Ohms
THD
Less than 0.01% at 1kHZ
S/N Ratio
AM Bigger than 40dB; FM Bigger than 45dB
Power Requirement
220-240V AC, 50/60 Hz;
Frequency Response
20Hz-18KHz
Power Consumption
10-15W
Built-in Dimension
1 U rack 19 inch
Net / Gross Weight
2.3/3.1 kg
Product Size (H*W*D mm)
45 x 483 x 255
