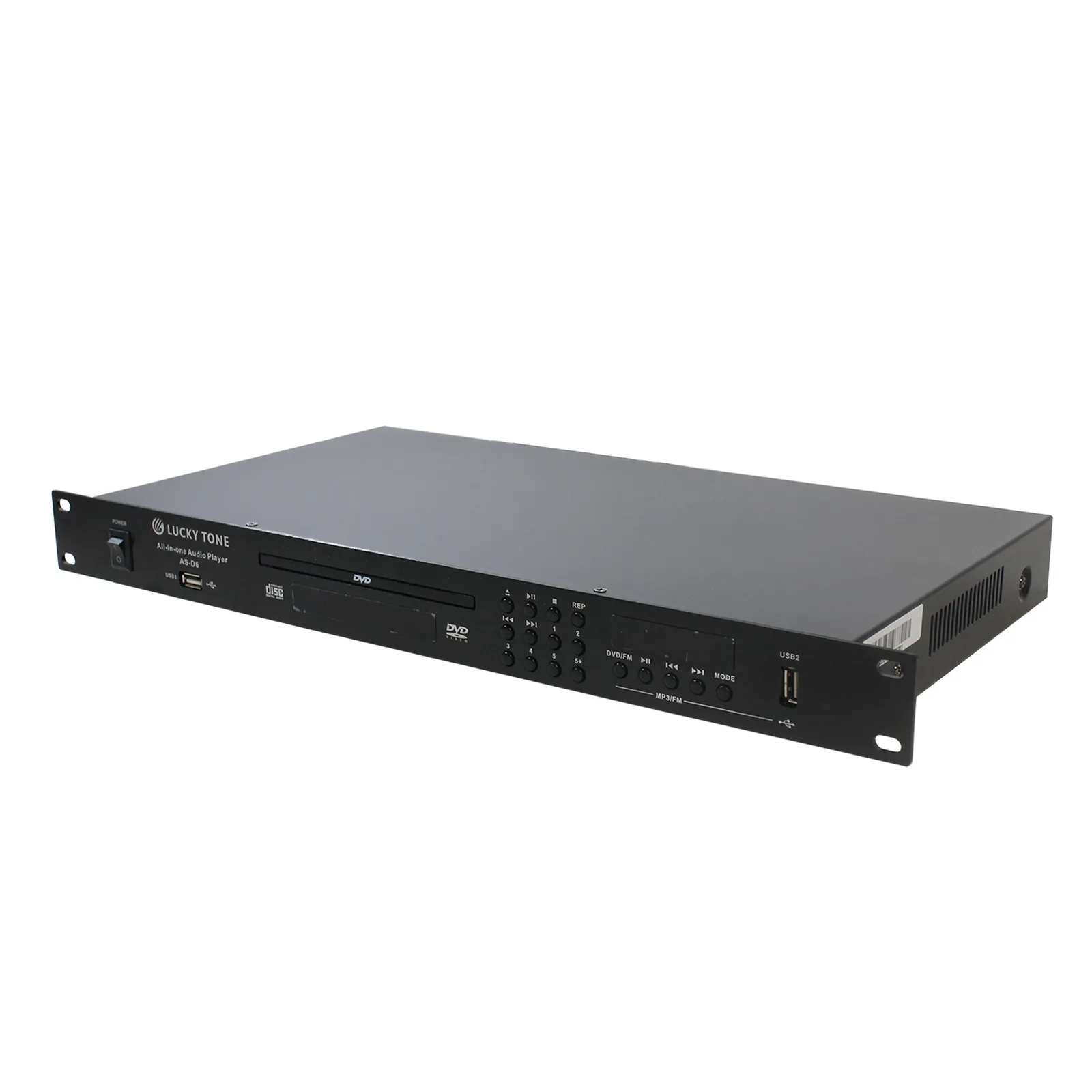

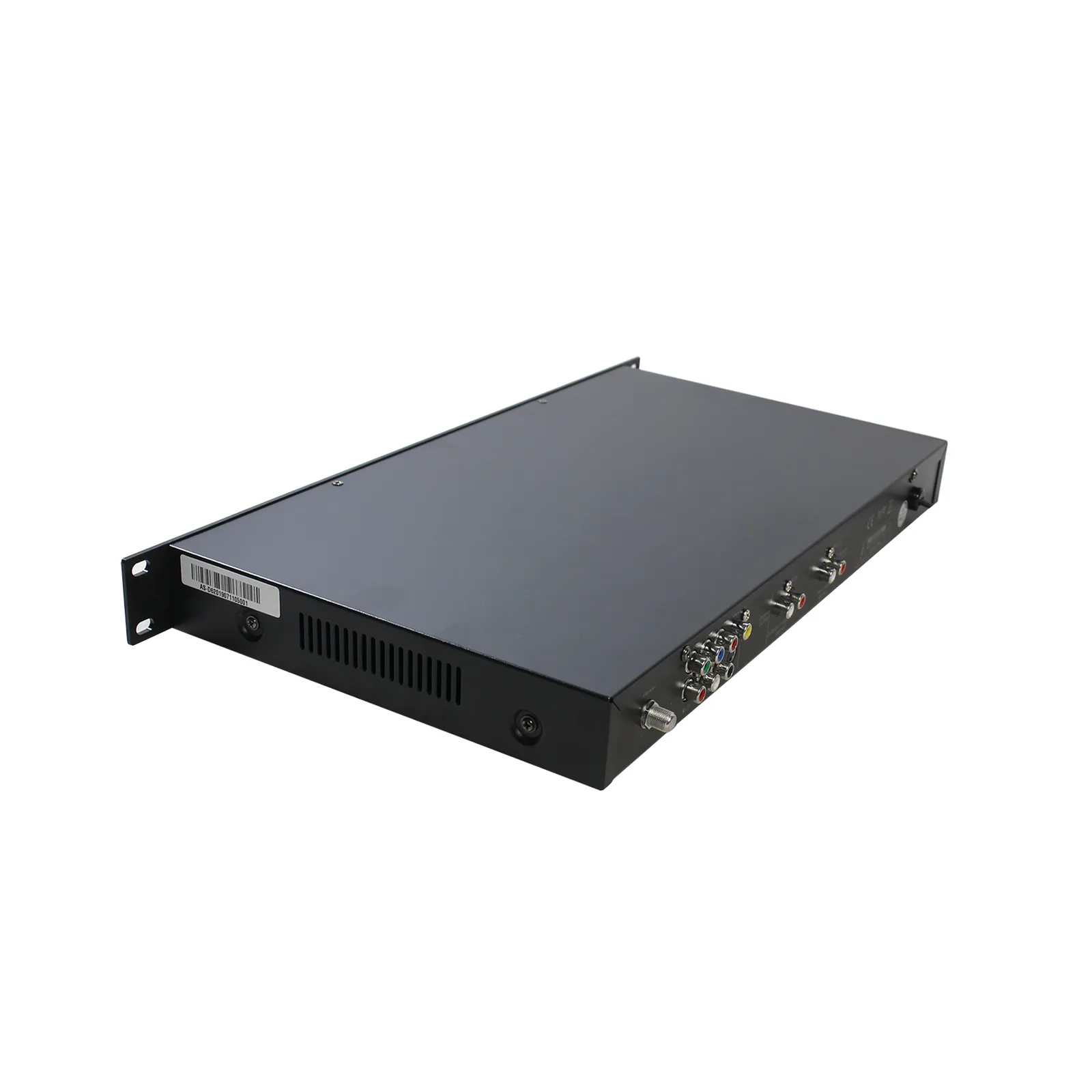

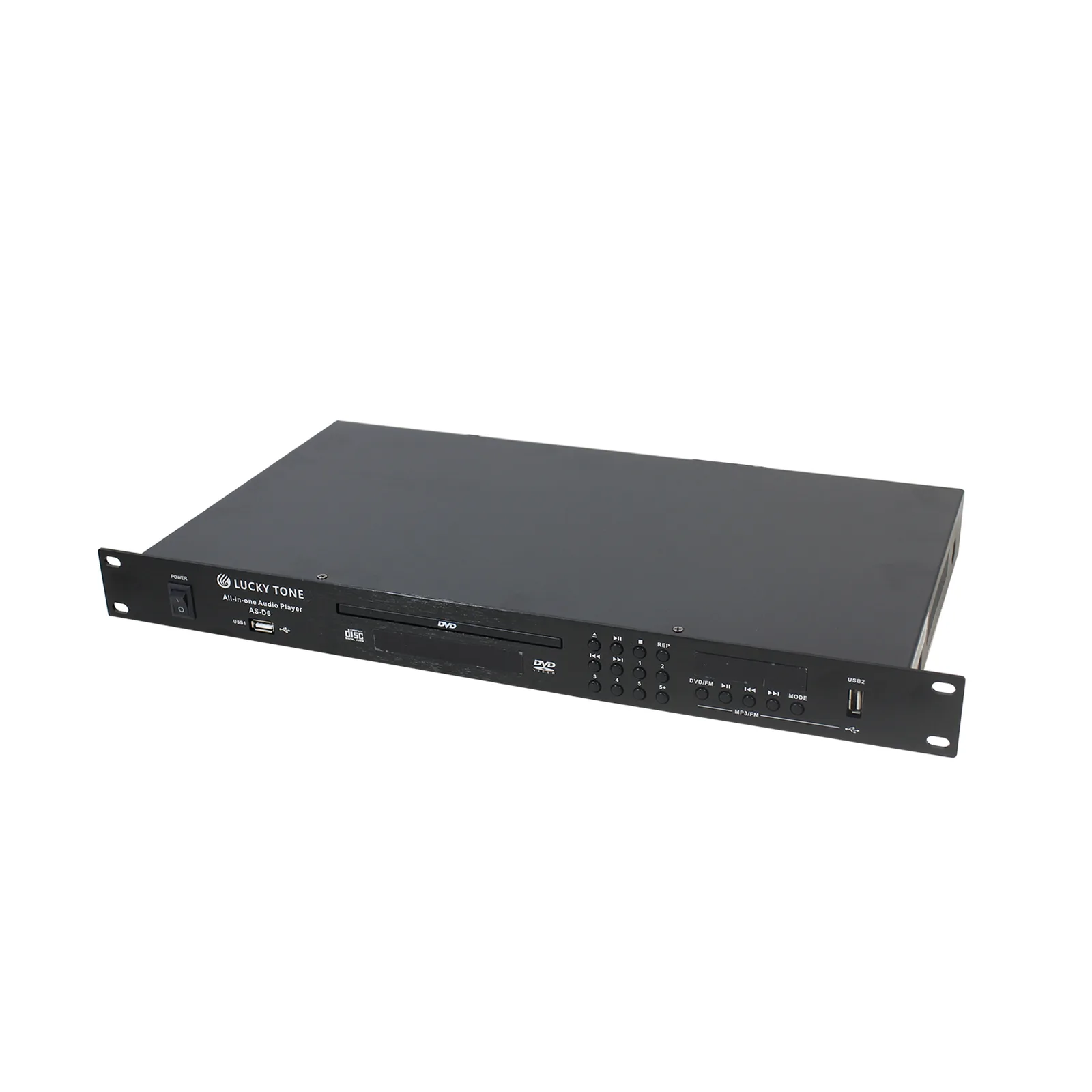

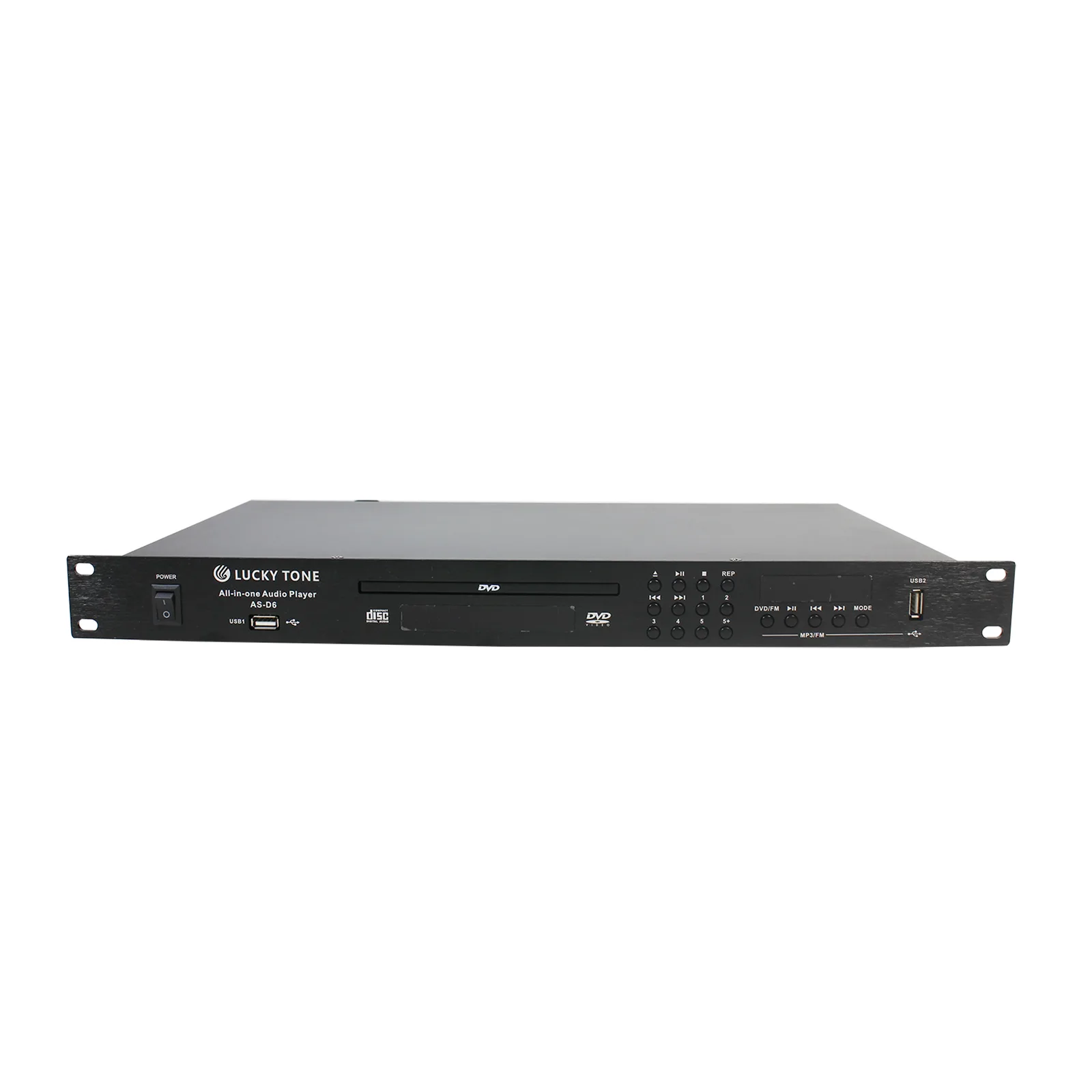

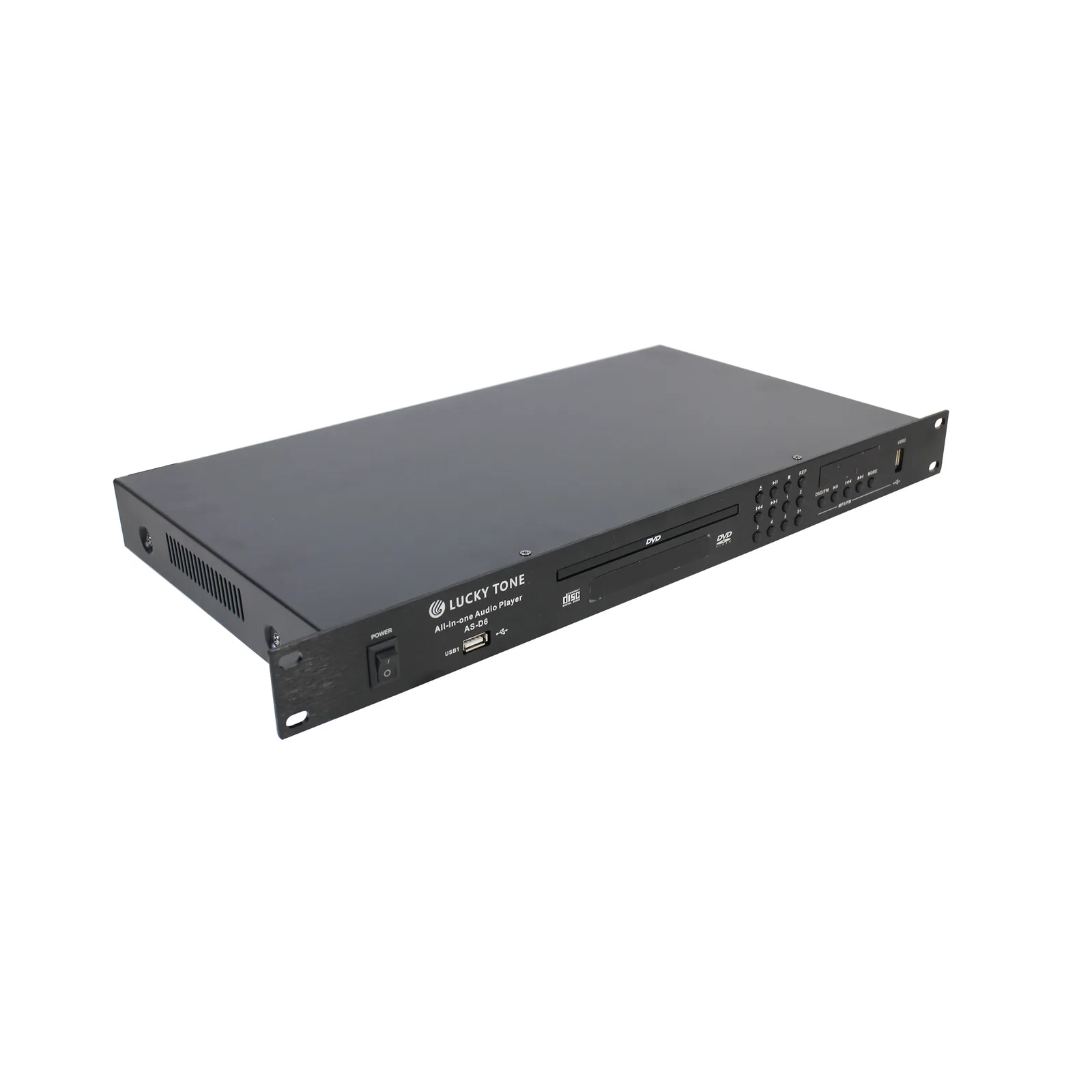

2-Channel All-In-One Audio Player
الكود: EC-D6
Features Integrate with DVD, Mp4, Mp3, CD, tuner USB, and Bluetooth into one U unit With selectable 2 channel outputs. Equipped with 2 USB inputs Stereo line output and video output by RCA Fast scan with manual and auto tuning. With wireless IR remote controller. Up to 60 channel memories can be set. Mon and stereo output selection.
المواصفات الفنية
Model
EC-D6
Audio Output
10K ohms, less than 500mV unbalanced
Frequency Range
FM 87Mhz- 108Mhz
Antenna Input
75 ohms
THD
Less than 0.01% at 1kHZ
S/N Ratio
FM Bigger than 45dB
Power Requirements
220-240V AC, 50/60 Hz;
Frequency Response
20Hz-18KHz
Power Consumption
10-15 W
Built-in Dimensions
1 U rack 19 inch
Net/Gross Weight
2.3/3.1 kg
Dimensions
45(H) x 483(W) x 255(D) mm
الاستخدامات
Integrate with DVD, Mp4, Mp3, CD, tuner USB, and Bluetooth into one U unit
With selectable 2 channel outputs.
Equipped with 2 USB inputs

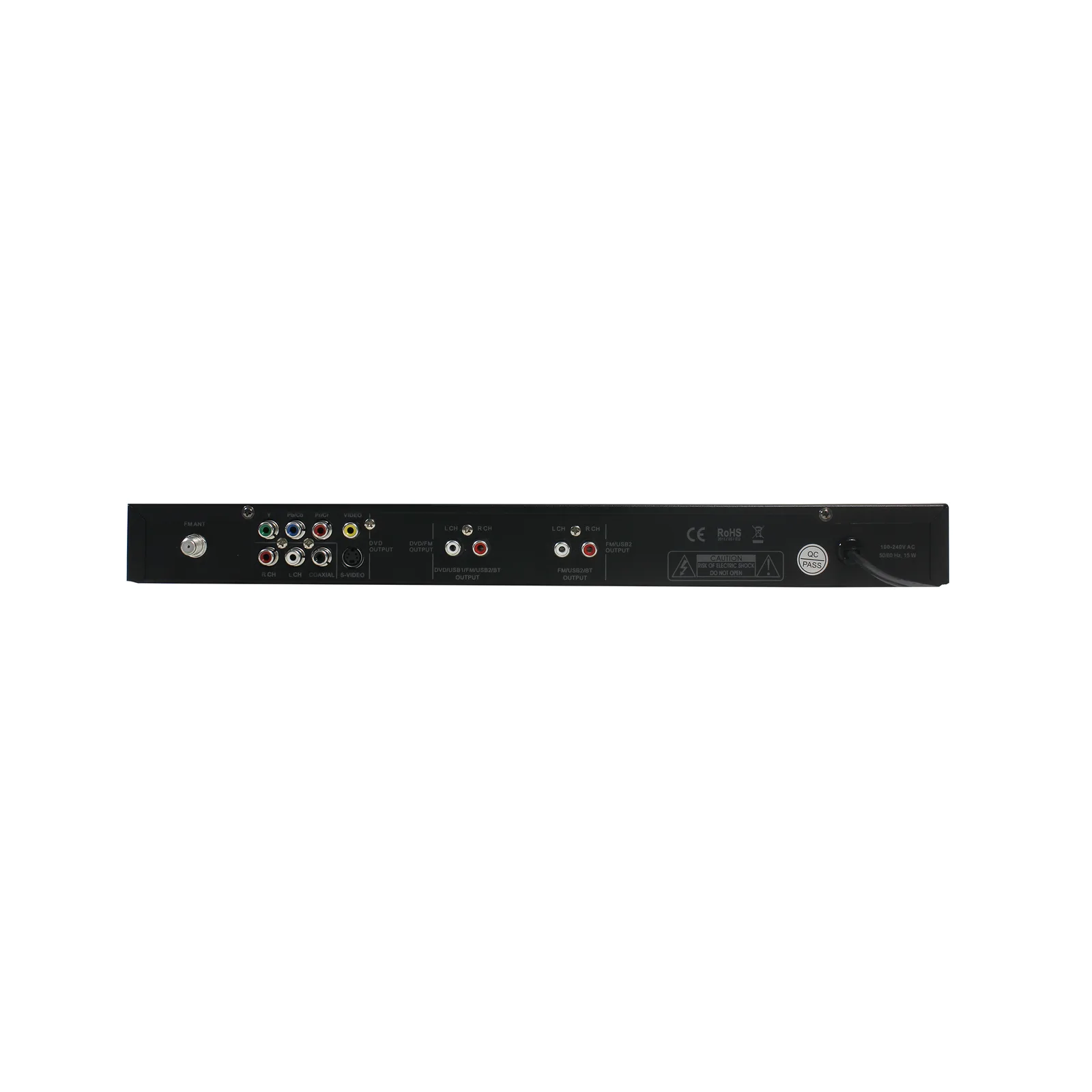

Stereo line output and video output by RCA
Fast scan with manual and auto tuning.
With wireless IR remote controller.
Up to 60 channel memories can be set.
Mon and stereo output selection.
