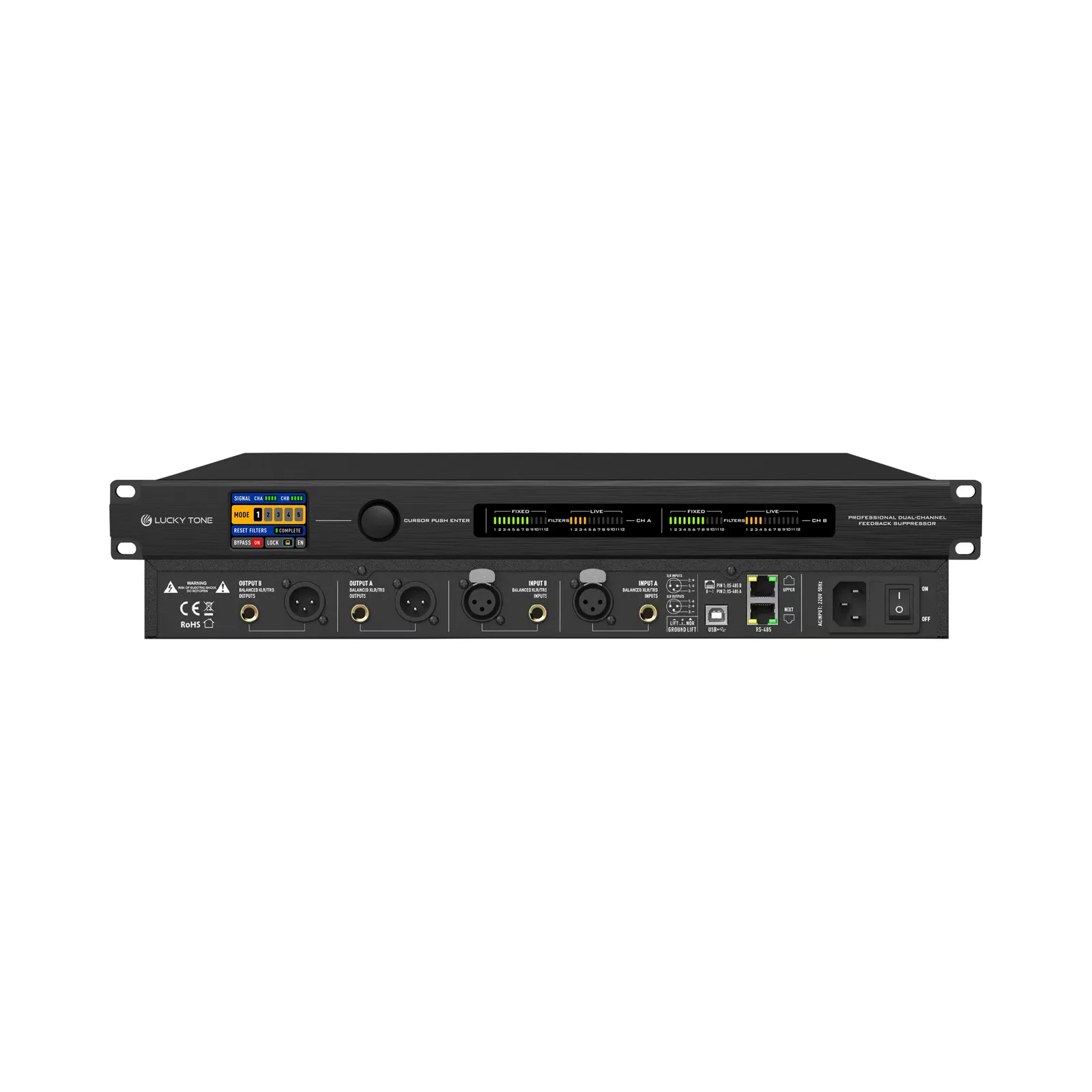

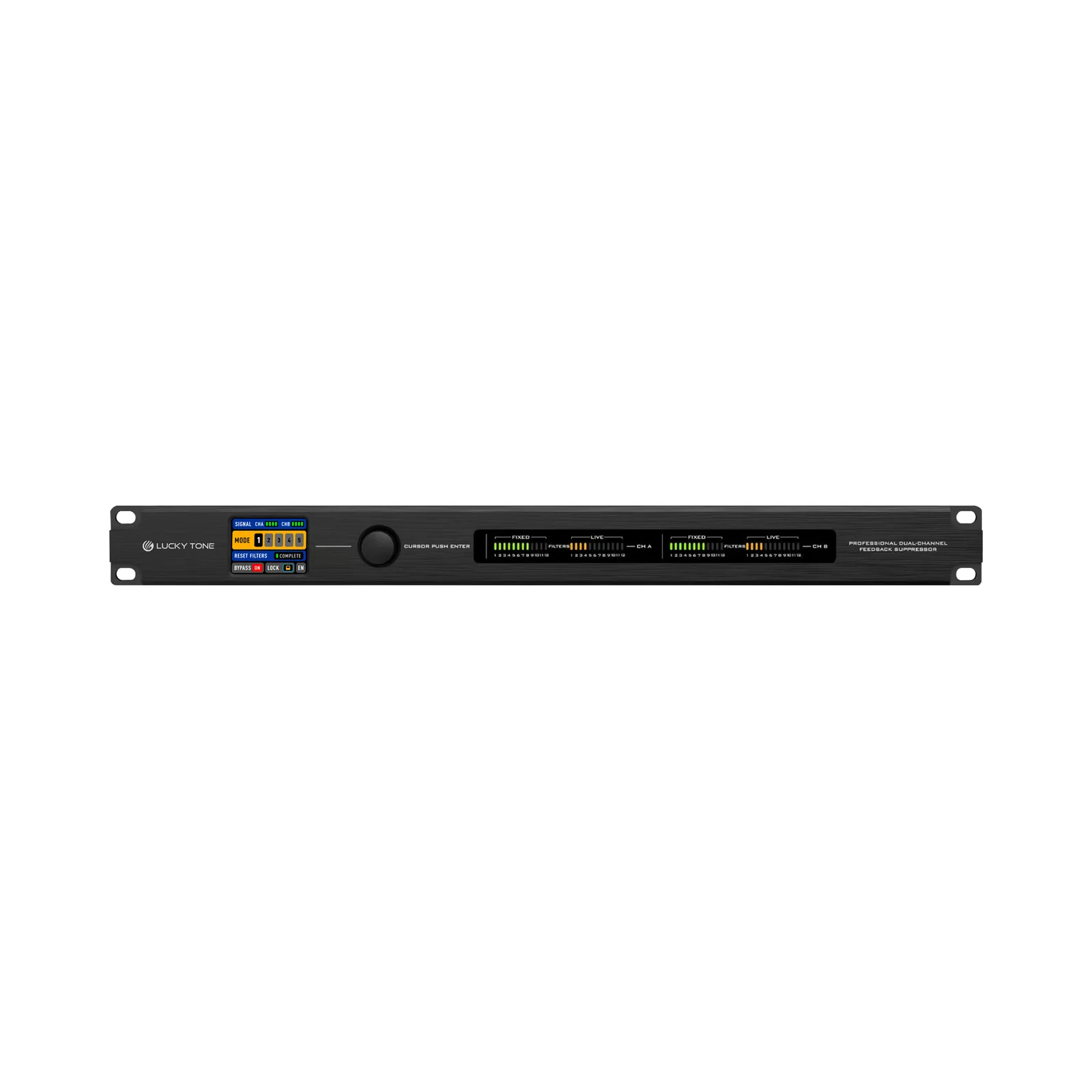

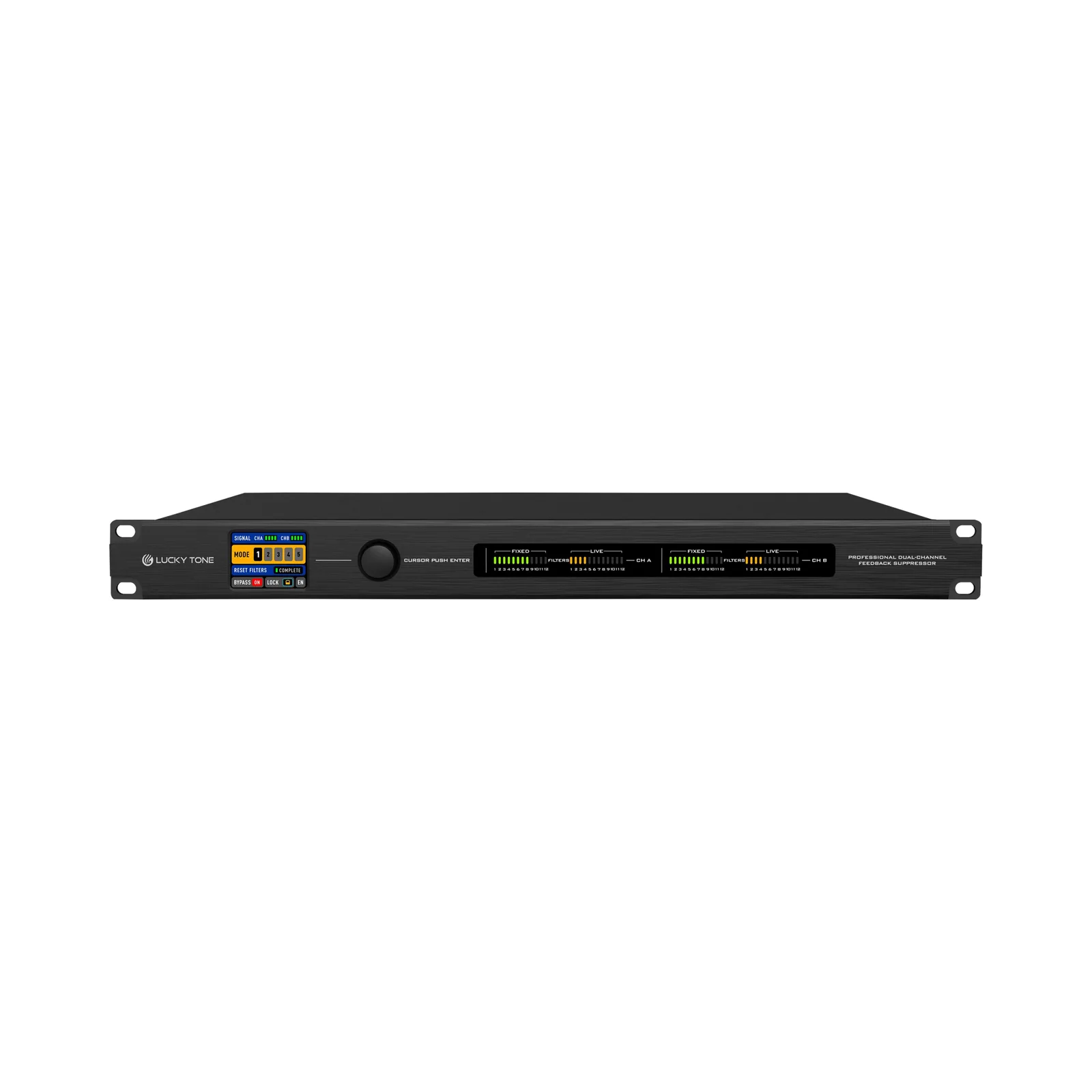

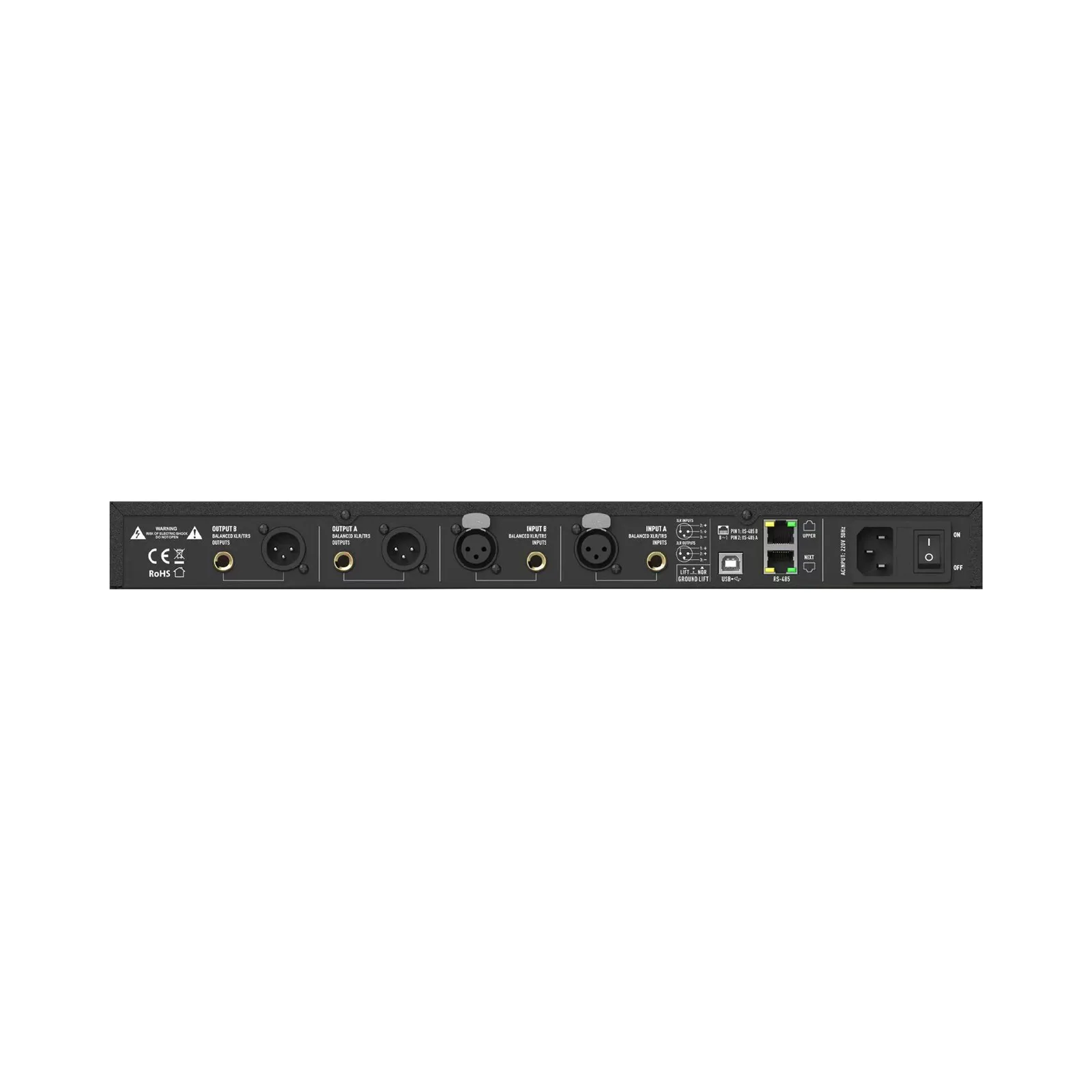

2 in 2 out Feedback Suppressor

أنظمة الصوت / الصوت الاحترافي

2 in 2 out Feedback Suppressor

الكود: EC-220

Features 48 kHz sampling frequency, 32 – bit DPS processor frequency zone (300 million), 24 to bitA/D and D/A conversion. A 5-speed automatic frequency shift mode selection, type are suitable for all kinds of scenarios and microphone. Using 2 inch IPS panel display shows parameter function, resolution of 320 * 240. Can be selected English menu display. 48 filter state LED light real-time display, each channel 12 static + 12 dynamic filter. Using a single bond shuttle and quick operation, fast implementation pattern, direct, locking and selection function in both Chinese and English. Adjustable frequency shift is plus or minus 10 Hz (1 Hz step), filter gain, Q value and quantity is adjustable. Independent each channel gain, noise gate, pressure limit device, frequency shift, filter, high and low pass, 7 segment PEQ feature set. Provide USB and RS – 485 communication interface, connection PC PC and control device. Through the PC computer to edit a 5-speed default mode, archiving and EQ file import and export support mode.

استفسار واتساب طلب عرض سعر تحميل الكتالوج

المواصفات الفنية

Model
EC-220
Input channel
2 x Female XLR and 1/4″ TRS,Electronically balanced/unbalanced, RF filtered
Output channel
2 x Male XLR and 1/4″ TRS,Electronically balanced/unbalanced, RF filtered
Input impedance
Balanced：10KΩ
Output impedance
Balanced：470Ω
Maximum input level
≤+20dBu
Maximum output level
≤+20dBu
Frequency Response
20Hz-20KHz±1 dB
Dynamic range
≥110dB
THD+N
≥103dB @1kHz 0dBu (A-weighted)
Distortion
<0.012% OUTPUT=0dBu/1kHz
PC interface
USB Type-B
Communication interface
RS-485, Baud rate: 115200
DSP
48kHz Sample Rate, 24-bit A/D & D/A Conversion.
Power consumption
<20W
Working temperature
-20℃ ~ +60℃
Dimensions (L×H×D)
482×44.4x265mm
Unit Weight
3.2 kg
Transport size (L×H×D)
600x90x338mm
Gross weight
4.2 kg

الاستخدامات

48 kHz sampling frequency, 32 – bit DPS processor frequency zone (300 million), 24 to bitA/D and D/A conversion.
A 5-speed automatic frequency shift mode selection, type are suitable for all kinds of scenarios and microphone.
Using 2 inch IPS panel display shows parameter function, resolution of 320 * 240. Can be selected English menu display.
48 filter state LED light real-time display, each channel 12 static + 12 dynamic filter.
Using a single bond shuttle and quick operation, fast implementation pattern, direct, locking and selection function in both Chinese and English.
Adjustable frequency shift is plus or minus 10 Hz (1 Hz step), filter gain, Q value and quantity is adjustable.
Independent each channel gain, noise gate, pressure limit device, frequency shift, filter, high and low pass, 7 segment PEQ feature set.
Provide USB and RS – 485 communication interface, connection PC PC and control device.
Through the PC computer to edit a 5-speed default mode, archiving and EQ file import and export support mode.
