ECHOX

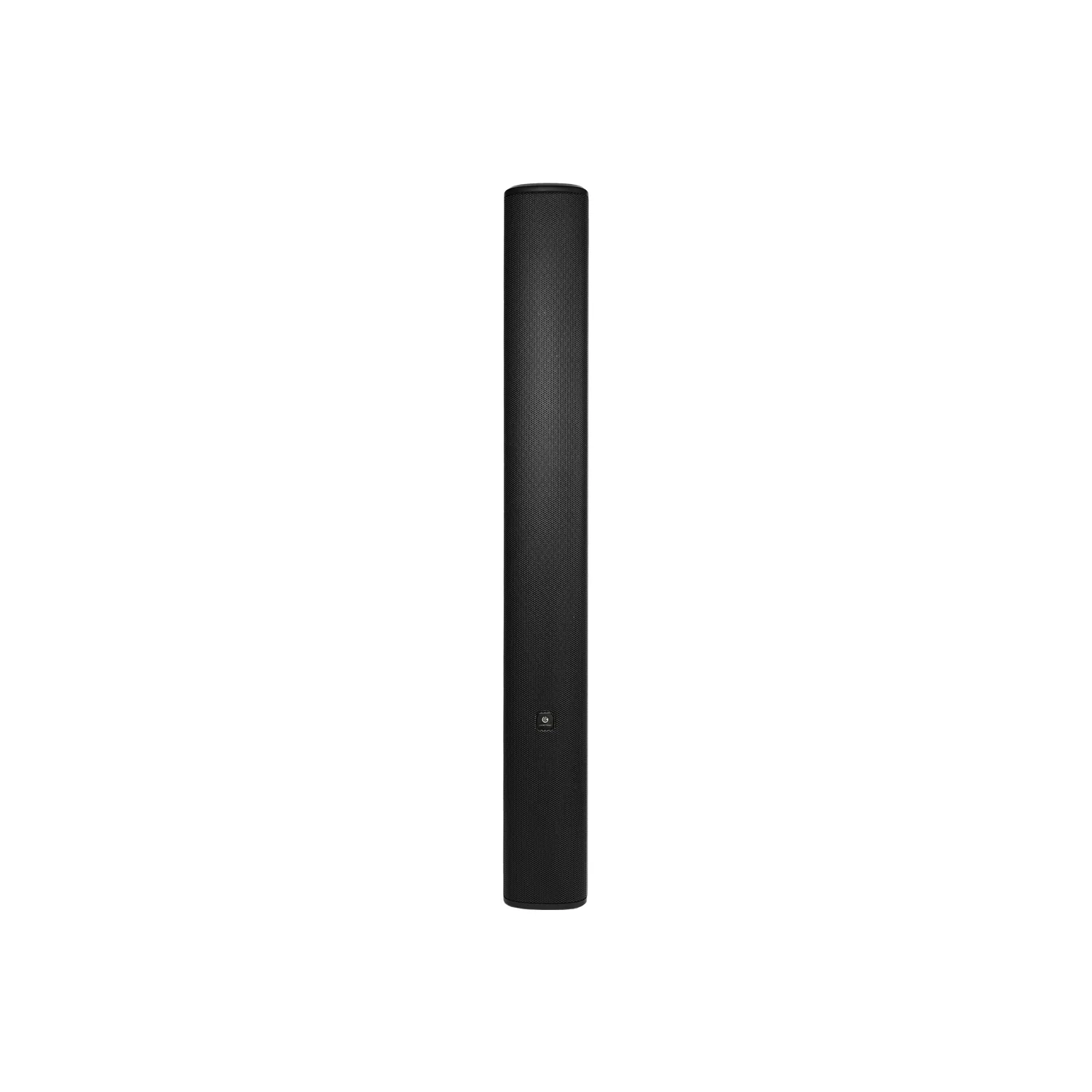

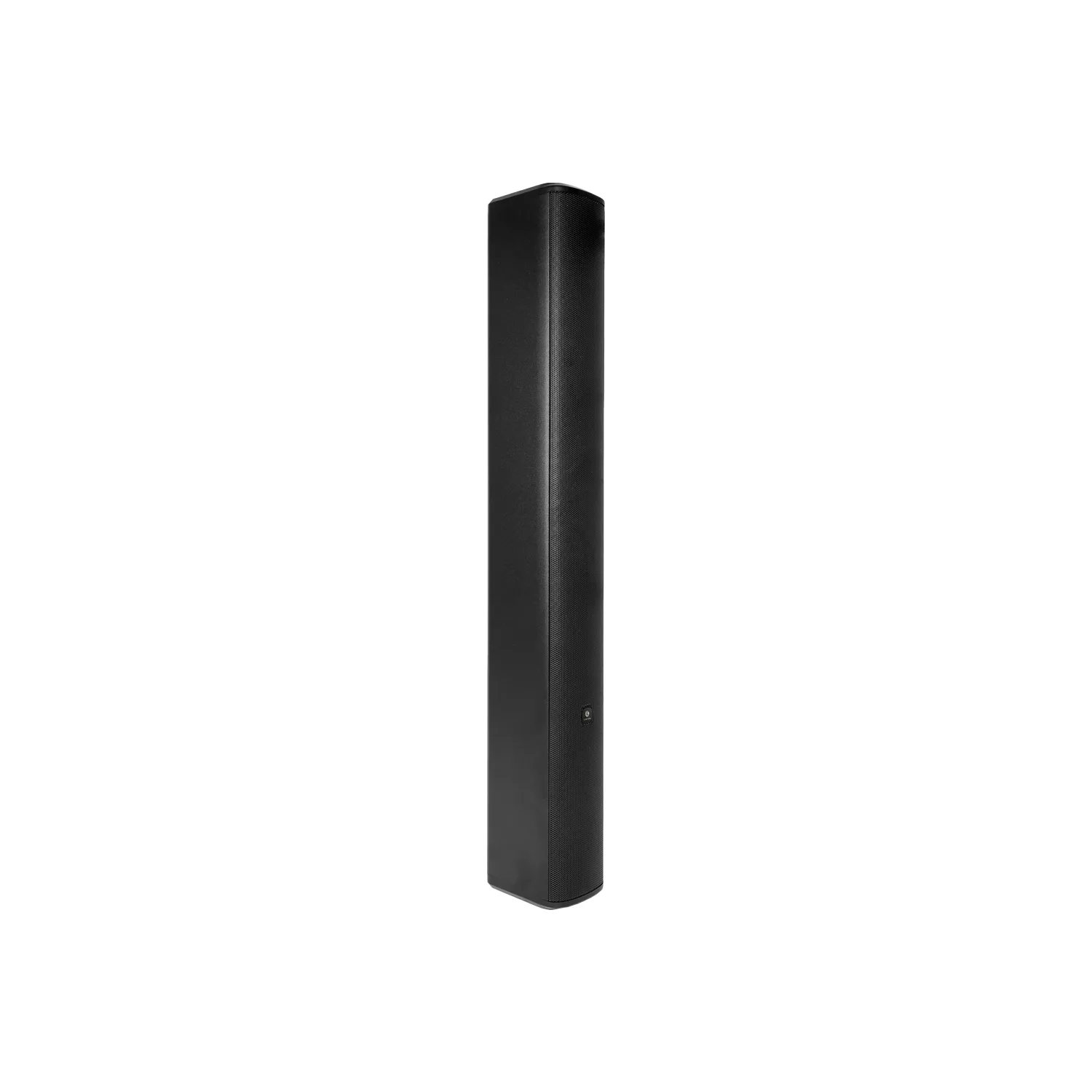

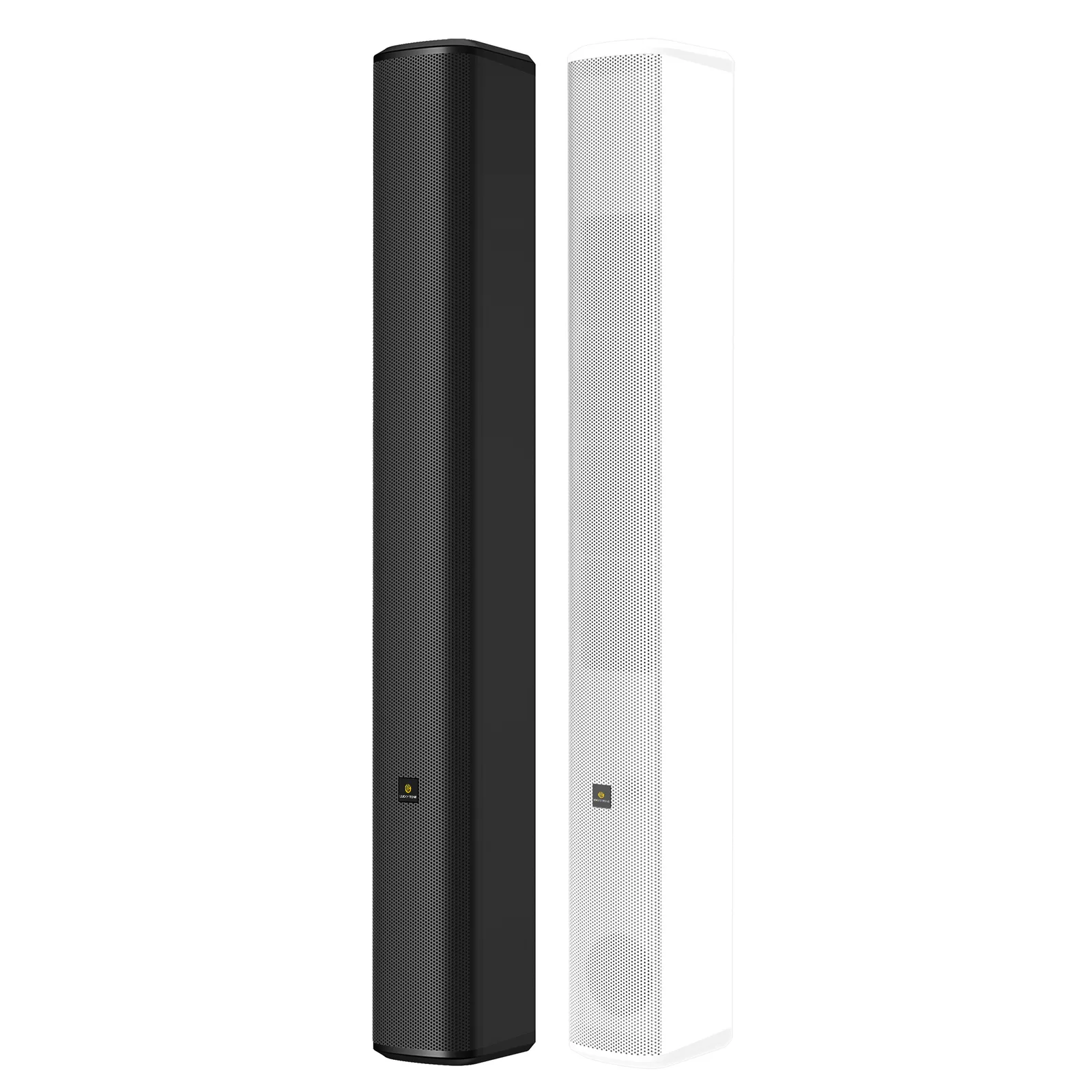

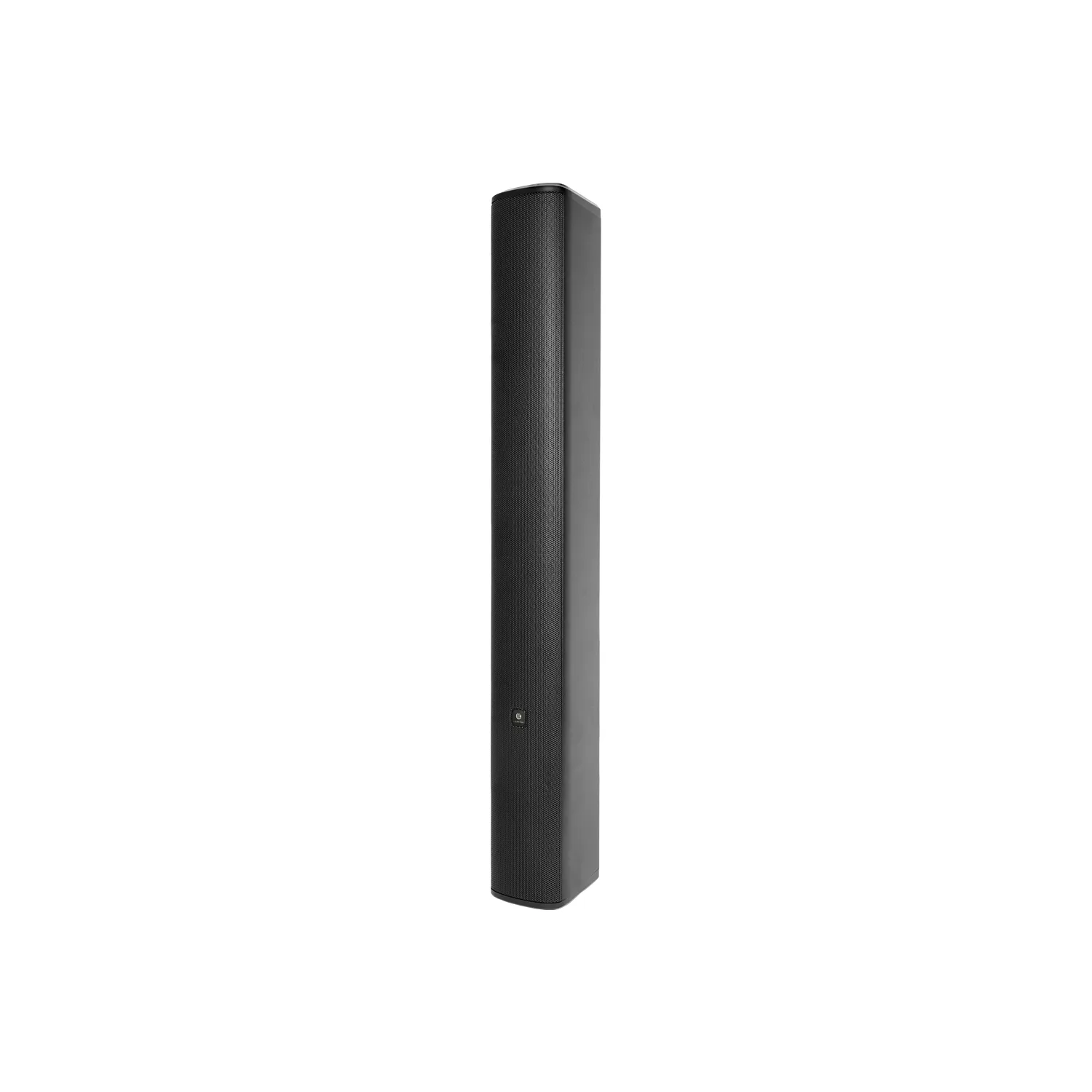

4×2.5″ Neodymium Magnet Array Acoustic Column Speaker

أنظمة الصوت / سماعات الفئة الاحترافية

4×2.5″ Neodymium Magnet Array Acoustic Column Speaker

الكود: EC-4 25LB V2 / LA- 4 25L W  V2 / LA- 4 25B V2 / LA- 4 25 W  V2

Description: Designed for small to medium-sized video conference rooms, digital courtrooms, conference centers, auditoriums, lecture halls, and other speech amplification systems, as well as background music systems in various architectural spaces such as churches, museums, transportation hubs, and public areas like squares. It addresses the issue of traditional conference room speakers being too large and unsightly when wall-mounted. Features: 4×2.5″high-performance neodymium magnetic drive units. The array column speaker features a streamlined design with a newly designed Apple Gray color, which is understated, steady, aesthetically pleasing, and practical. It is suitable for sound amplification in various architectural spaces, delivering beautiful and pleasing sound quality. The column speaker uses an ABS hybrid aluminum alloy reinforced enclosure, making it sturdy and durable. The newly designed round waveguide port creates a unique low-frequency cardioid dispersion, producing crisp and pleasant high tones, naturally rich and full midtones, and deep bass. Optional installation accessories include a level device, handle device, and antivibration rubber pads.

المواصفات الفنية

Model
EC-4 25LB V2 / LA- 4 25L W  V2 / LA- 4 25B V2 / LA- 4 25 W  V2
Operating Modes
/ / Switchable between music/speech mode
Input
4ohm / 100V/70V/4ohm
Rated Power
100W@4ohm (400W Peak) / 100W@4ohm (400W Peak) 60W/30W/15W/7.5W@100V 30W/15W/7.5W/3.7W@70V
Sensitivity (1m/1W)
94dB / 92dB
Max. SPL
111dB / 109dB
Frequency Range
106Hz~20kHz
Enclosure Material
ABS hybrid aluminum alloy reinforced enclosure
Grille Material
Metal mesh
Dispersion Angle
Vertical 20°, Horizontal 120°
Mounting Holes
2 x M6
Mounting System
Adjustable angle mounting bracket or narrow wall distance mounting bracket
Speaker Driver
4×2.5″ neodymium magnetic
Color
Black/White

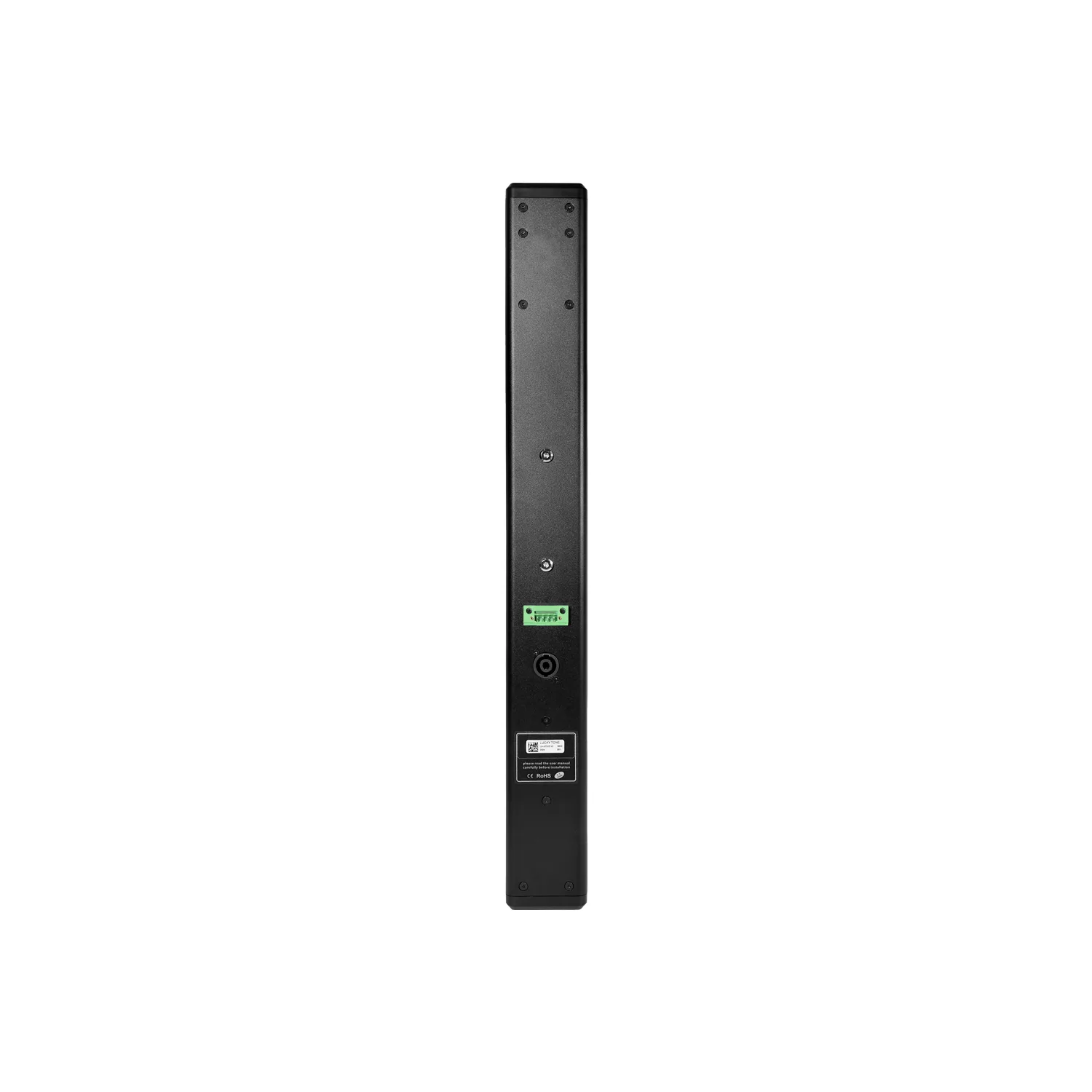

Connection Method
1 x NL4 socket (+1/-1) + 1 x Phoenix terminal
Dimensions (HxWxD)
670 x 80 x 100mm
Net Weight
2.2kg / 3kg
Gross Weight
6.5kg(2PCS/CTN) / 7.1kg(2PCS/CTN)

الاستخدامات

4×2.5″high-performance neodymium magnetic drive units.
The array column speaker features a streamlined design with a newly designed Apple
Gray color, which is understated, steady, aesthetically pleasing, and practical. It is suitable for sound amplification in various architectural spaces, delivering beautiful and pleasing sound quality.
The column speaker uses an ABS hybrid aluminum alloy reinforced enclosure, making it sturdy and durable.
The newly designed round waveguide port creates a unique low-frequency cardioid dispersion, producing crisp and pleasant high tones, naturally rich and full midtones, and deep bass.
Optional installation accessories include a level device, handle device, and antivibration rubber pads.
