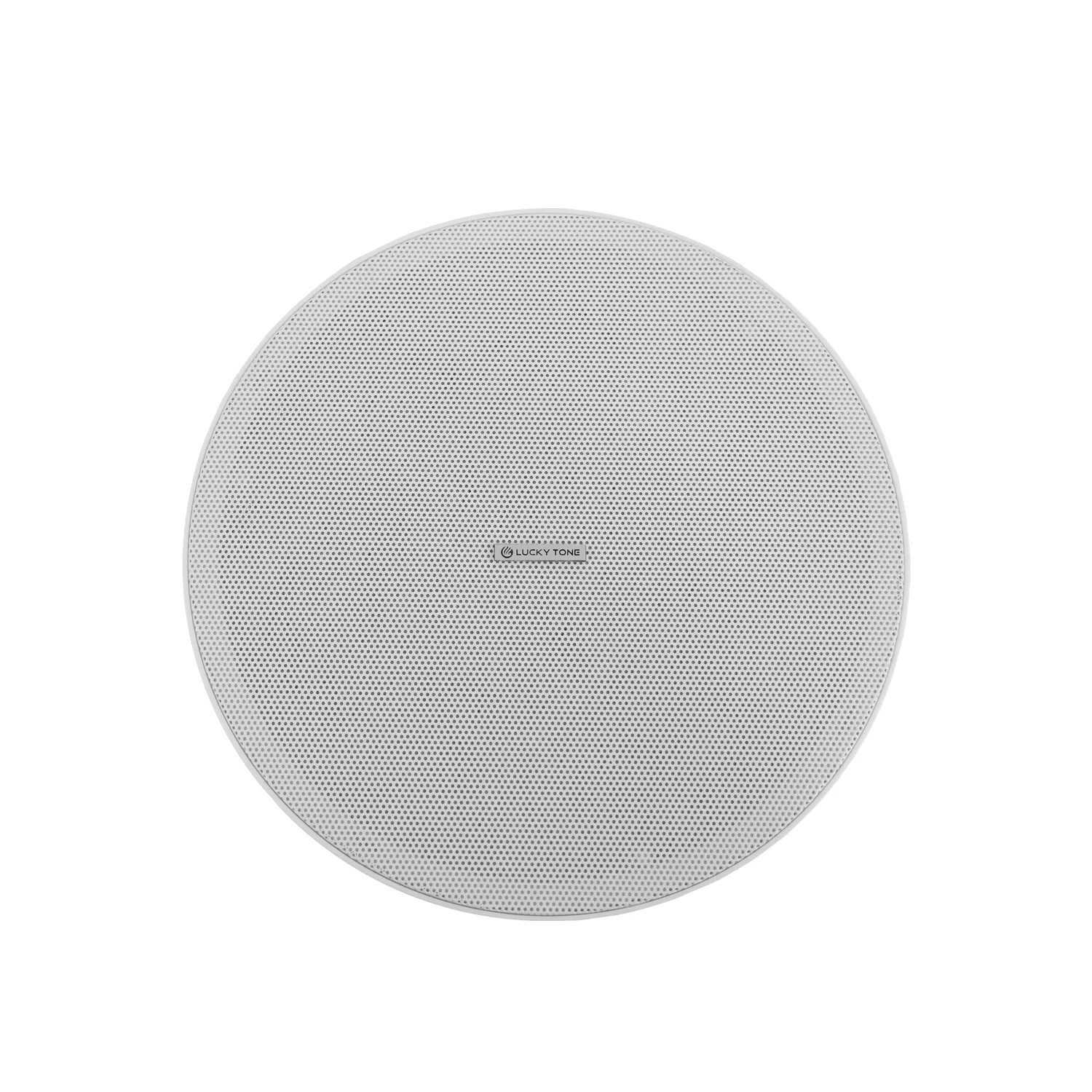

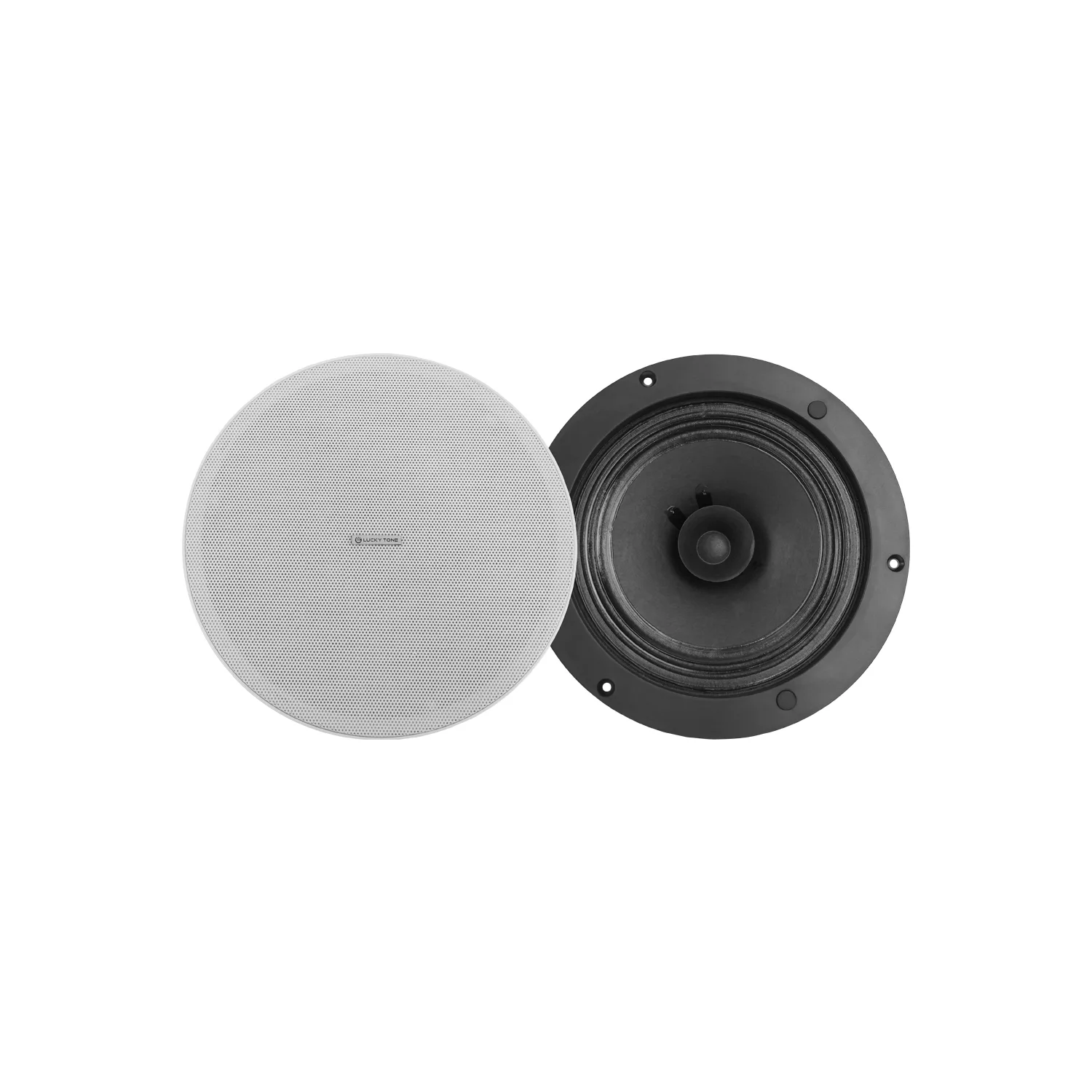

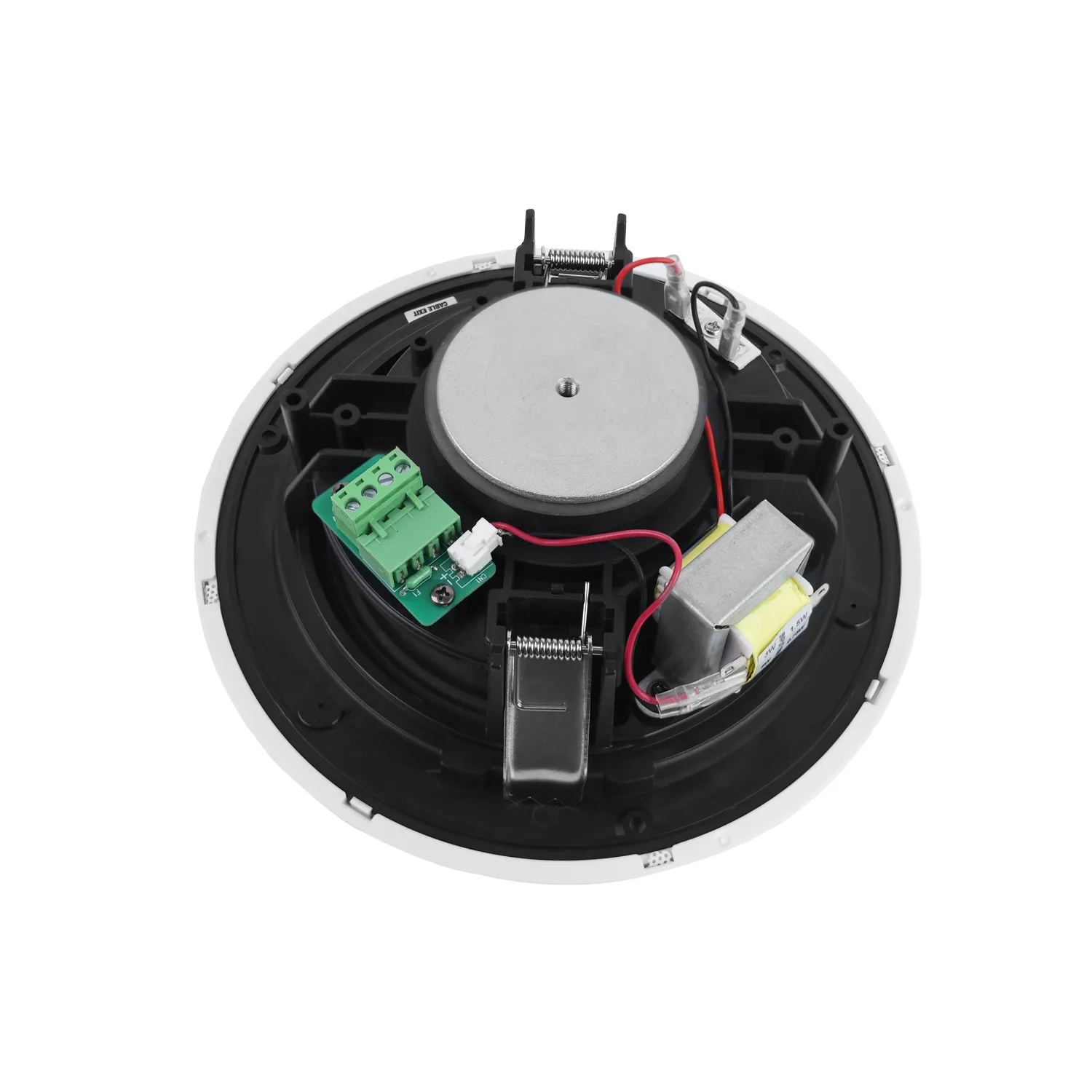

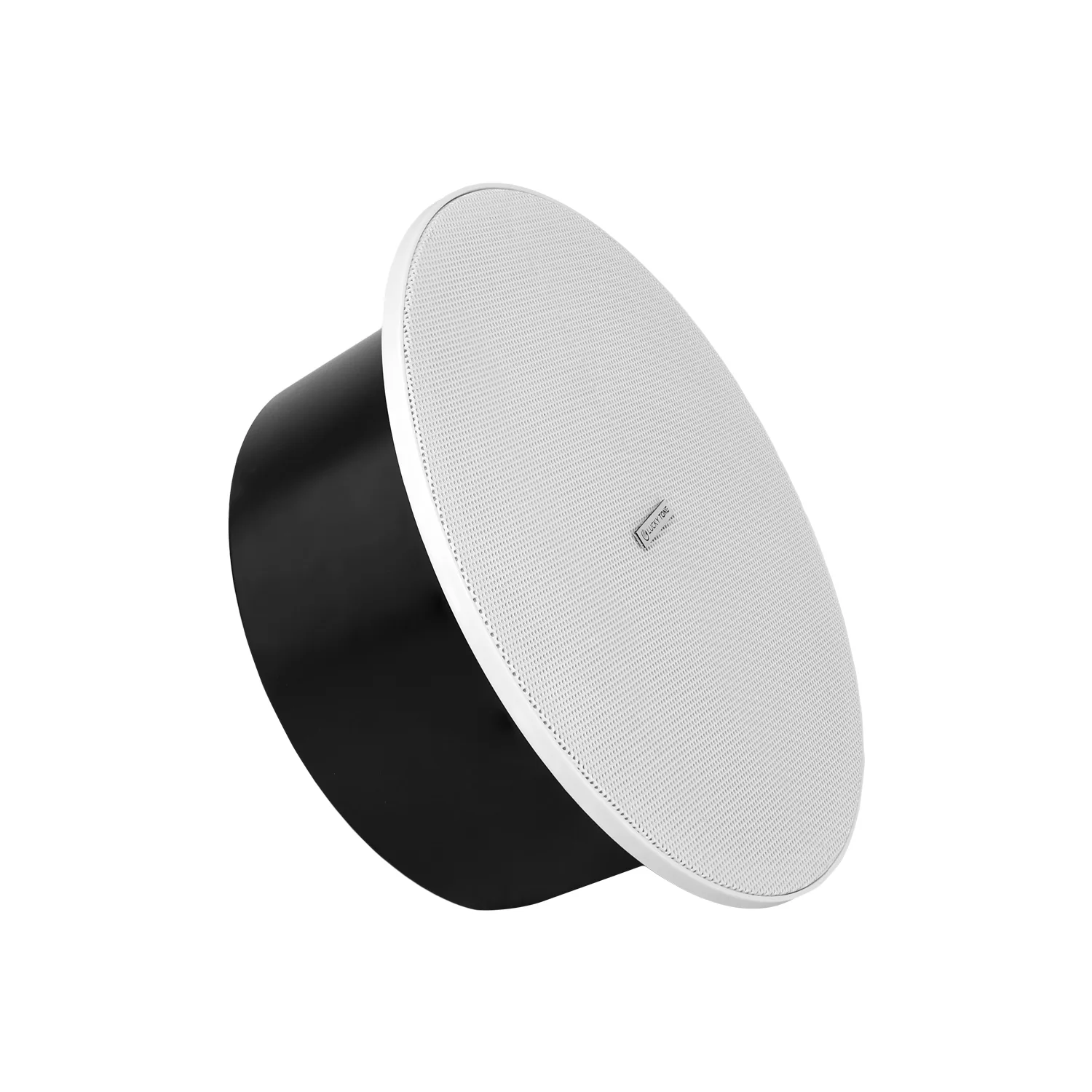

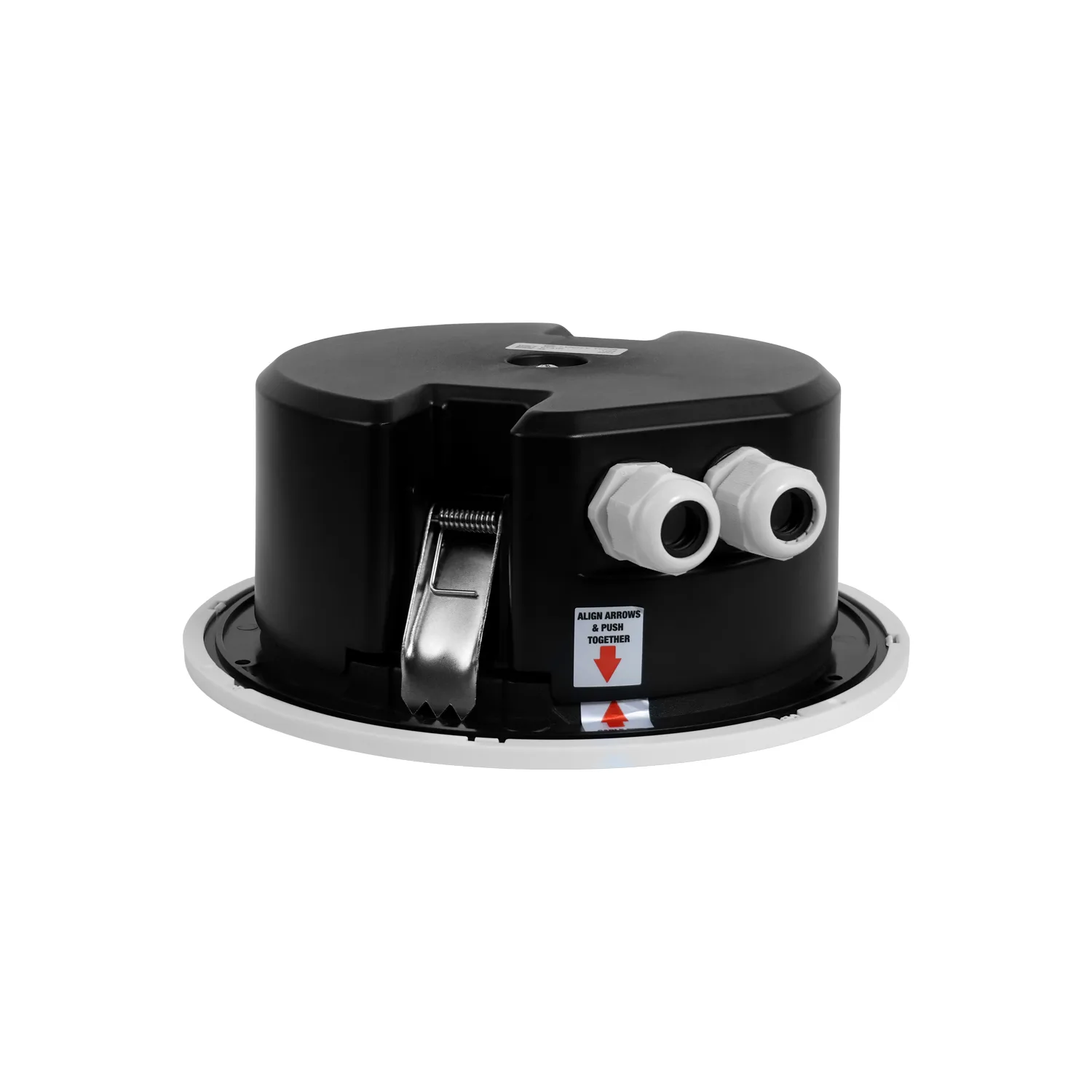

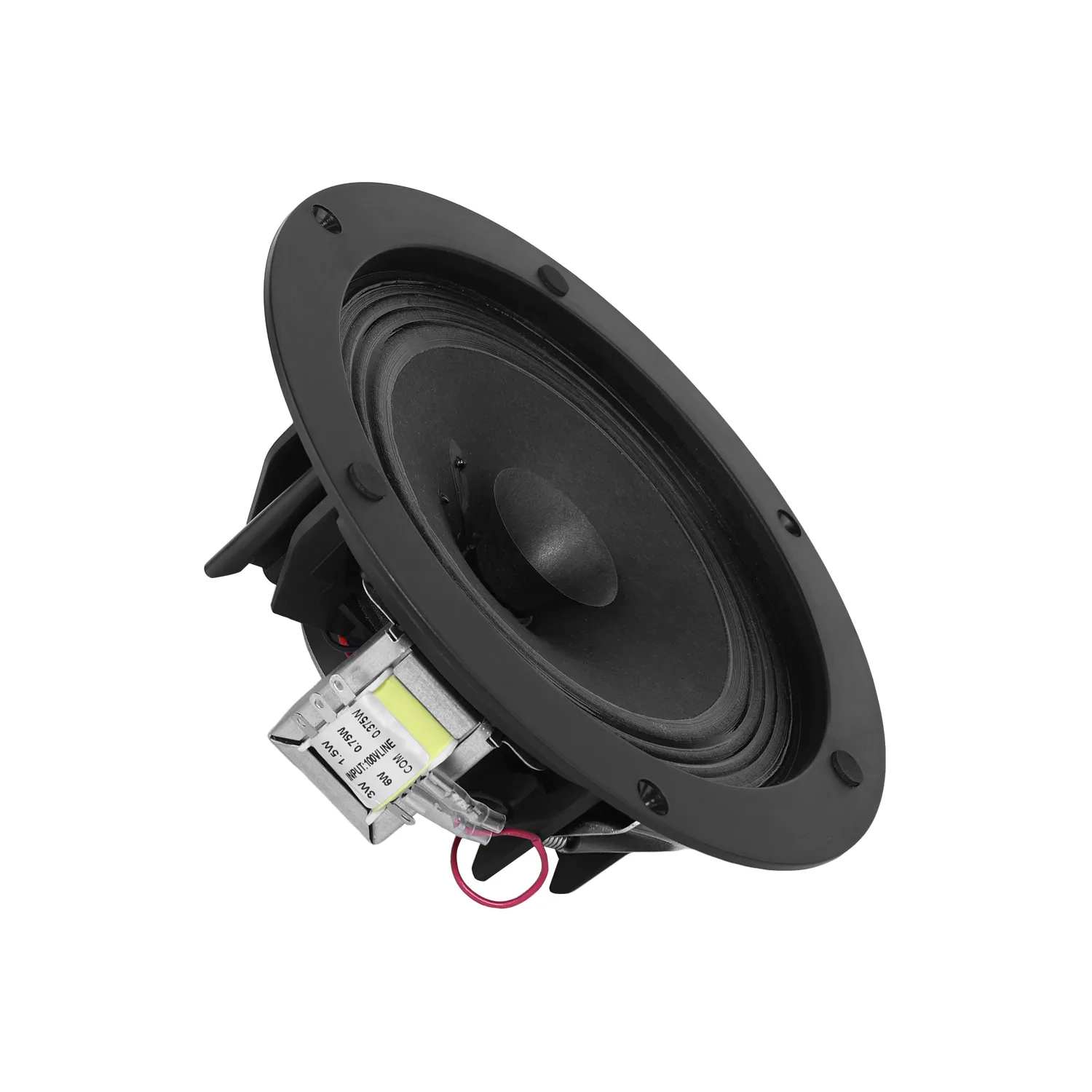

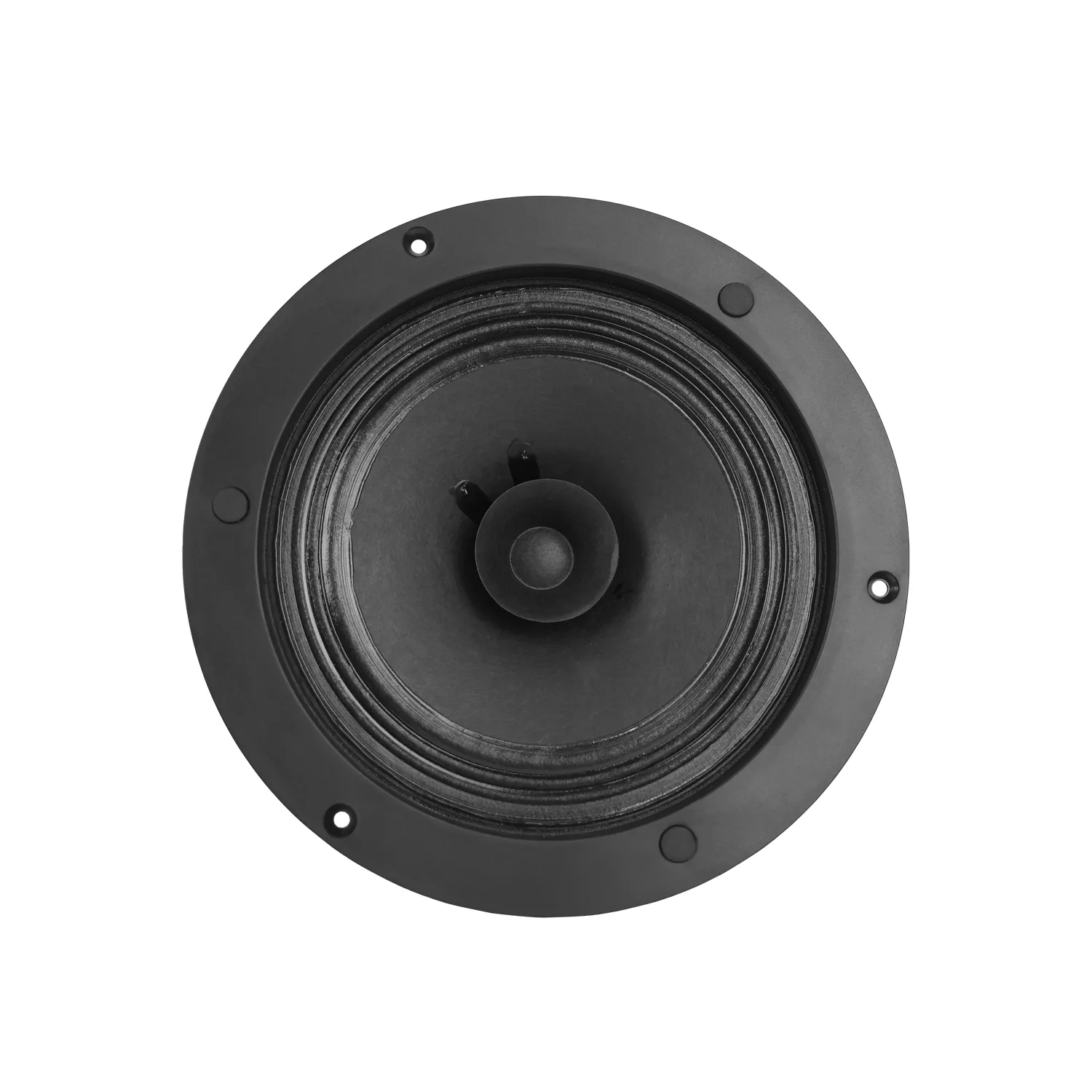

6″ Twin Cone Marine Ceiling Speaker
الكود: EC-6YH
Features Equipped with a 6W multi-tapped 100V transformer. Delivers outstanding speech clarity. Features a high-quality driver engineered for BGM and general paging use. Includes spring-loaded mounting clips with additional optional screw fixing points. Comes with a 4-way pluggable terminal block for loop-in and loop-out wiring. Integrated thermal fuse for added protection. Stylish aluminium mesh grille with seamless snap-fit design.
المواصفات الفنية
Model
EC-6YH
Power Taps
0.375,0.75,1.5,3,6W@100V
SPL (1W@1m)
92dB
Frequency Response
100Hz – 17kHz
Connection
4 way terminal block
Cable Entry
PG13.5 (10-12mm OD cable)
Grille Material
ABS surround, aluminium mesh grille
Driver Construction
Paper twin cone (treated)
Ceiling Cutout
Dia 170mm
Grille Diameter
Dia 207mm
Mounting Depth
73mm (including ceiling tile thickness)
Weight
0.9kg
Color
White
الاستخدامات
Equipped with a 6W multi-tapped 100V transformer.
Delivers outstanding speech clarity.
Features a high-quality driver engineered for BGM and general paging use.
Includes spring-loaded mounting clips with additional optional screw fixing points.
Comes with a 4-way pluggable terminal block for loop-in and loop-out wiring.
Integrated thermal fuse for added protection.
Stylish aluminium mesh grille with seamless snap-fit design.
