أنظمة الصوت / أنظمة نداء عام مدمجة

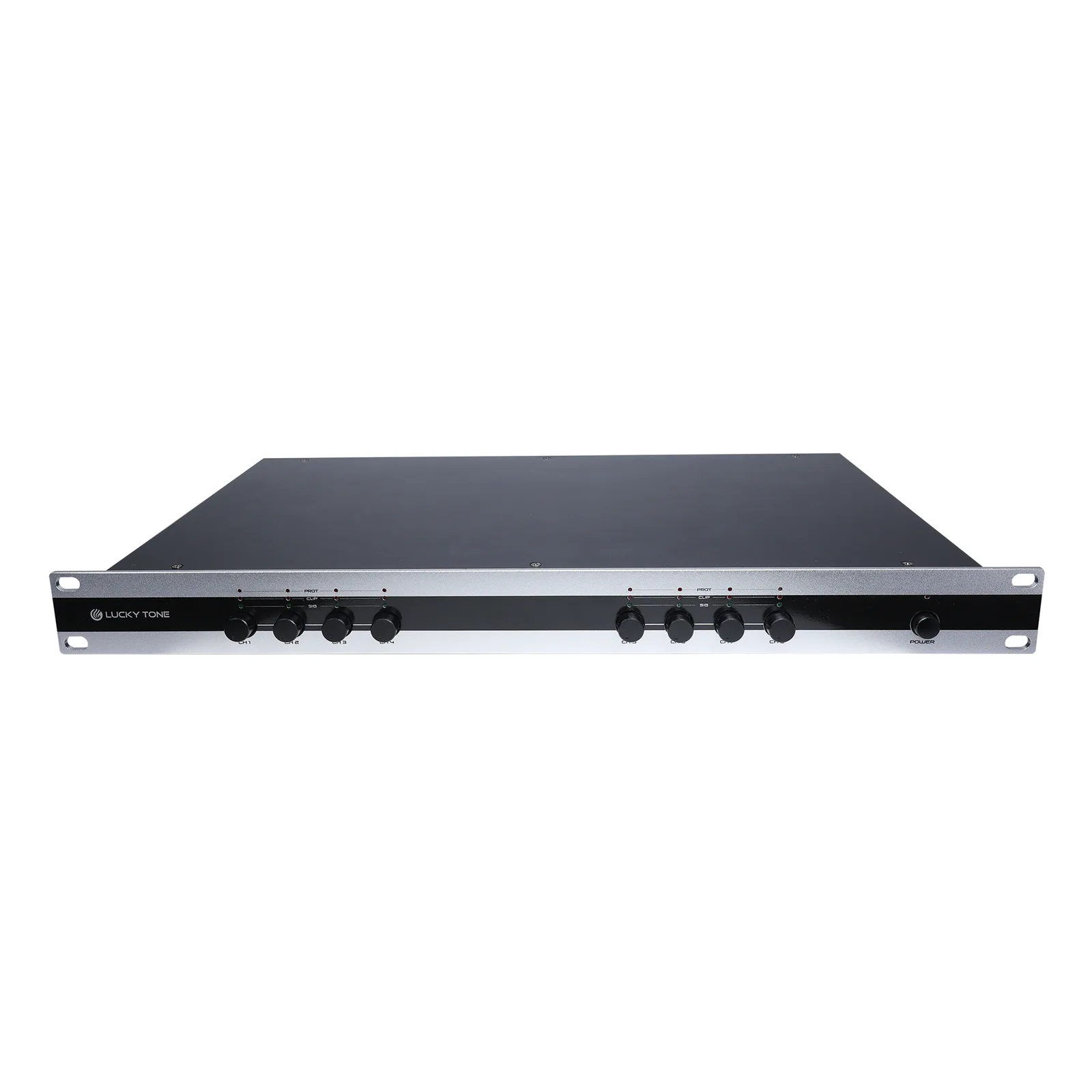

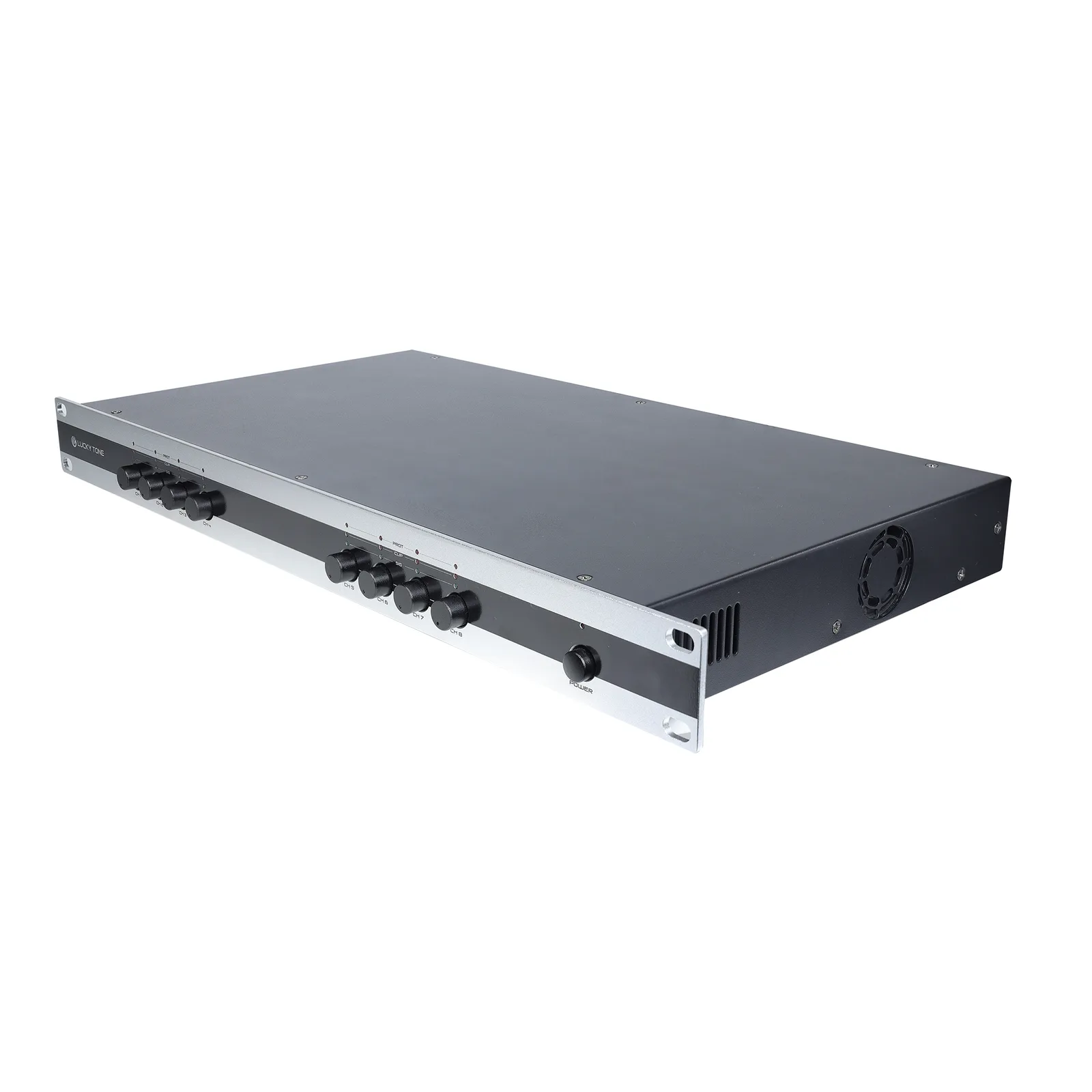

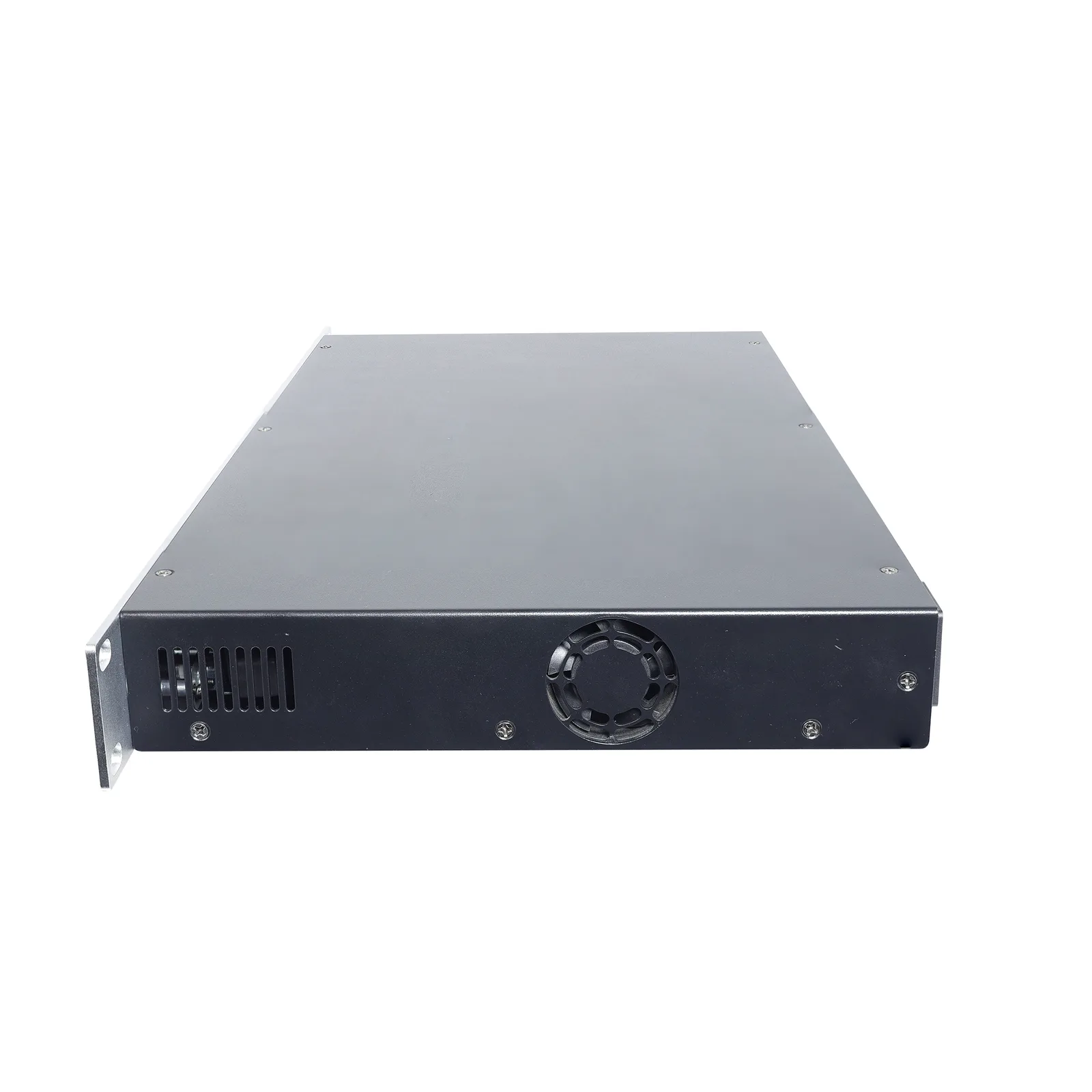

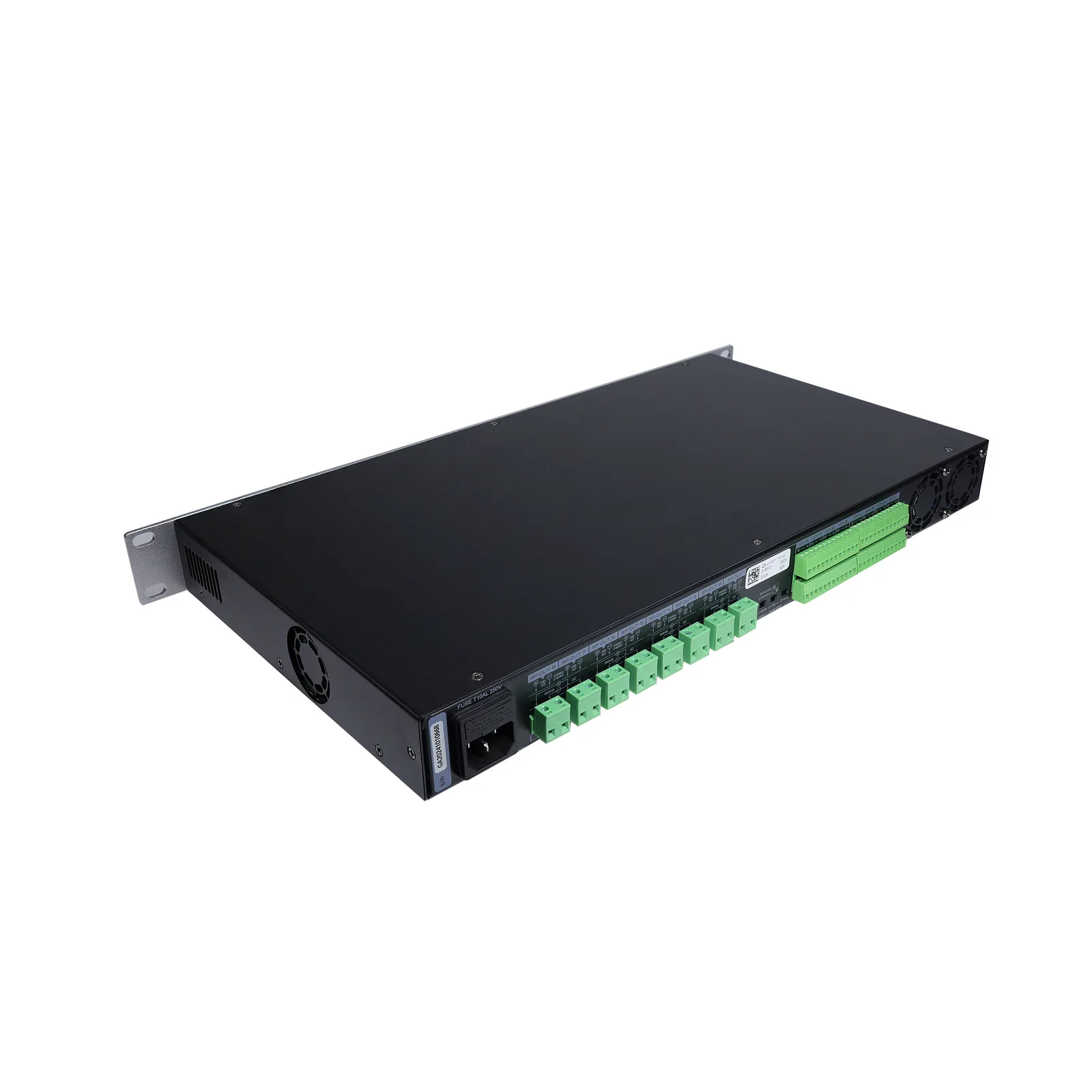

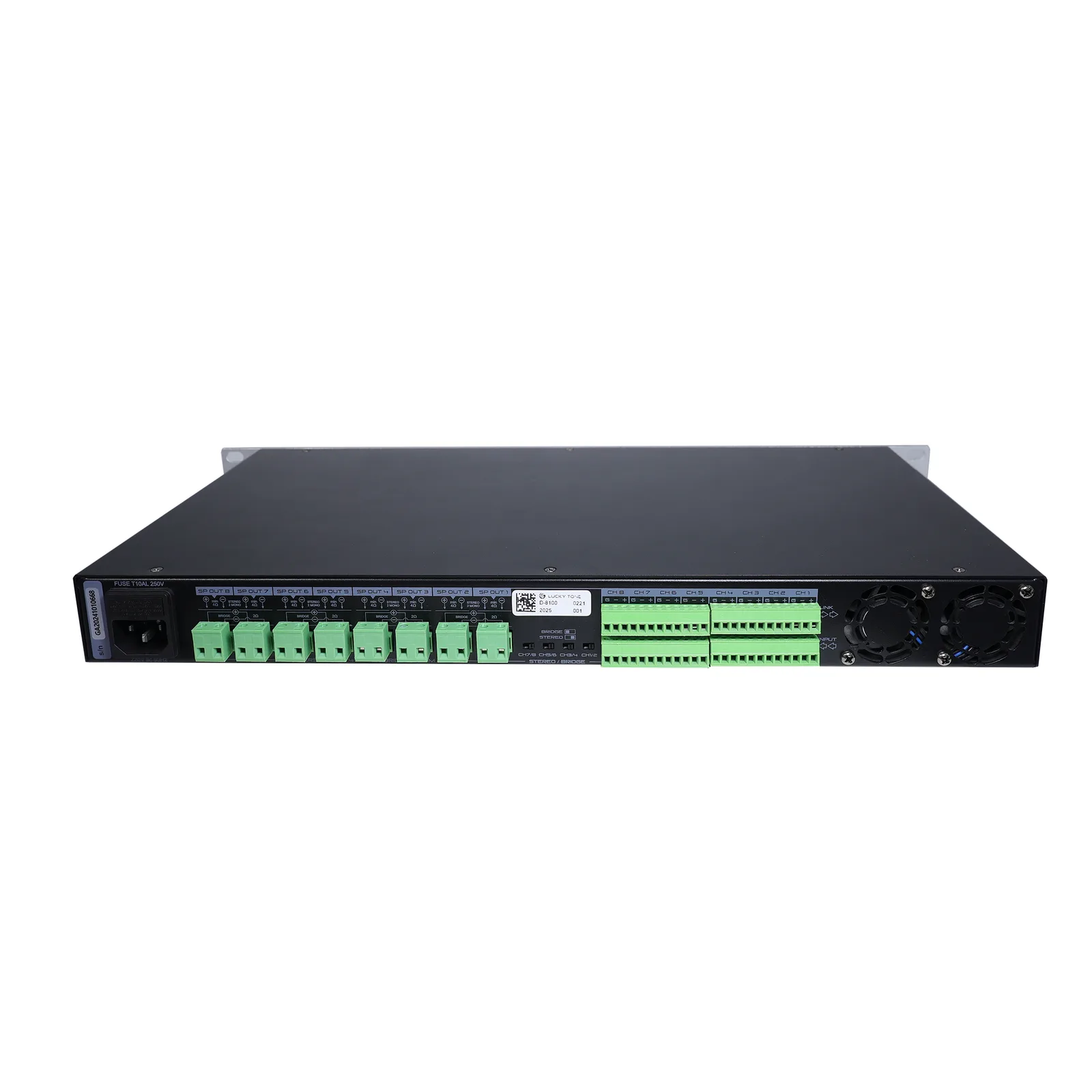

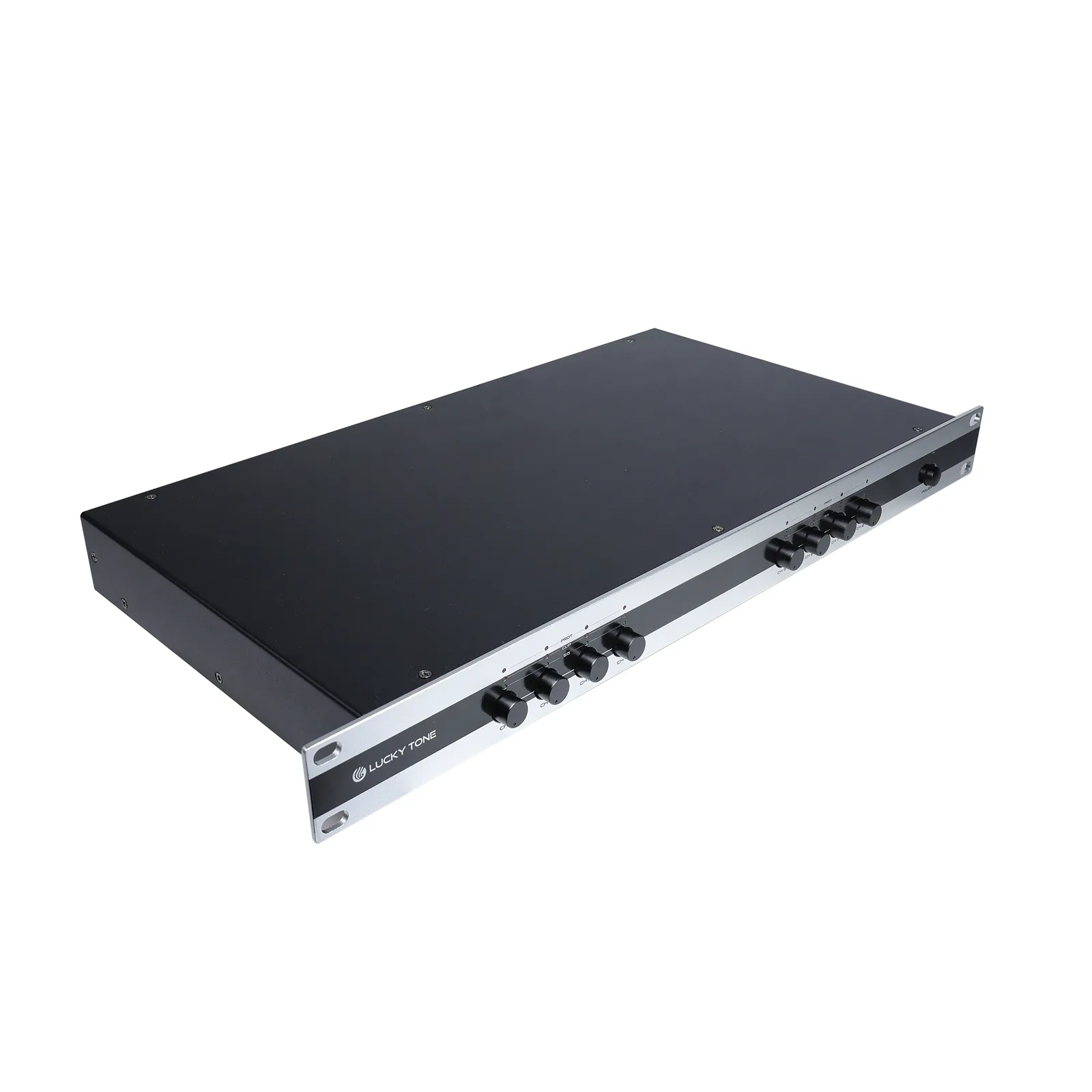

8-Channel Power Amplifier
الكود: EC-8100
Flexible Bridge/Stereo Modes : Supports 4×300W at 4&8Ω bridged, offering high-power performance for various applications. 8-Channel Link Outputs : Allows seamless signal distribution and easy system expansion. 8-Channel Balanced Line Inputs : Ensures superior audio quality with balanced line inputs, reducing noise and interference. Wide Frequency Response : Delivers high-fidelity sound across a broad frequency range for optimal audio clarity. Stereo Sound : Delivers high-fidelity audio with precise stereo imaging. Compact & Lightweight : 1U rack size with a lightweight build for effortless installation and transport.
المواصفات الفنية
Model
EC-8100
Output Power
8*100W at 8ohm stereo, 8*200W at 4ohm stereo,
or 4*300W at 4&8ohm bridged
Input Sensitivity
0.775V
Frequency Response
20Hz-20KHz +1/-1dB
Input Impedance
20KΩ (BALANCE)/10KΩ (UNBALANCE)
THD+N
<0.1% @ 8Ω 1KHz
Channel Isolation (1KHz)
60dB(8Ω/1KHz)
Operating Voltage
AC 220V, 50Hz/60Hz
Power Fuse
10A
SNR(A-weighted)
10dB
Protection Circuit
Overload, Overheat, Short Circuit
Product Dimensions
482x237x44mm
Net Weight
4.28Kg
الاستخدامات
Flexible Bridge/Stereo Modes : Supports 4×300W at 4&8Ω bridged, offering high-power performance for various applications.
8-Channel Link Outputs : Allows seamless signal distribution and easy system expansion.
8-Channel Balanced Line Inputs : Ensures superior audio quality with balanced line inputs, reducing noise and interference.
Wide Frequency Response : Delivers high-fidelity sound across a broad frequency range for optimal audio clarity.
Stereo Sound : Delivers high-fidelity audio with precise stereo imaging.
Compact & Lightweight : 1U rack size with a lightweight build for effortless installation and transport.
