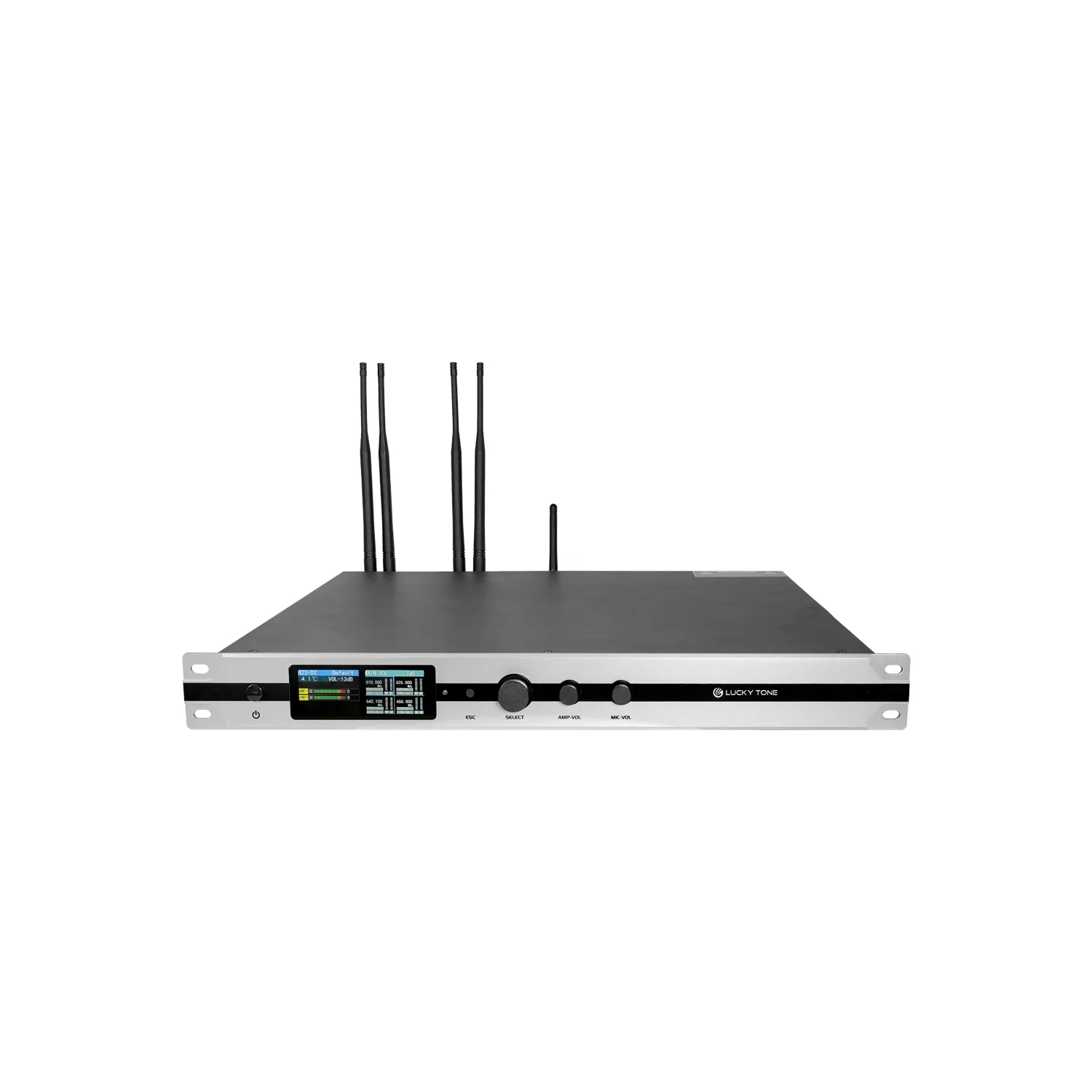

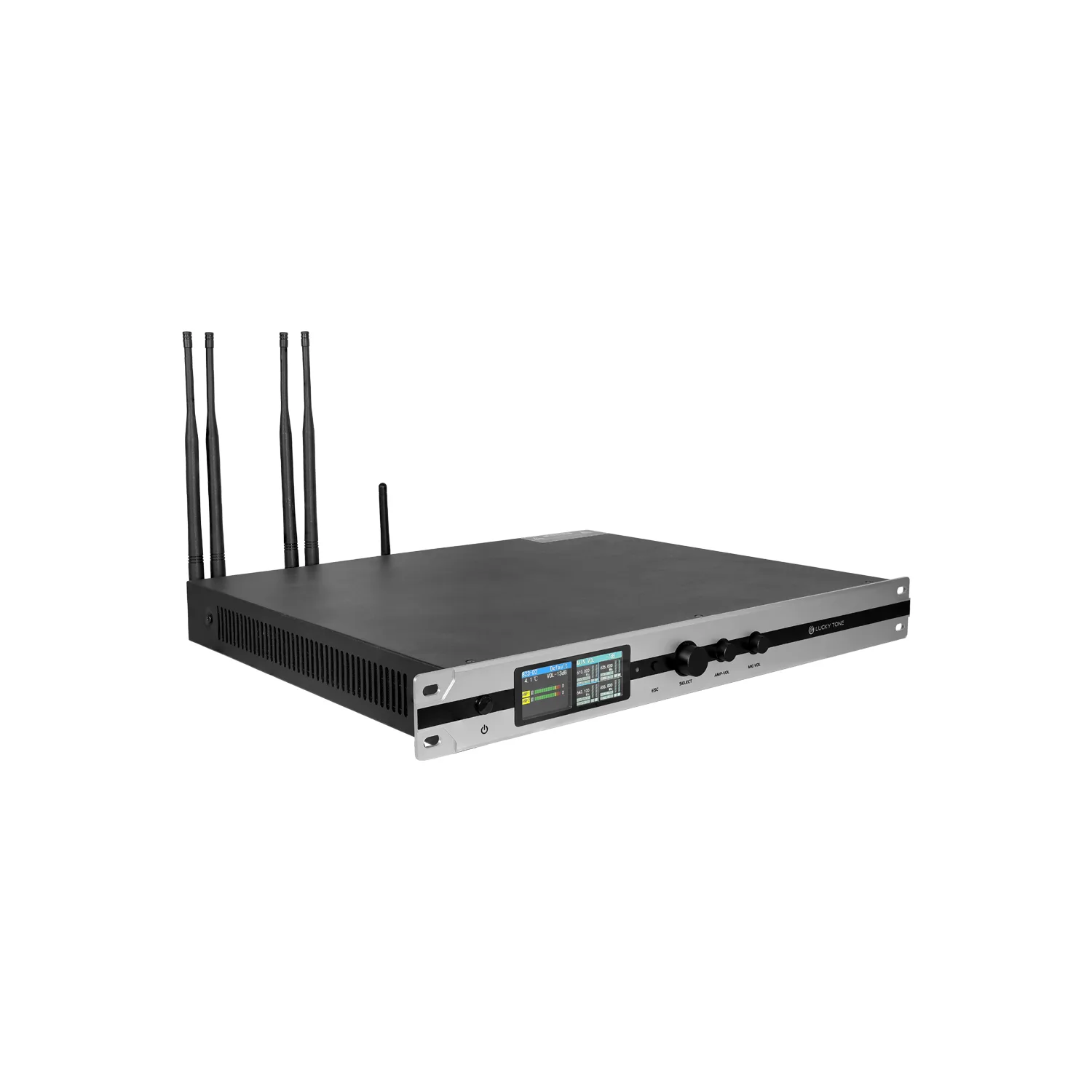

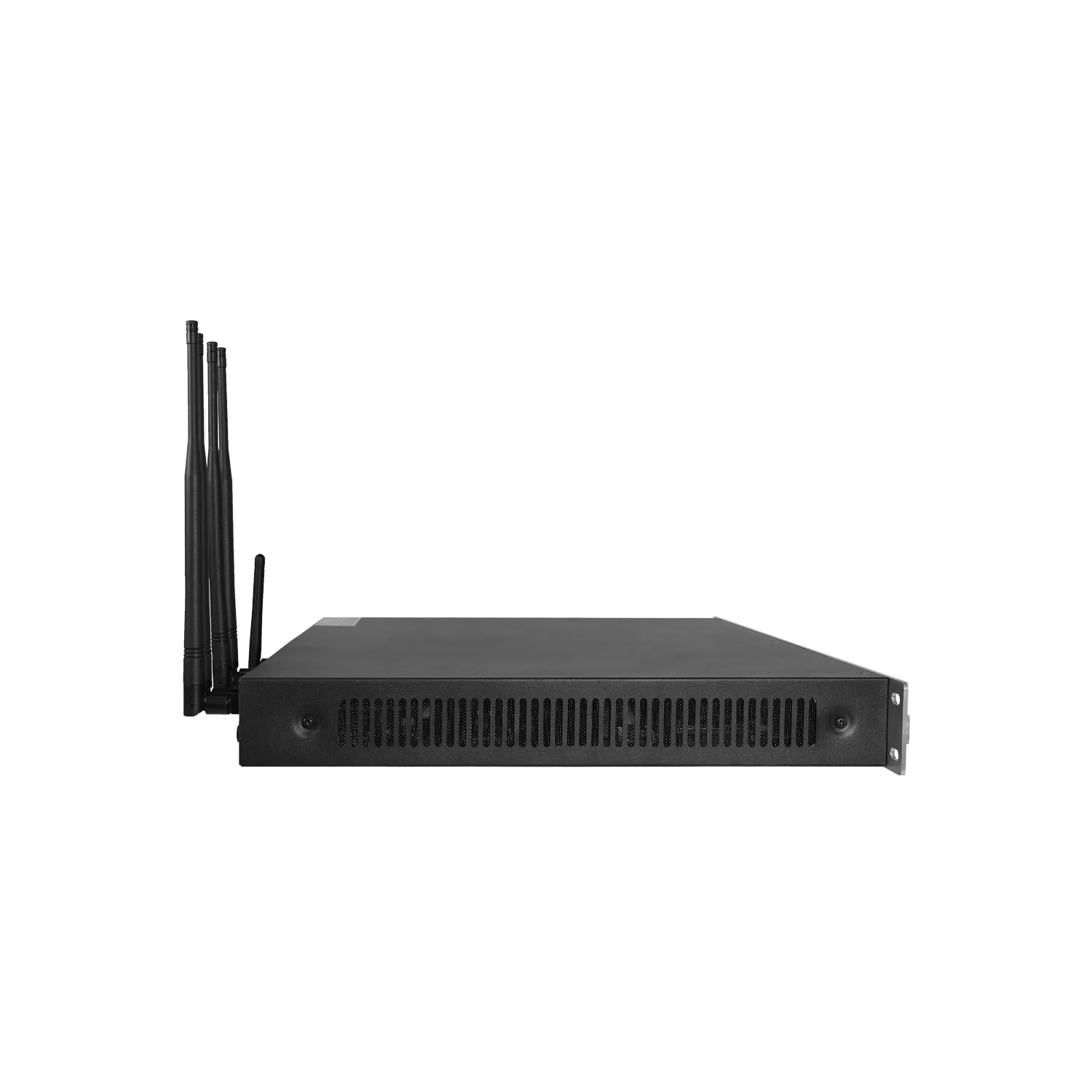

All-in-one Mixer Power Amplifier with Dante and DSP

أنظمة الصوت / أنظمة نداء عام مدمجة

All-in-one Mixer Power Amplifier with Dante and DSP

الكود: EC-2300V2+ / MA-2300DV2+

Description The MA-2300V2+/MA-2300DV2+ is a all-in-one DSP amplifier featuring 16 inputs and 10 outputs, designed for high-quality sound reinforcement in a variety of settings, such as medium to large conference rooms, courts, auditoriums, and multi-functional halls. This unit integrates advanced DSP technologies, including feedback suppression, AI noise cancellation (ANC), echo cancellation (AEC), automatic gain control (AGC), auto mixing, matrix mixing, equalization, crossover, delay, compressor, and limiter. Features TCP/IP network control for managing multiple devices Supports multiple control methods: TCP/IP, RS232, RS485, USB Support computer software control Supports both playback and recording through stereo USB soundcard transmission Built-in Bluetooth technology for wireless streaming 48V phantom power on Input Channels With color LCD display, allowing easy configuration of device name, presets, IP settings and input/output volume Easily switch between Free Matrix and Bridge Mode for flexible audio routing and management. Supports camera tracking with PELCO-D, PELCO-P, and VISCA protocols, enabling automatic camera control based on voice activation. Save and recall up to 60 preset configurations for quick setup and adjustments. Seamlessly integrates with up to four WM-2300U true diversity wireless handheld microphones for versatile sound reinforcement(optional) Lucky Tone MA-2300V2+ MA-2300DV2+ WM-2300U datasheet 20241230

استفسار واتساب طلب عرض سعر تحميل الكتالوج

المواصفات الفنية

Model
EC-2300V2+ / MA-2300DV2+
Type
2-CH Amplifier with DSP / 2-CH Amplifier with DSP and Dante
Dante Audio Channel
/ / 2
Output Power
2*450W@4Ω or 2*300W@8Ω, bridged 1*900W@8Ω, Switchable to bridged 1*900W@100V, 1*612W@70V

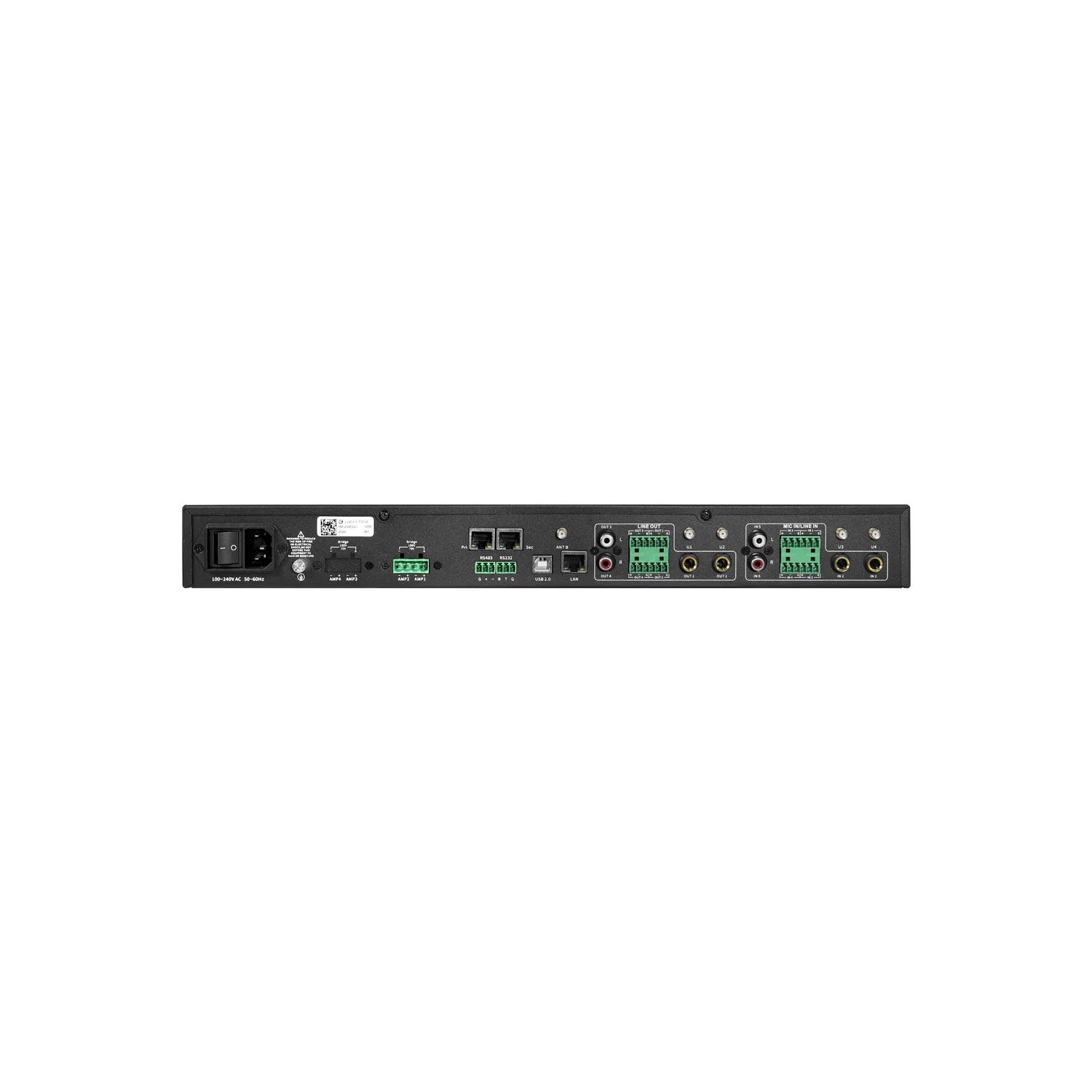

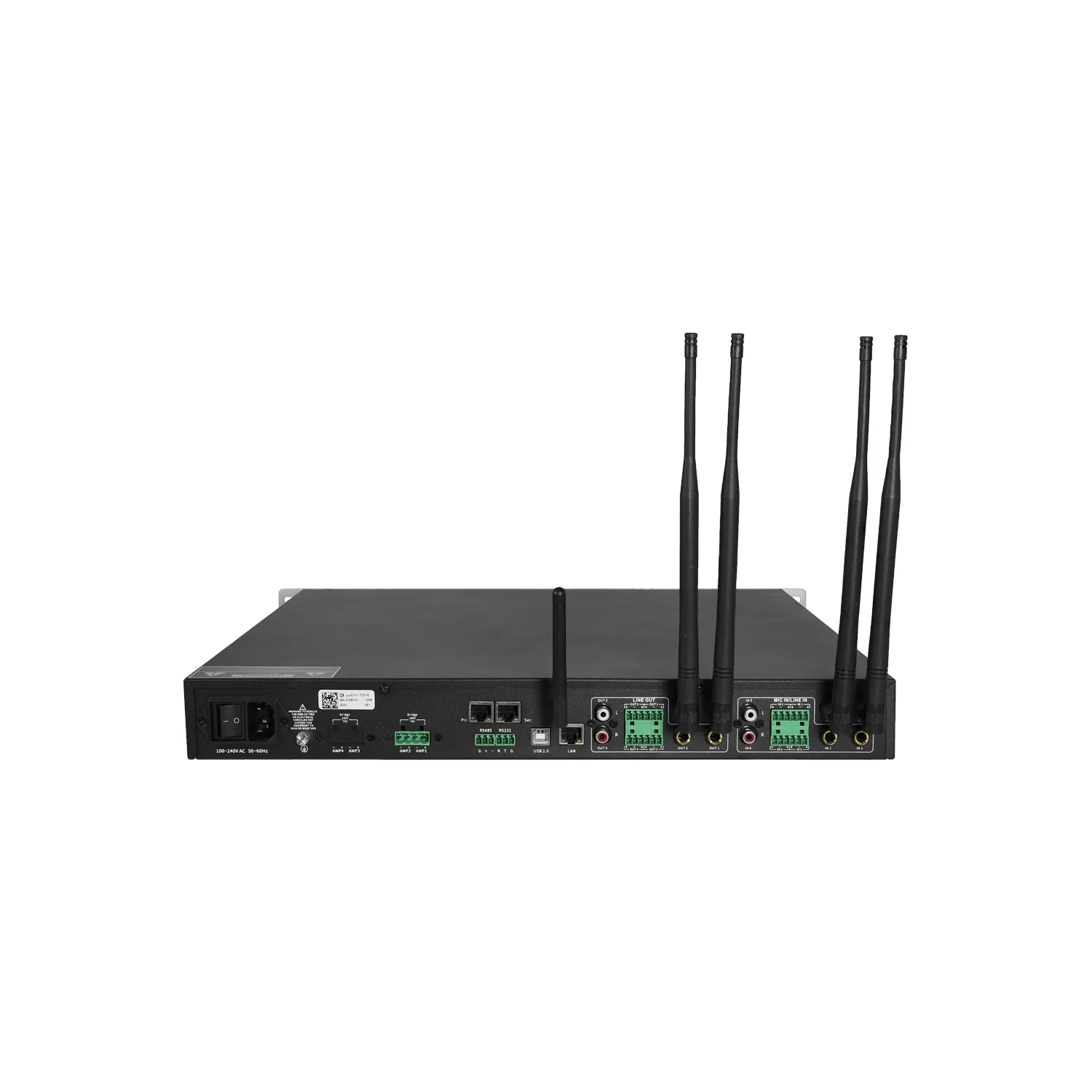

Input Interfaces
2 x 6.35mm (TRS) Inputs; 4 x 3.81mm Phoenix Inputs; 2 x RCA Inputs
Output Interfaces
2 x 6.35mm (TRS) Outputs; 4 x 3.81mm Phoenix outputs; 2 x RCA Outputs
Auto Mixing/Matrix Mixing
14 in 8 out / 16 in 10 out
Max. Input/Output Level (Balanced)
17dBu/5.484V
Sampling
48k / 24bit
PEQ
8 bands per input and output
Gain
-60 to +15dB adjustable per channel
Delay
0~2000ms adjustable per input and output channel
Power Supply
AC100~240 50/60Hz, 7.5A
Net Weight
5.8kg/6kg
Product Size
490*380*52mm

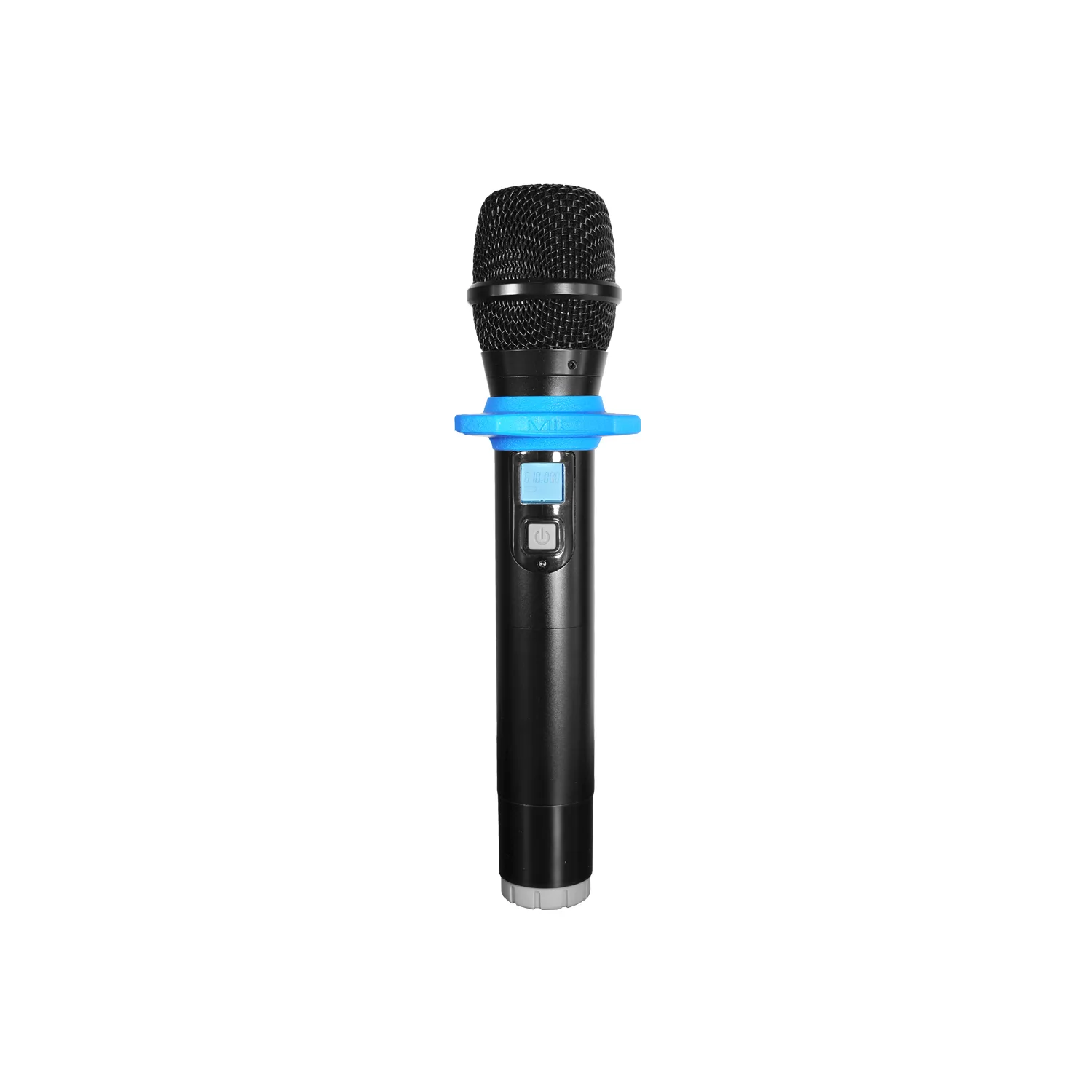

Wireless UHF Handheld Microphone
WM-2300U
Microphone Channel
4
Frequency Range
Channel A: 610–624.7 MHz (50 channels) Channel B: 625–639.7 MHz (50 channels) Channel C: 640–654.7 MHz (50 channels) Channel D: 655–669.7 MHz (50 channels)

الاستخدامات

TCP/IP network control for managing multiple devices
Supports multiple control methods: TCP/IP, RS232, RS485, USB
Support computer software control
Supports both playback and recording through stereo USB soundcard transmission
Built-in Bluetooth technology for wireless streaming
48V phantom power on Input Channels

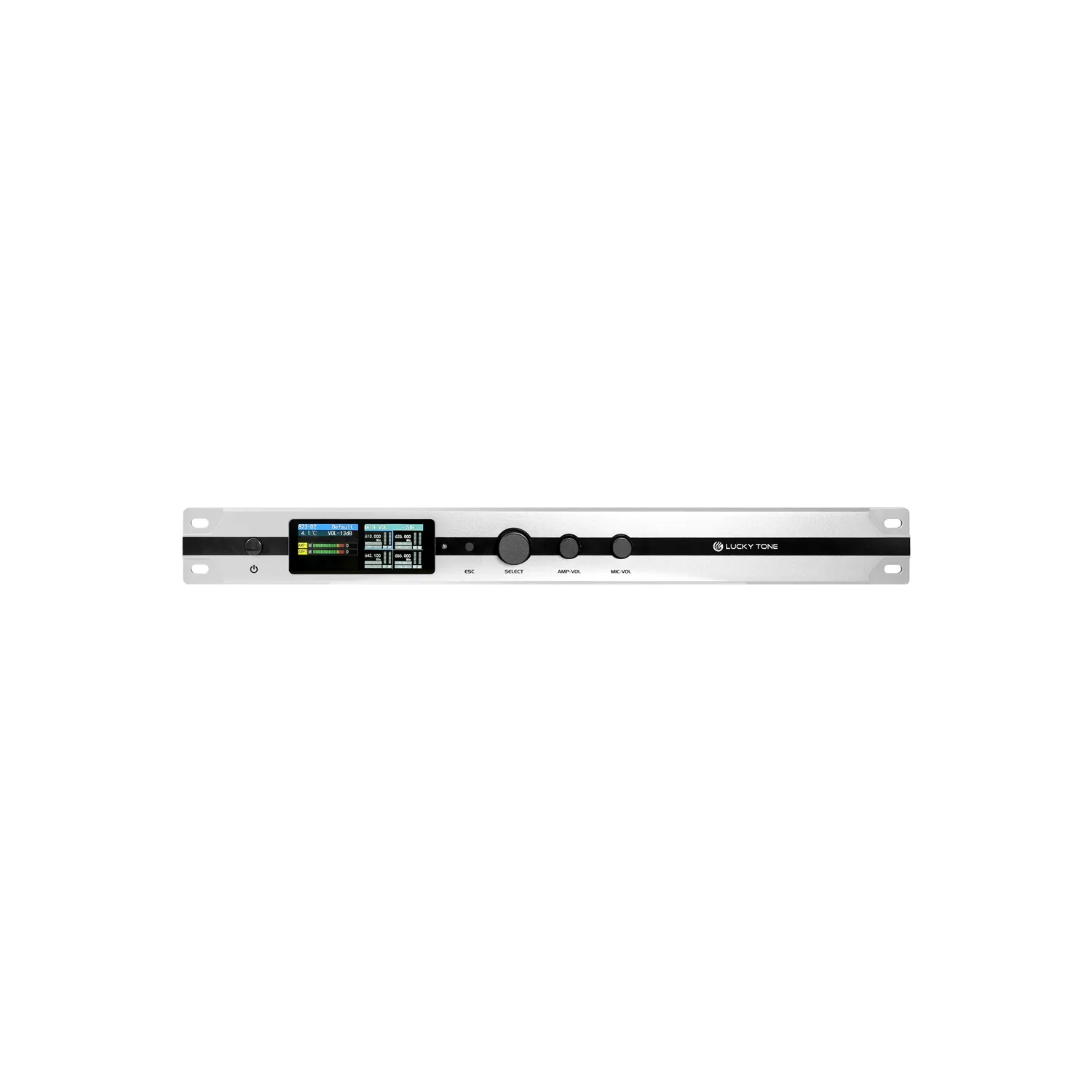

With color LCD display, allowing easy configuration of device name, presets, IP settings and input/output volume
Easily switch between Free Matrix and Bridge Mode for flexible audio routing and management.
Supports camera tracking with PELCO-D, PELCO-P, and VISCA protocols, enabling automatic camera control based on voice activation.
Save and recall up to 60 preset configurations for quick setup and adjustments.

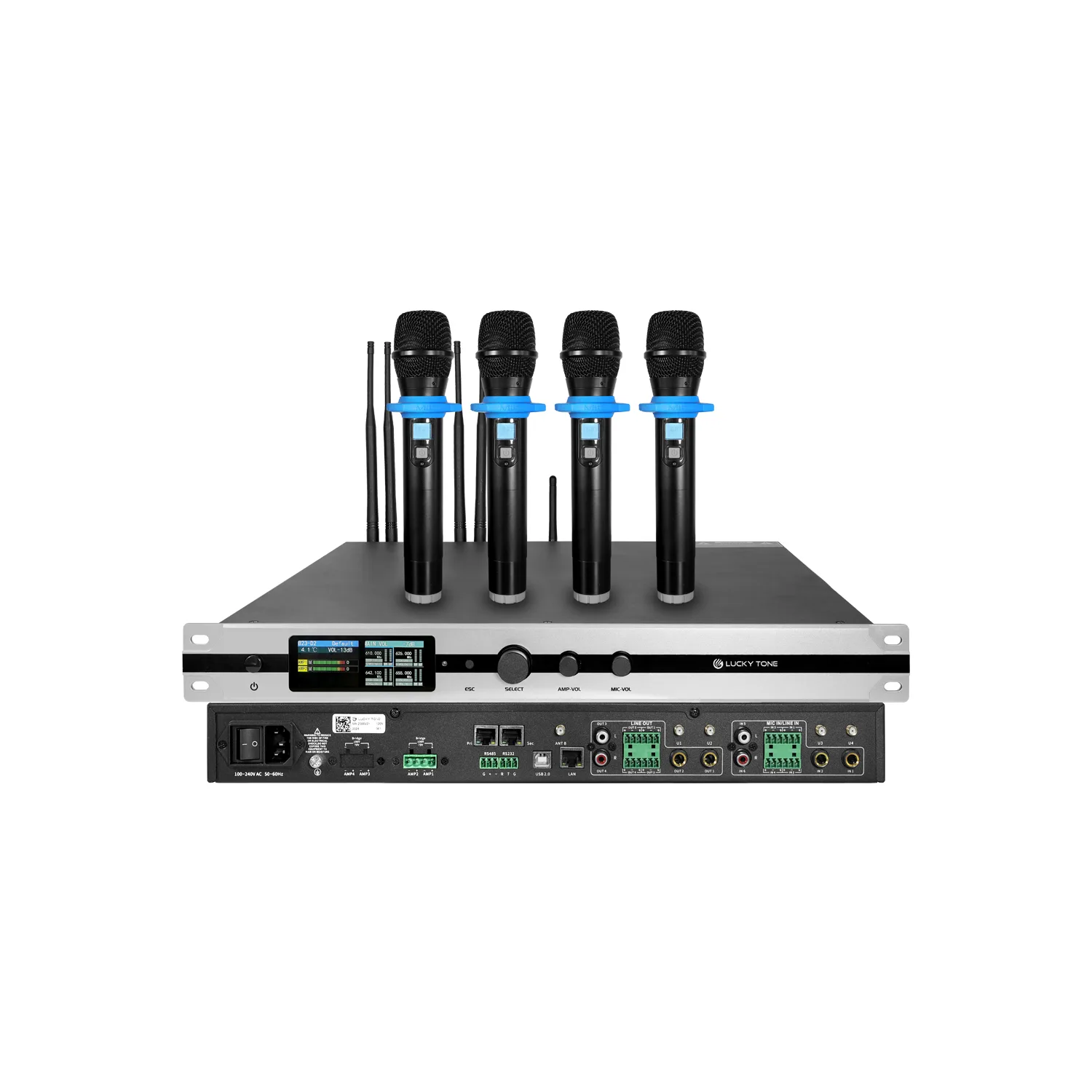

Seamlessly integrates with up to four WM-2300U true diversity wireless handheld microphones for versatile sound reinforcement(optional) Lucky Tone MA-2300V2+ MA-2300DV2+ WM-2300U datasheet 20241230
