Directional Condenser Microphone

أنظمة الصوت / الميكروفونات

Directional Condenser Microphone

الكود: EC-HG MIC4

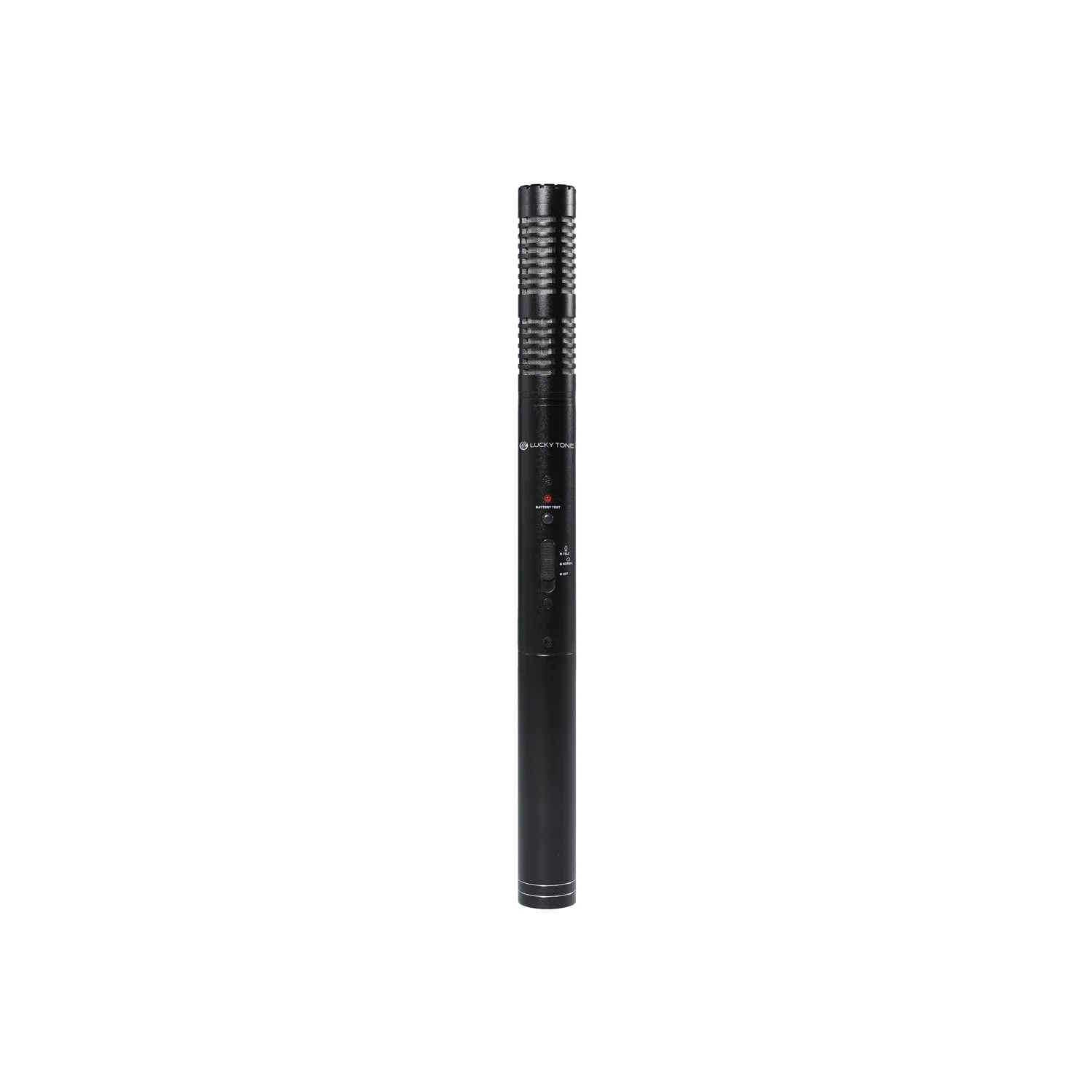

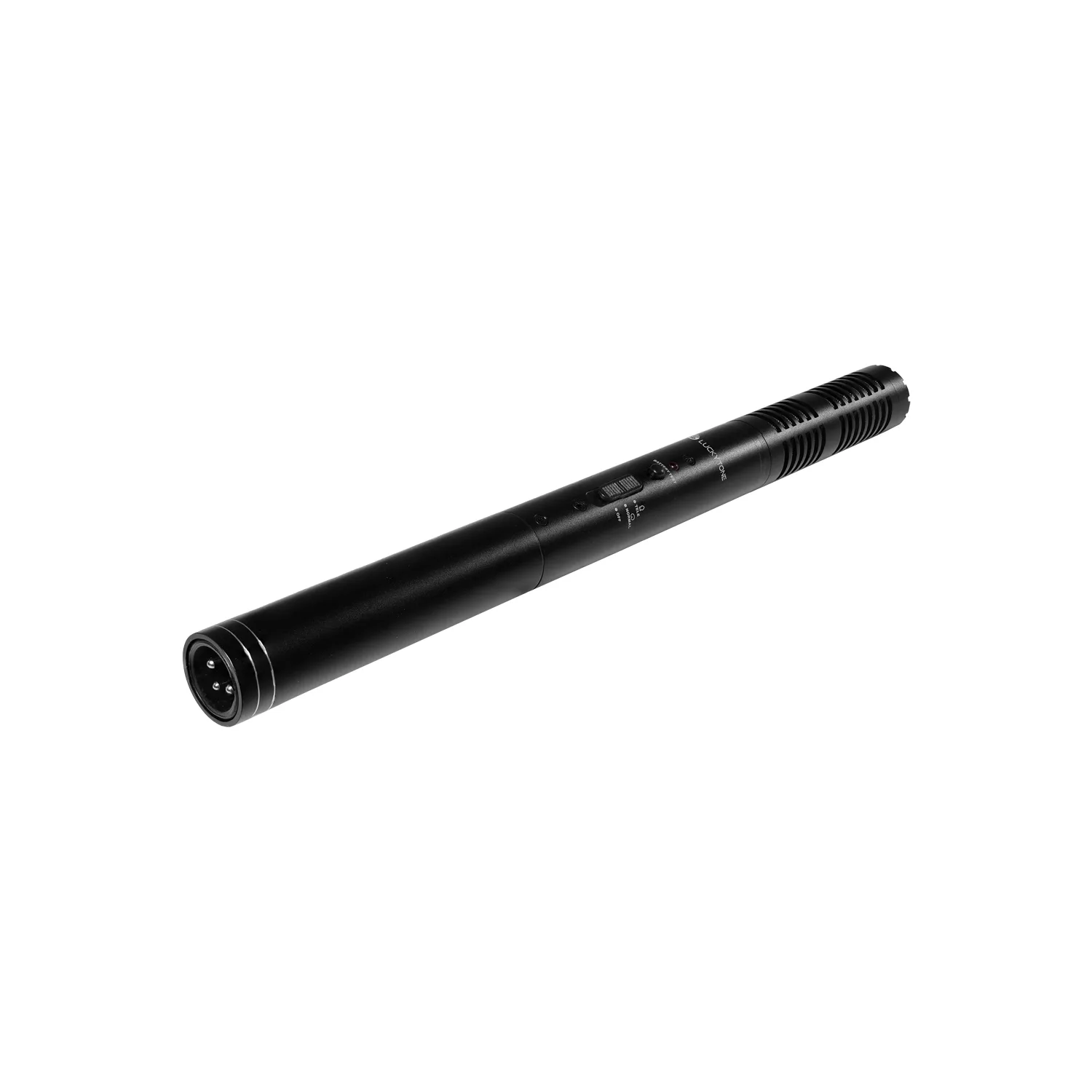

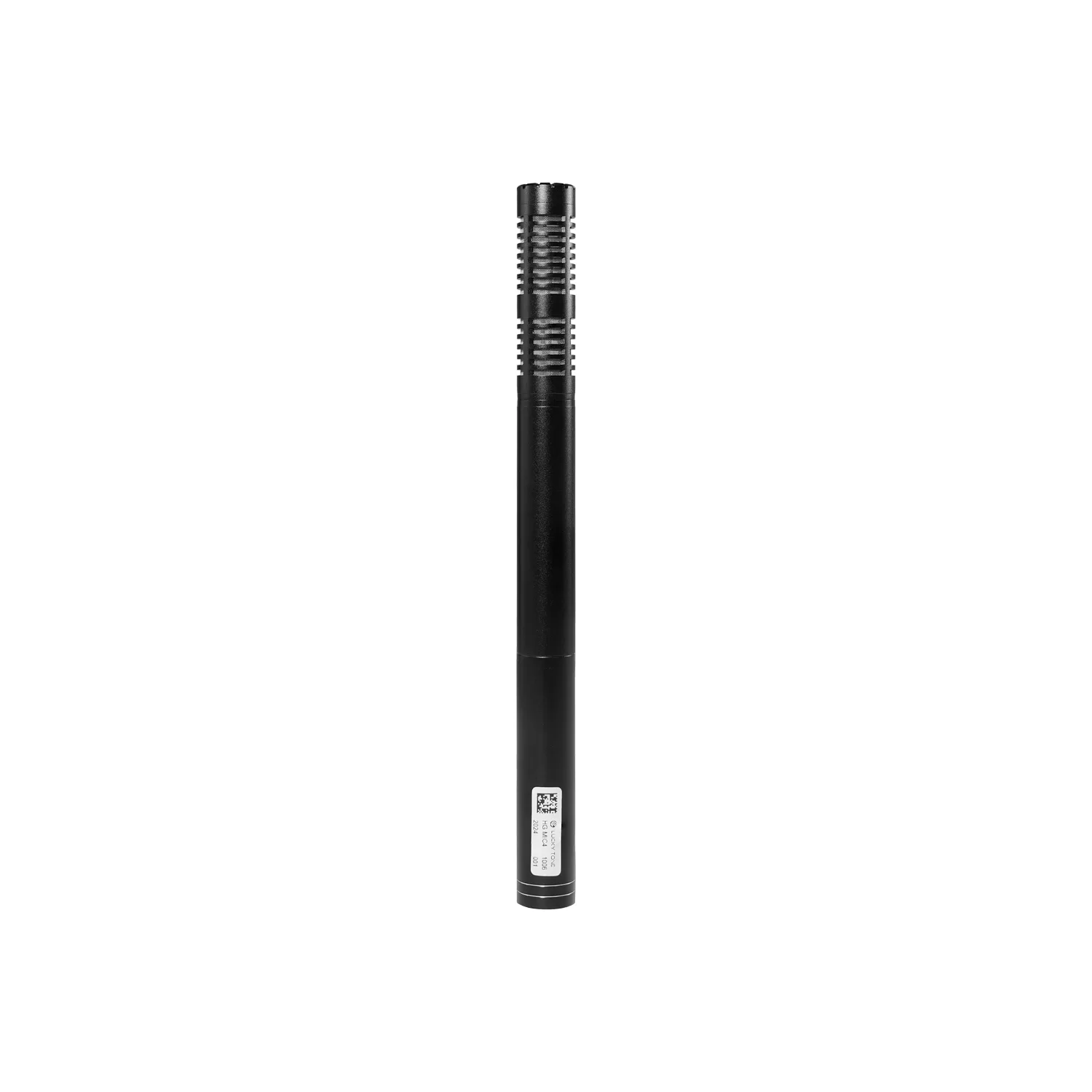

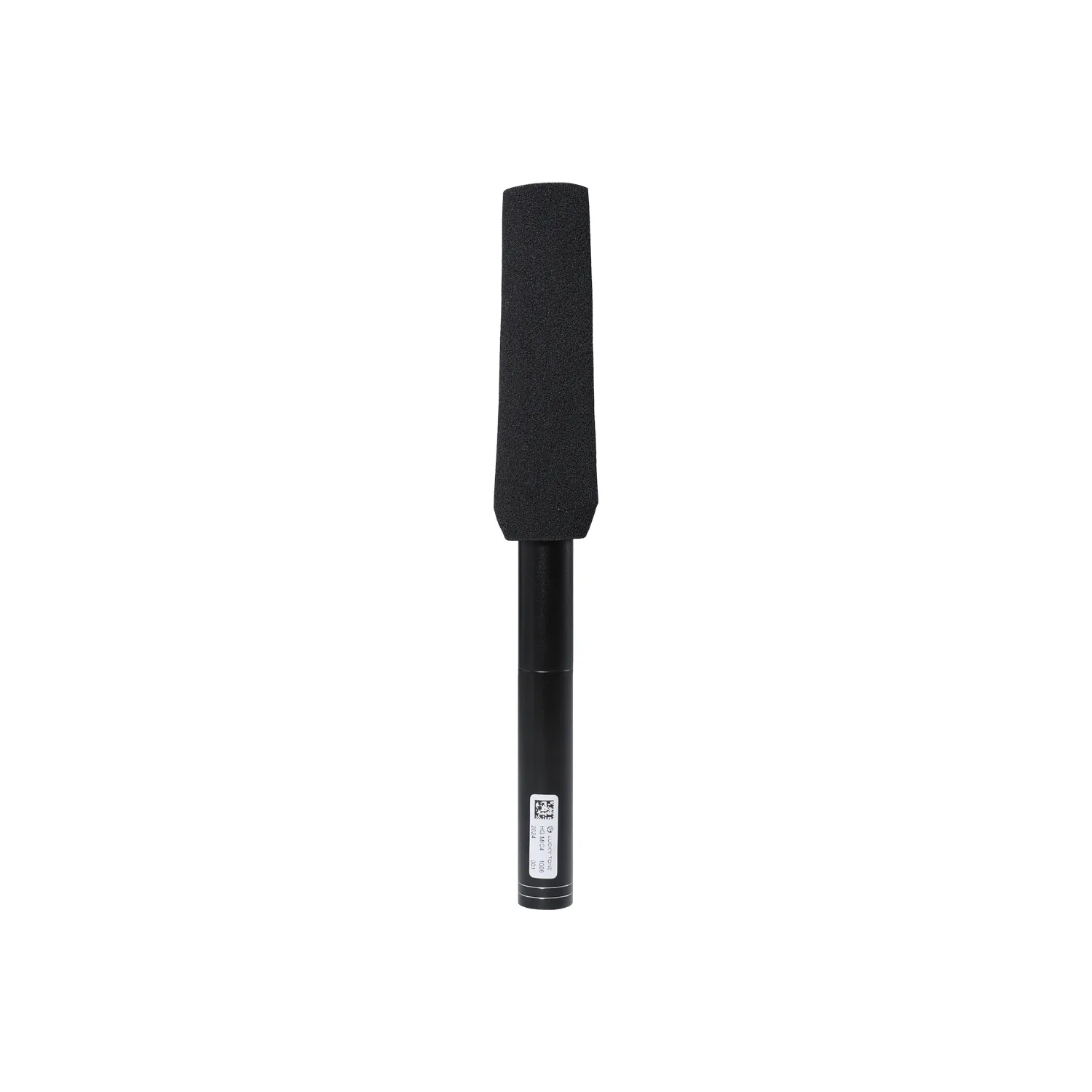

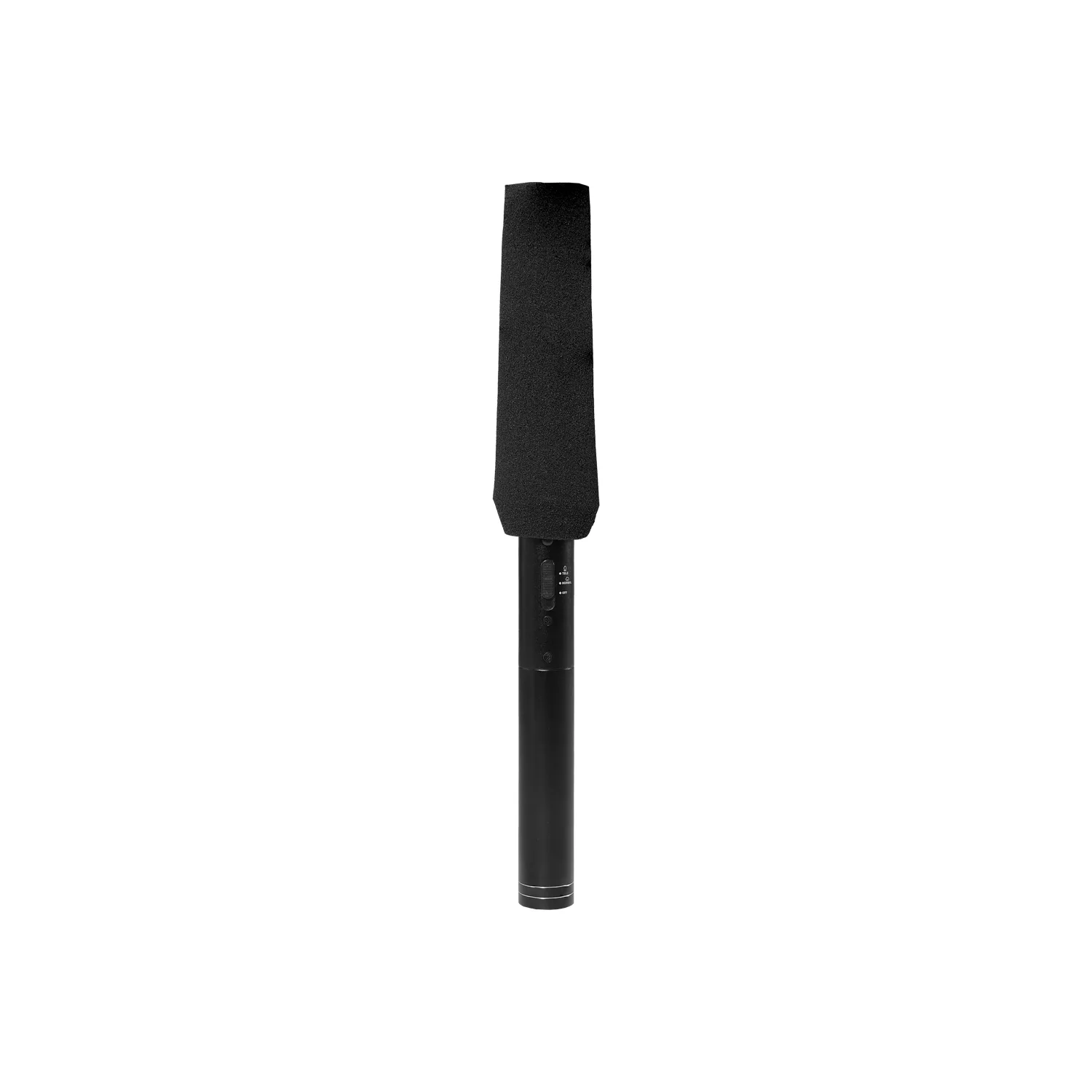

Description The Lucky Tone EC-EC-HG MIC4 is a high-performance directional condenser microphone. It is designed for professional sound capture in noisy environments, making it ideal for interviews, field recordings, and other similar applications. The microphone features excellent directional characteristics, suppressing side and distant noise for precise audio capture. Features Supports AA battery and phantom power operation. Equipped with a battery level indicator for easy power monitoring. Professional design for flat frequency response, providing clean and full-bodied sound. Selectable directivity patterns for close or distant sound sources. Durable and corrosion-resistant anodized aluminum construction.

استفسار واتساب طلب عرض سعر تحميل الكتالوج

المواصفات الفنية

Model
EC-EC-HG MIC4
Microphone Type
Back-electret condenser
Power Supply
1x AA battery or phantom power
Minimum Operating Voltage
1.15V
Battery Life
Up to 2000 hours (alkaline)
Current Consumption
Less than 0.5mA

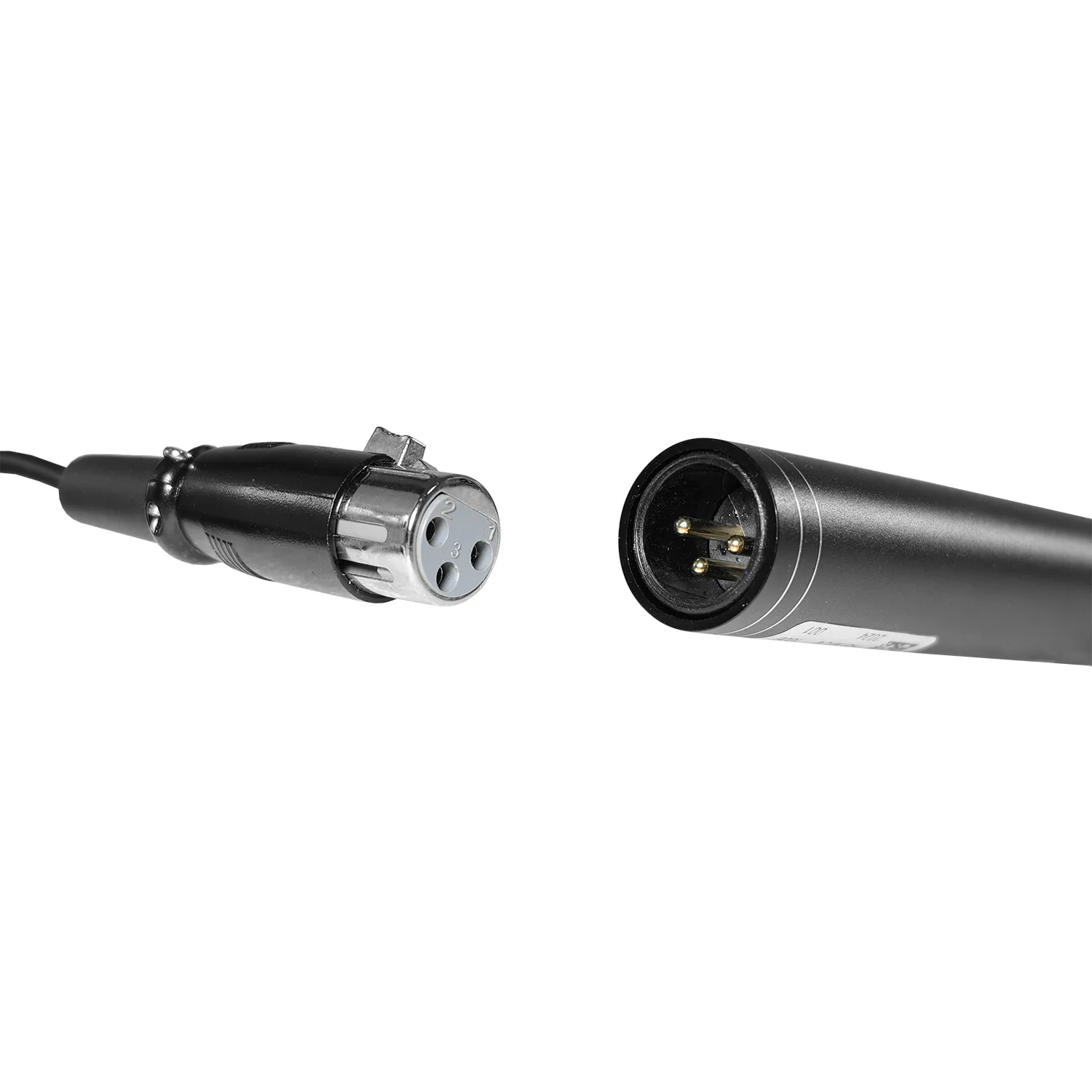

Output Connector
XLR3-12C
Material
Anodized aluminum
Dimensions
Diameter 23.3mm, Length 283mm
Net Weight
40g (without accessories)
Frequency Response
100Hz – 15kHz
Directional Pattern
Cardioid (close range) / Supercardioid (long range)
Output Impedance
200Ω ±10%
Sensitivity
14mV/Pa at 1kHz
Signal-to-Noise Ratio
Greater than 72dB
Self-Noise
Less than 22dB
Maximum Sound Pressure Level
125dB
Operating Temperature
0°C to 60°C

الاستخدامات

Supports AA battery and phantom power operation.
Equipped with a battery level indicator for easy power monitoring.
Professional design for flat frequency response, providing clean and full-bodied sound.
Selectable directivity patterns for close or distant sound sources.
Durable and corrosion-resistant anodized aluminum construction.
