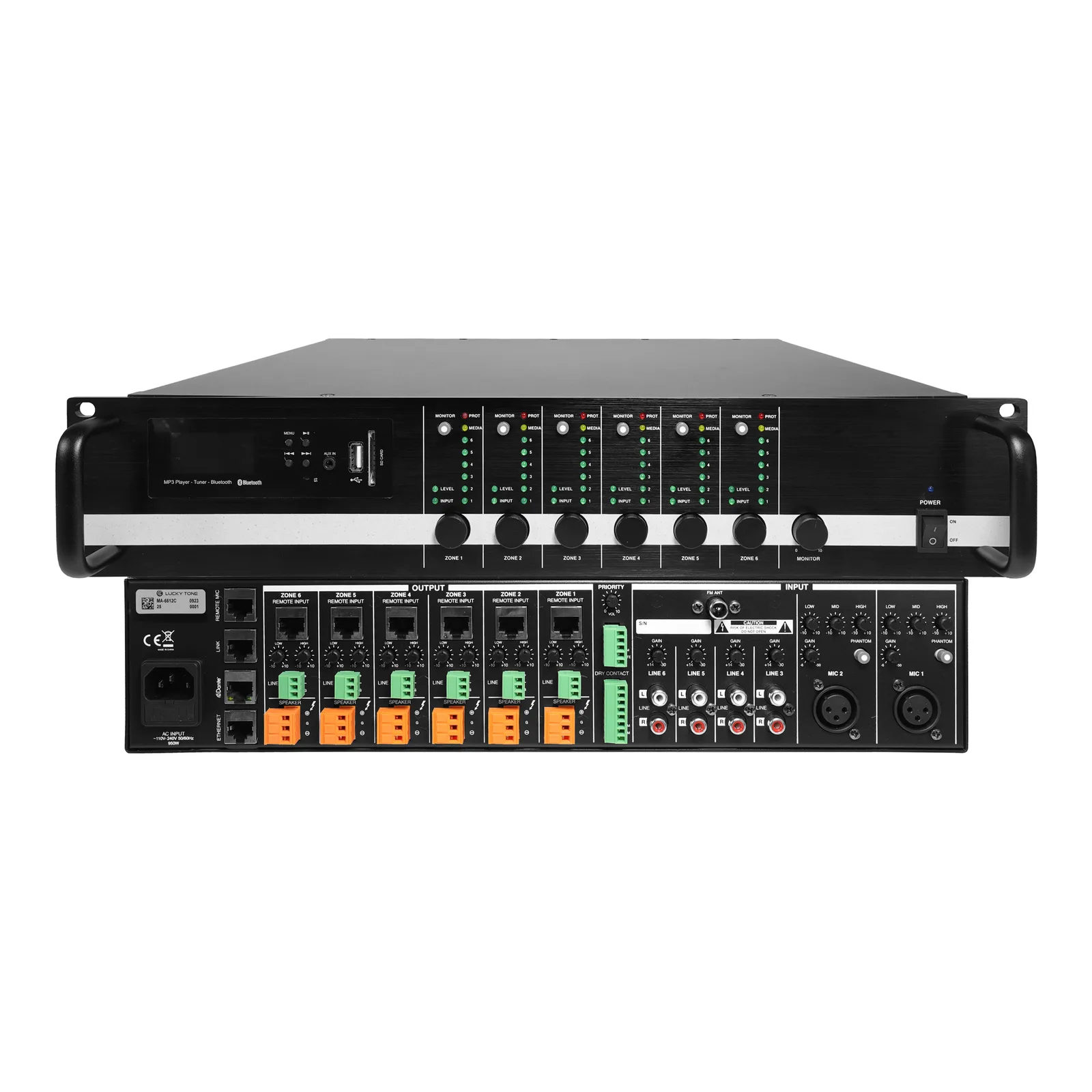

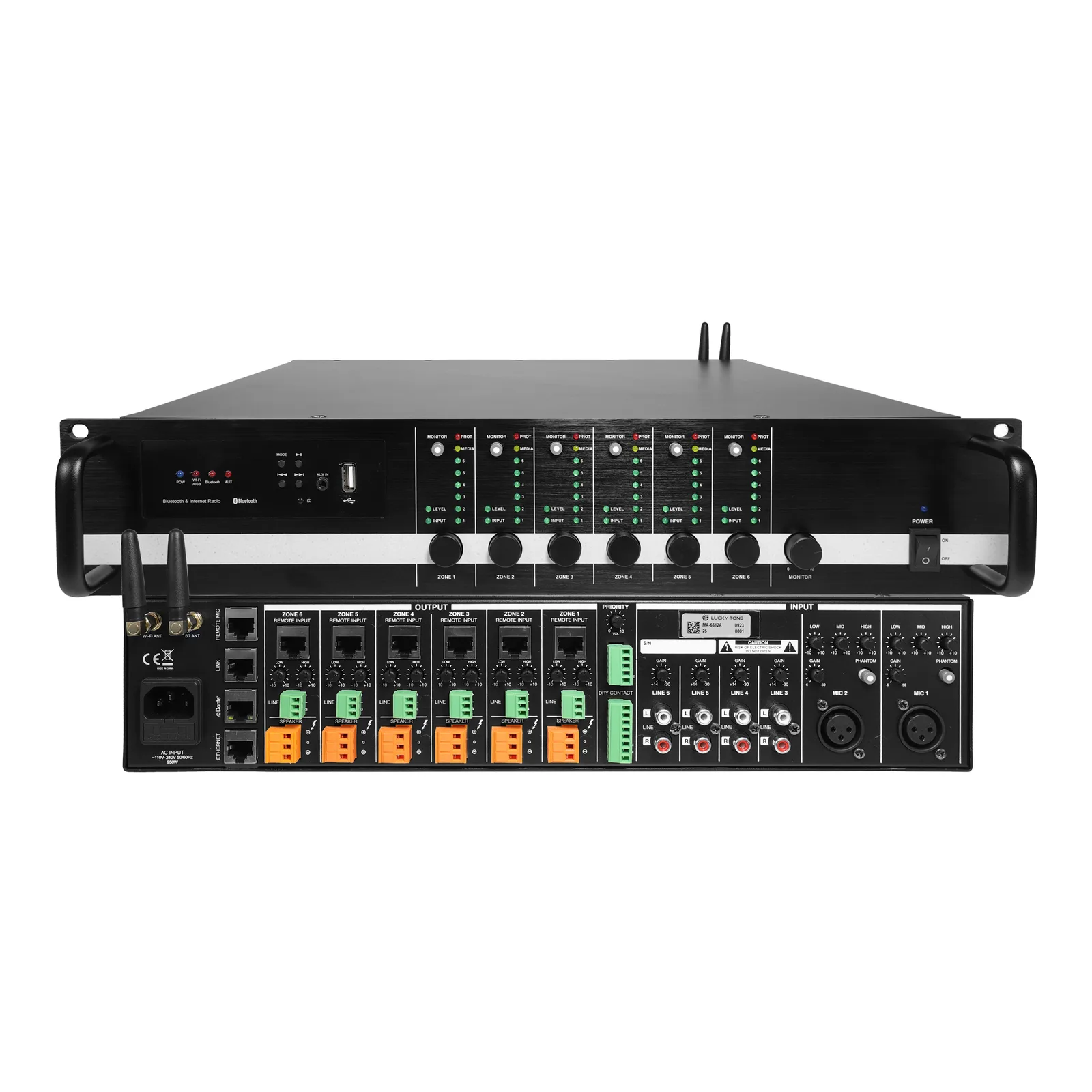

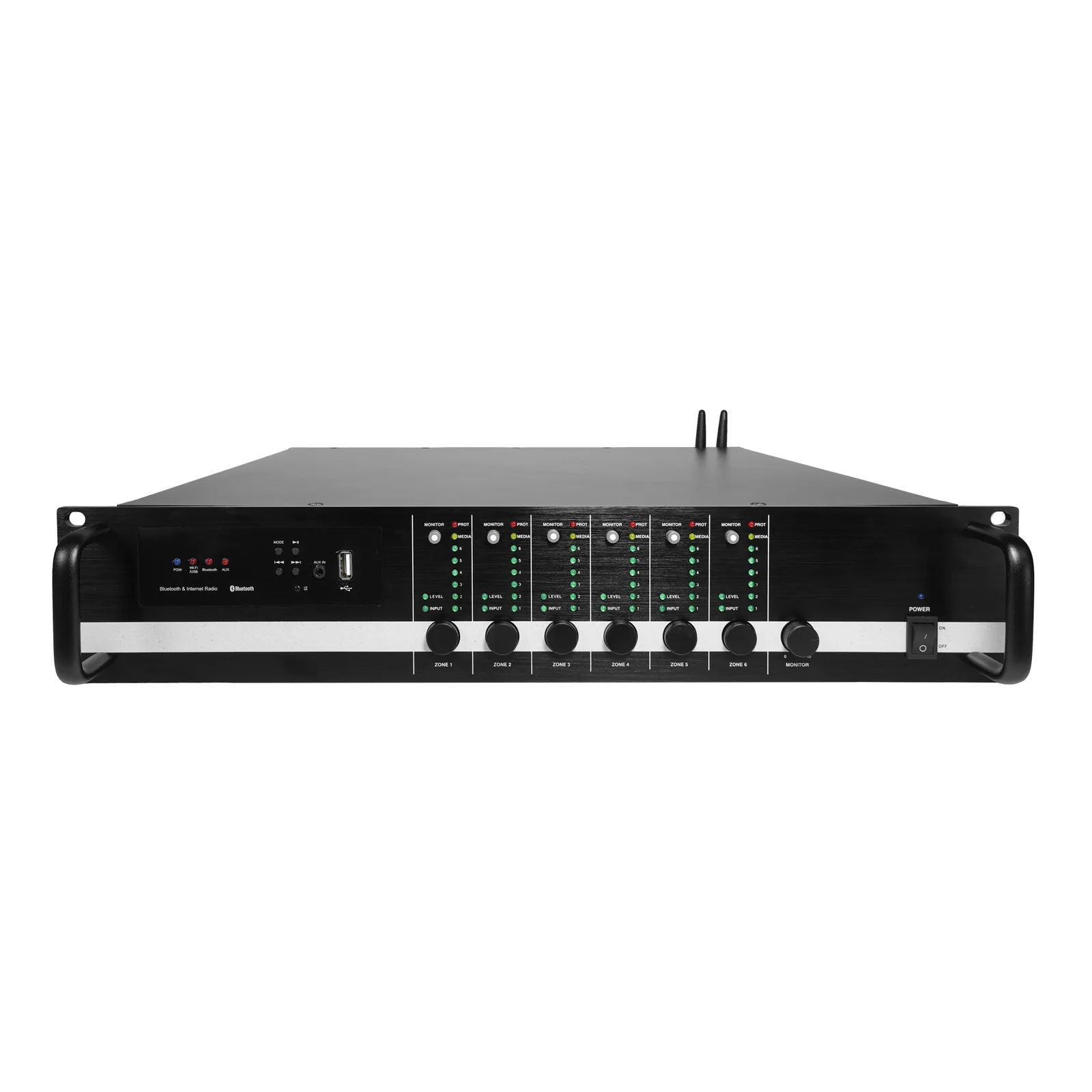

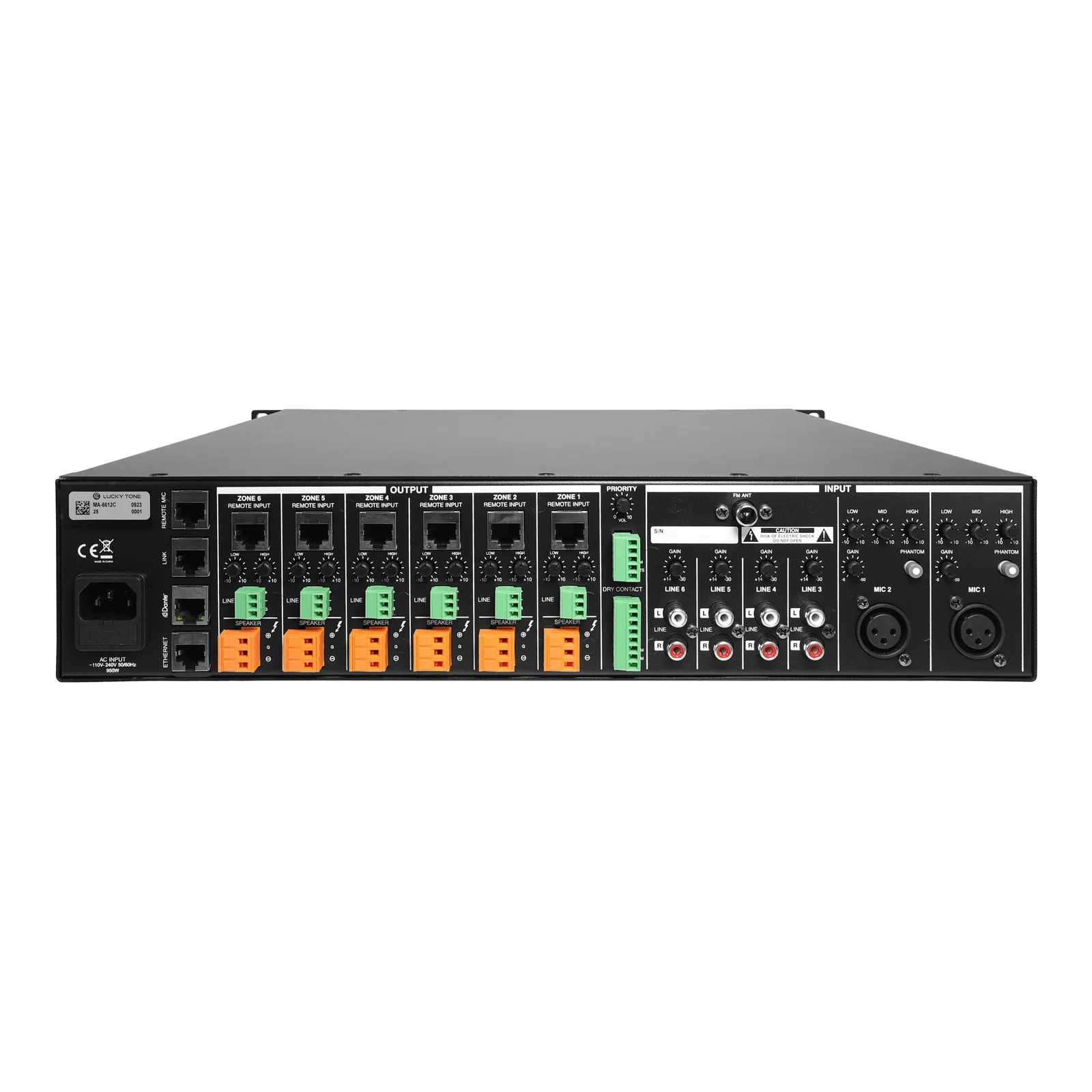

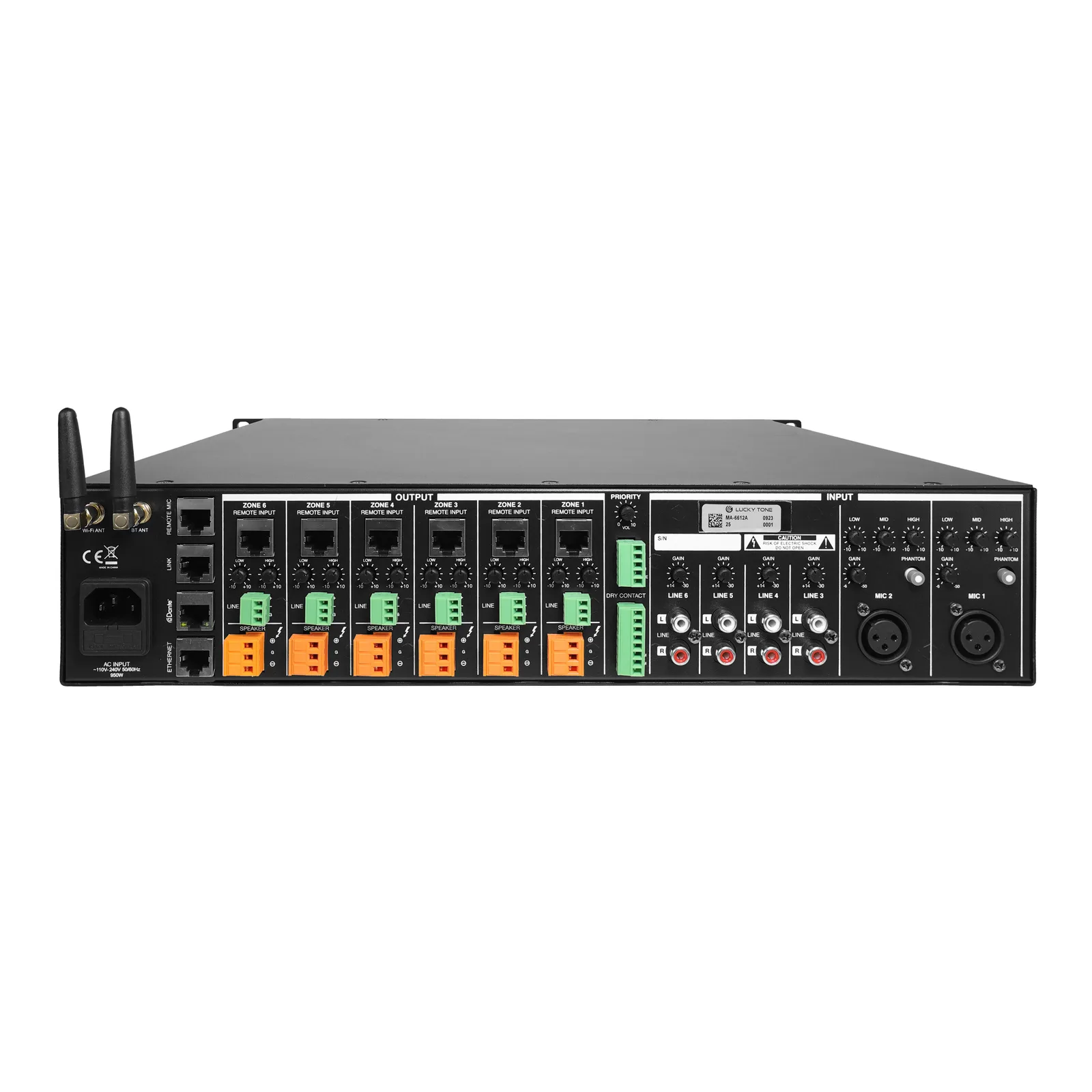

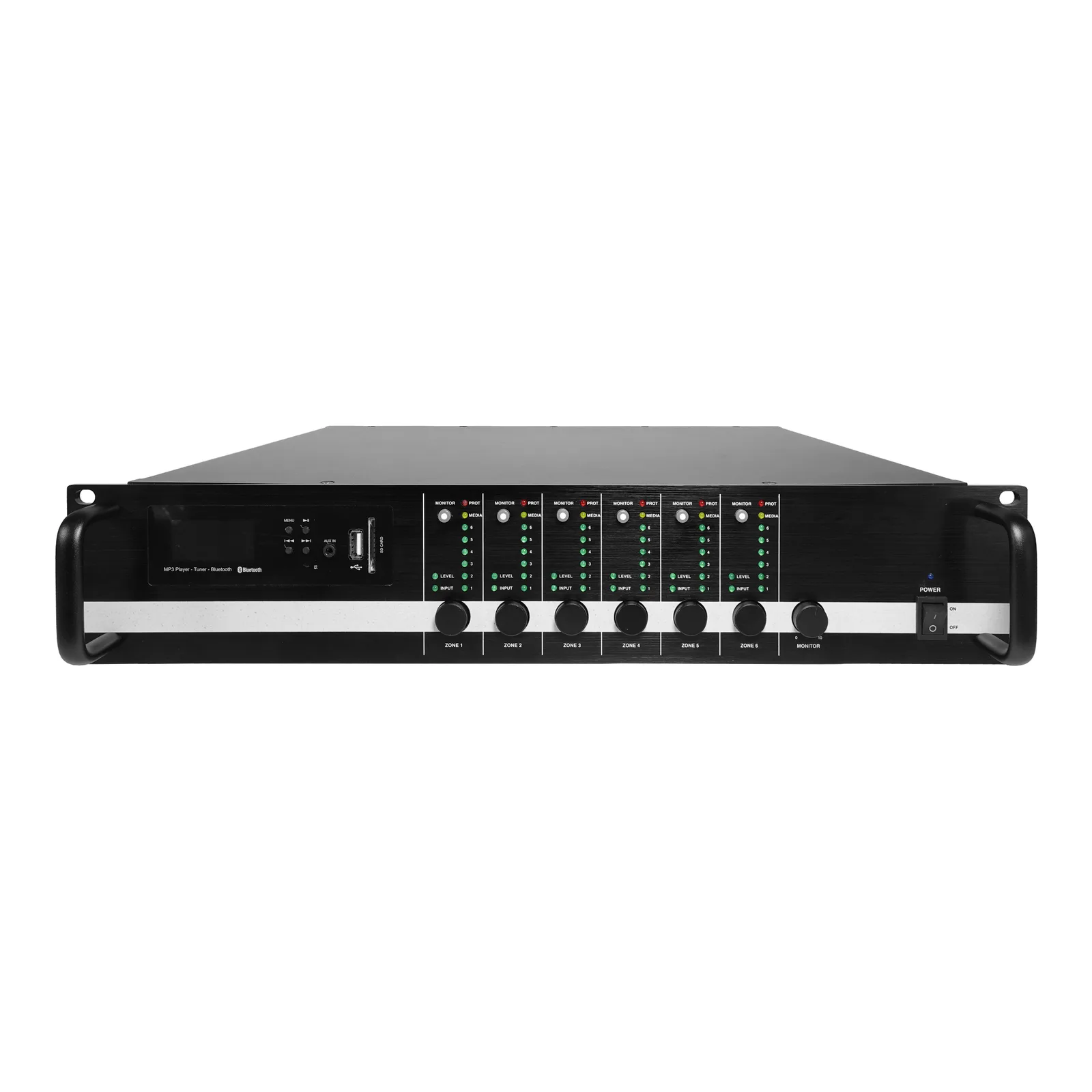

Matrix Amplifier with Dynamic Power Sharing
الكود: EC-6612A
Features Performance – Dynamic Power Sharing across all channels – Flexible power allocation within defined per-channel and total limits – Built-in matrix for versatile routing and zoning – Built-in media player (MP3, Bluetooth, Internet Radio, Wi-Fi Audio streaming e.g. Spotify, FM radio) – Built-in monitor speaker for easy local monitoring Integration – 6-channel and 4-channel versions available – Supports background music, paging, and emergency broadcast applications – Remote control ready (wall panels, paging stations) Reliability – Full protection: overload, short-circuit, overheating – Low distortion and high S/N ratio – 2U rackmount design for space efficiency
المواصفات الفنية
Model
EC-6612A
Channel
6
Rated Power per Channel
500W or less
Total Power
720W or less
Output /Impedance
100V or 4ohm
Input sensitivity /Impedance
Mic Input-50dB to-6dB/600 Balanced
Line Input -6dB to+14dB/20K Balanced
Remote Input OdB/20K Balanced
Output level/Impedance
0dB/600 Ω Balanced
Frequency Response(-3dB)
70Hz-18kHz
T.H.D
<1.0%
Crosstalk
70 dB
Equalization
Input:High:12kHz±10 dB/Mid:2.5 kHz±10 dB/Low:80 Hz±10 dB
Output:High:10 kHz±10 dB/Low:100 Hz±10 dB
S/N Ratio
>80 dB
Power Source
AC 115/230V,50 to 60Hz
Net Weight
10.5kg
Dimensions(W×H×D)
483×88×440mm
الاستخدامات
Performance
– Dynamic Power Sharing across all channels
– Flexible power allocation within defined per-channel and total limits
– Built-in matrix for versatile routing and zoning
– Built-in media player (MP3, Bluetooth, Internet Radio, Wi-Fi Audio streaming e.g. Spotify, FM radio)
– Built-in monitor speaker for easy local monitoring
Integration
– 6-channel and 4-channel versions available
– Supports background music, paging, and emergency broadcast applications
– Remote control ready (wall panels, paging stations)
Reliability
– Full protection: overload, short-circuit, overheating
– Low distortion and high S/N ratio

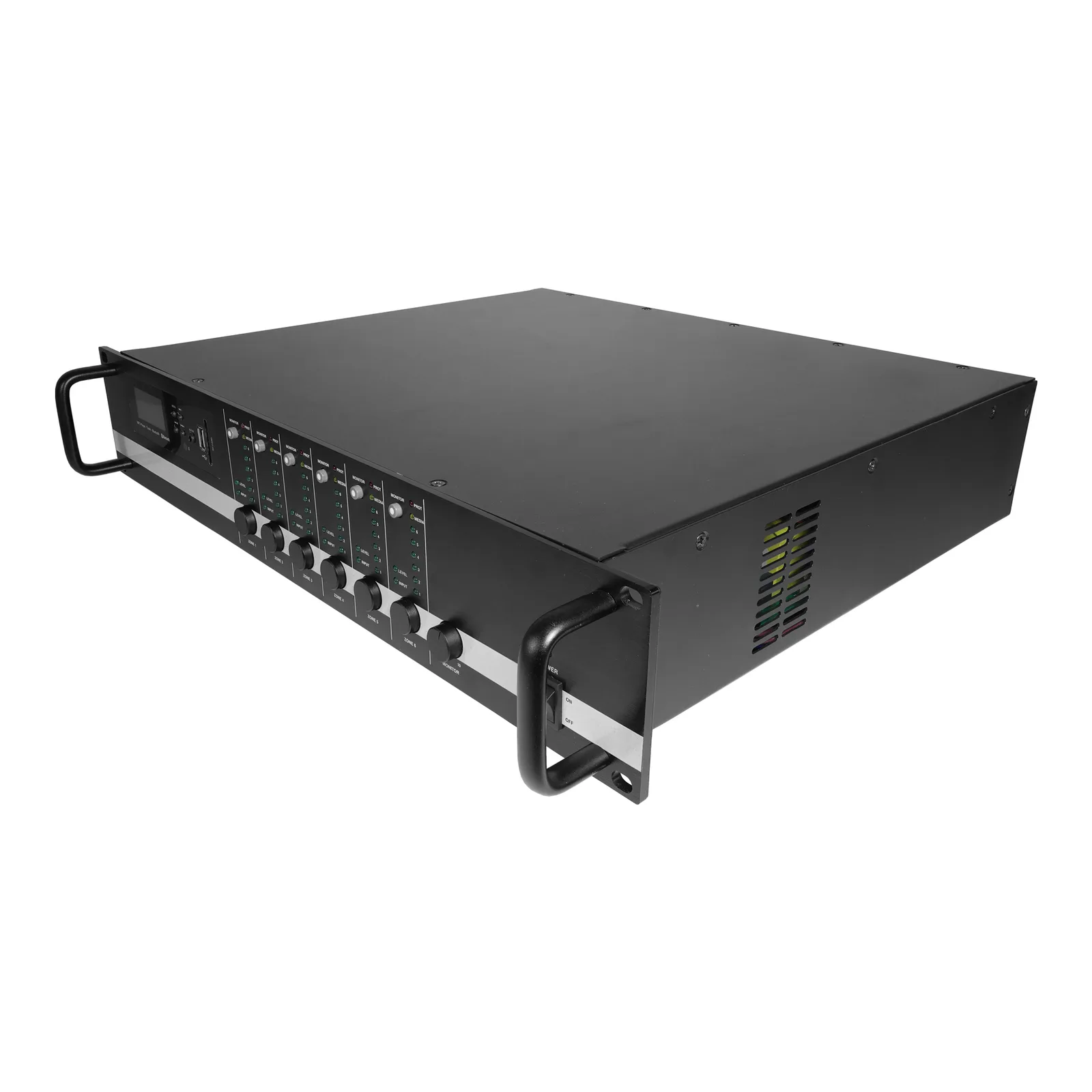

– 2U rackmount design for space efficiency
