أنظمة الصوت / نظام الصوت الشبكي Dante

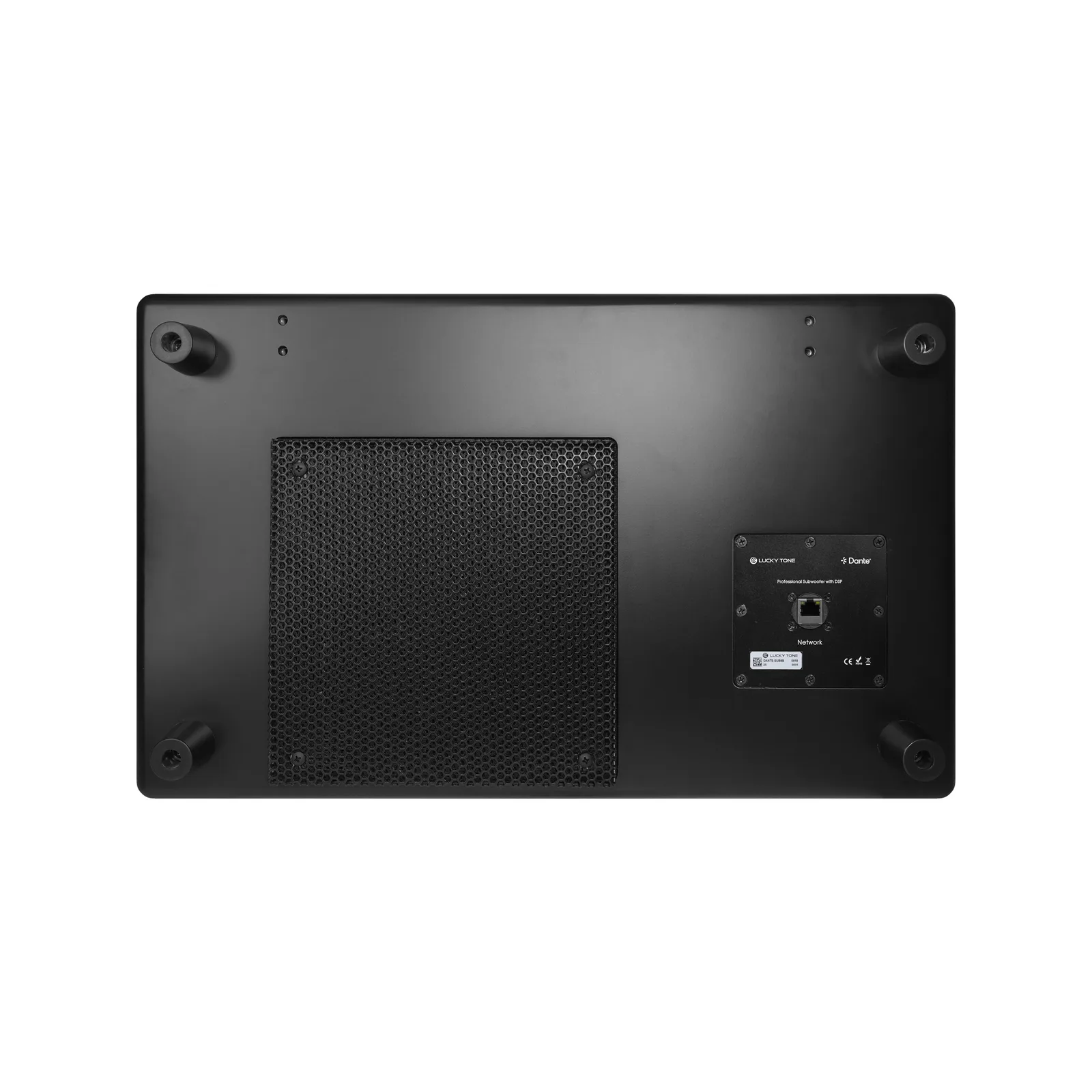

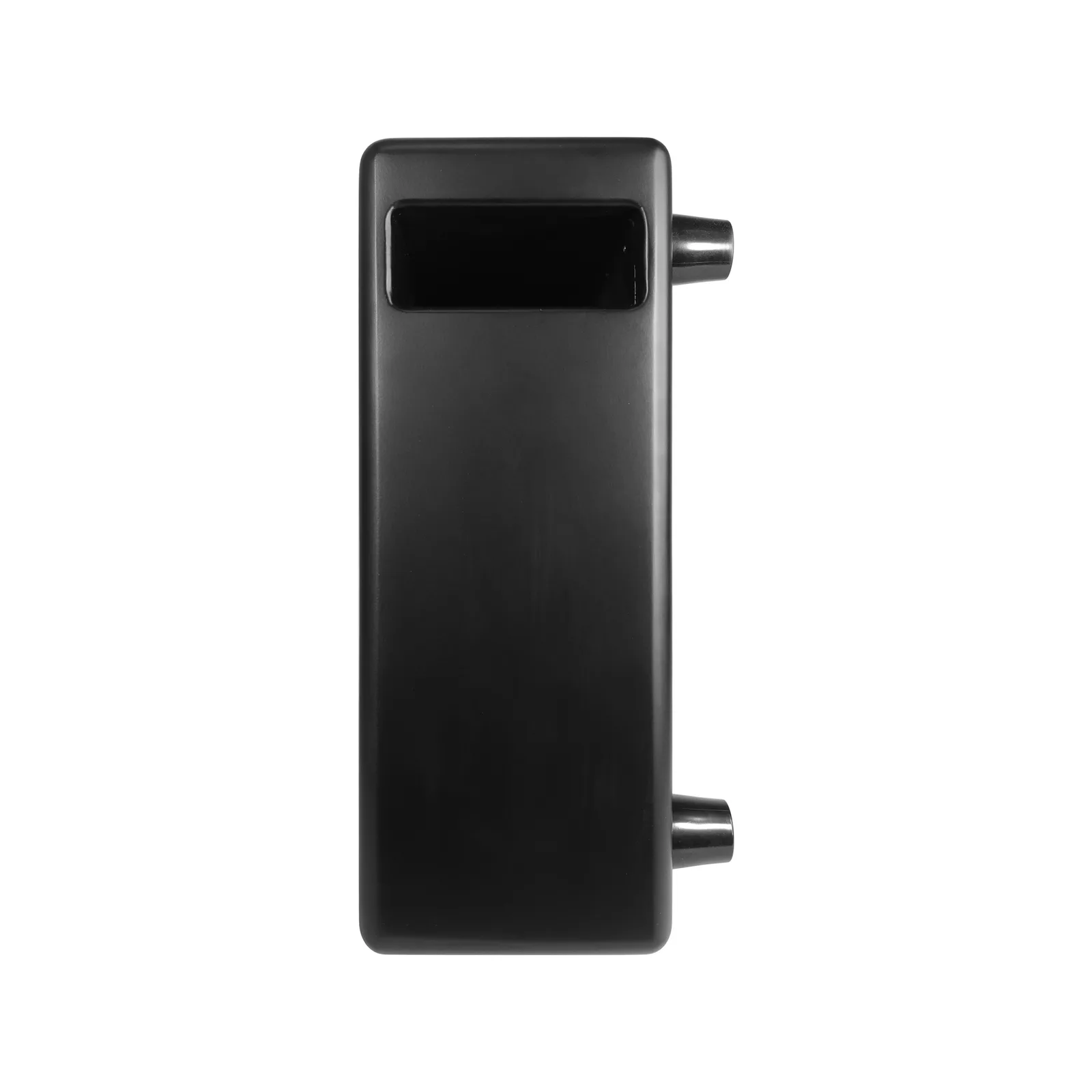

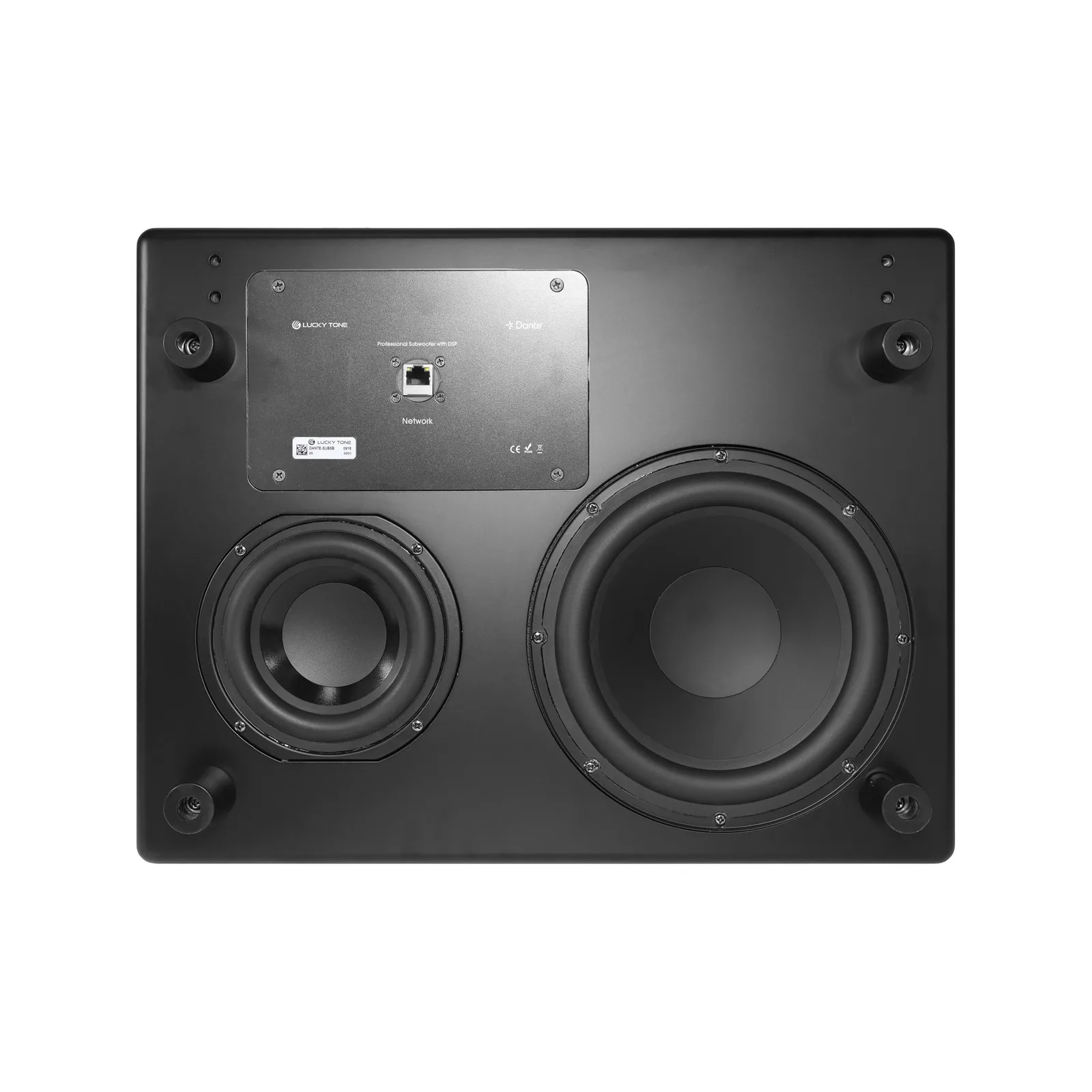

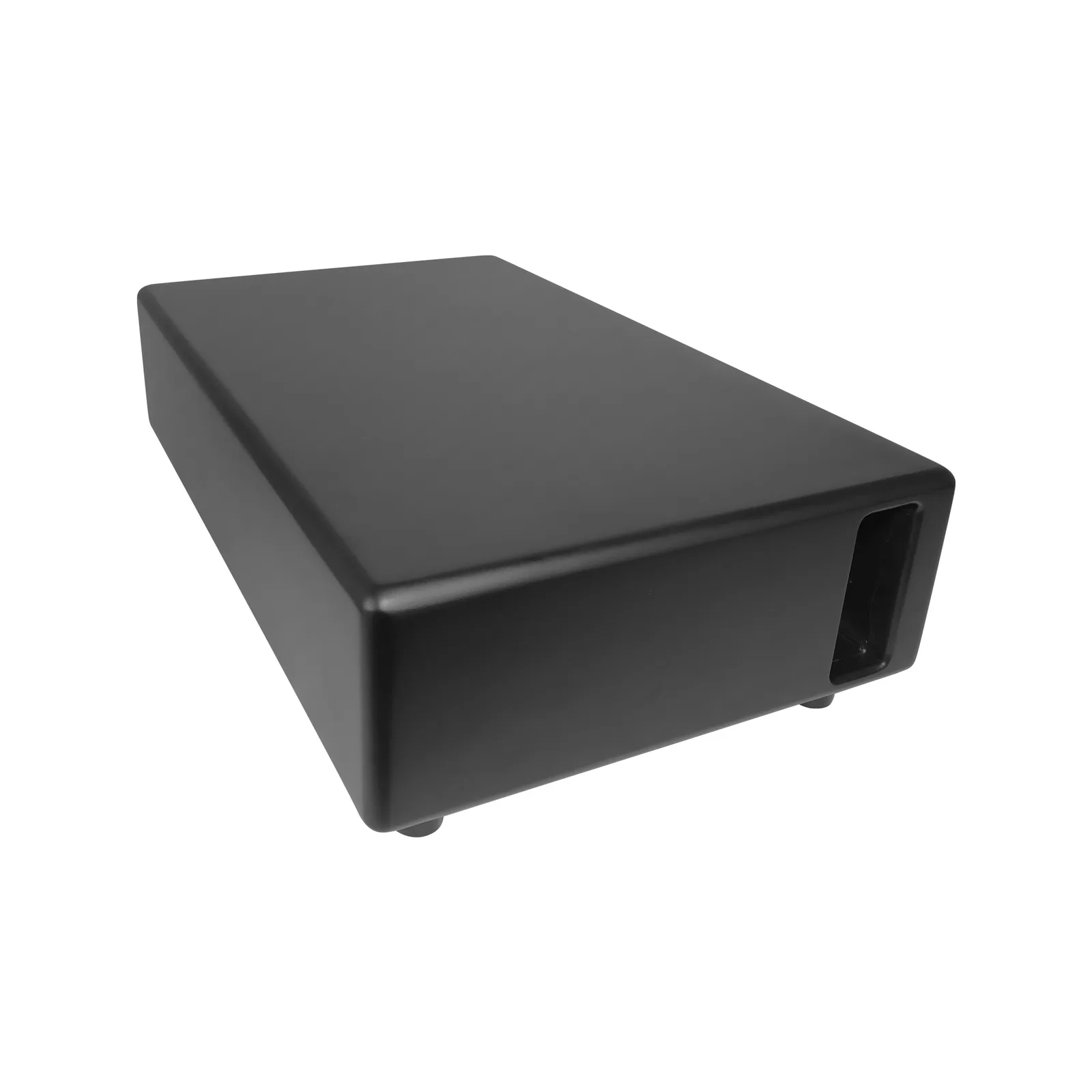

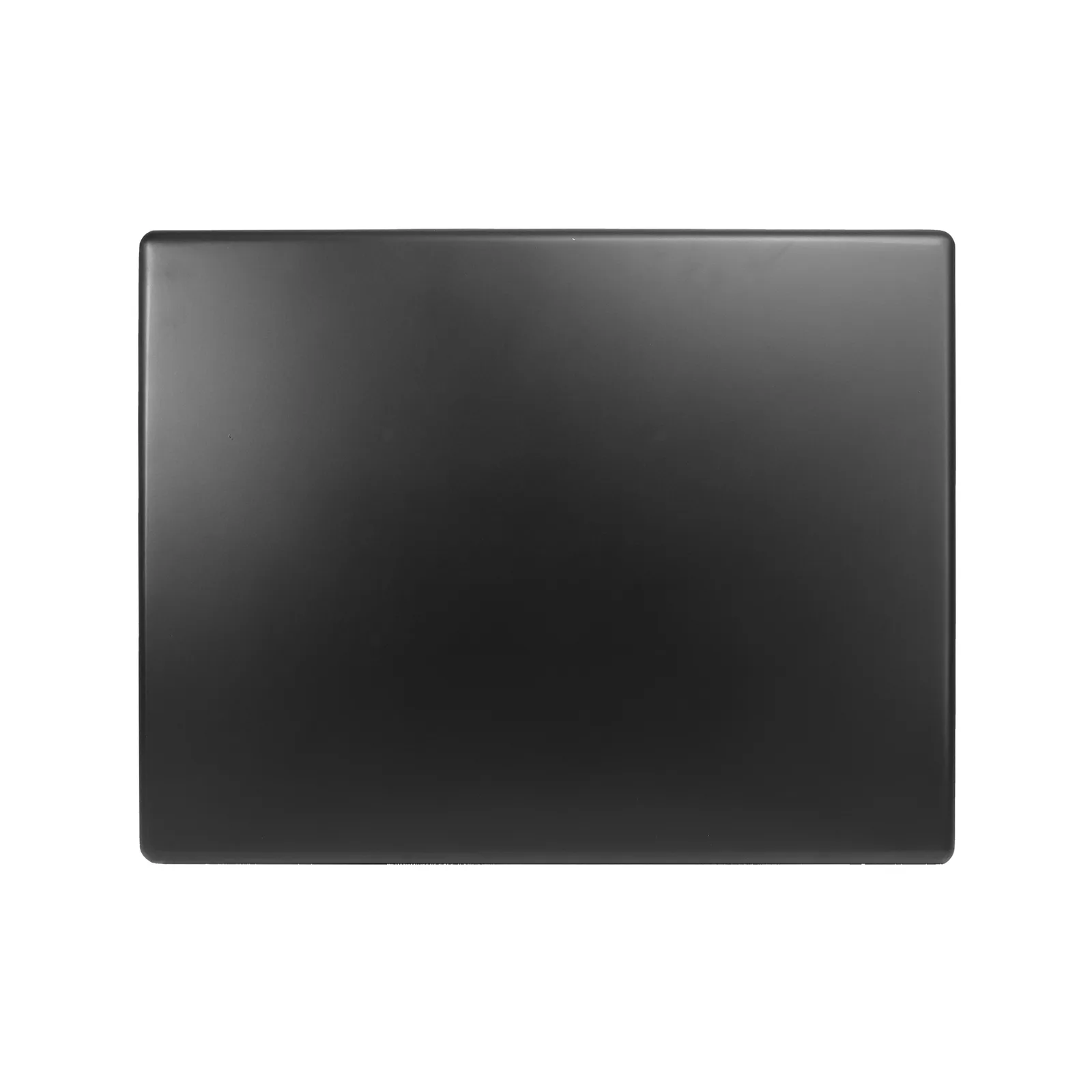

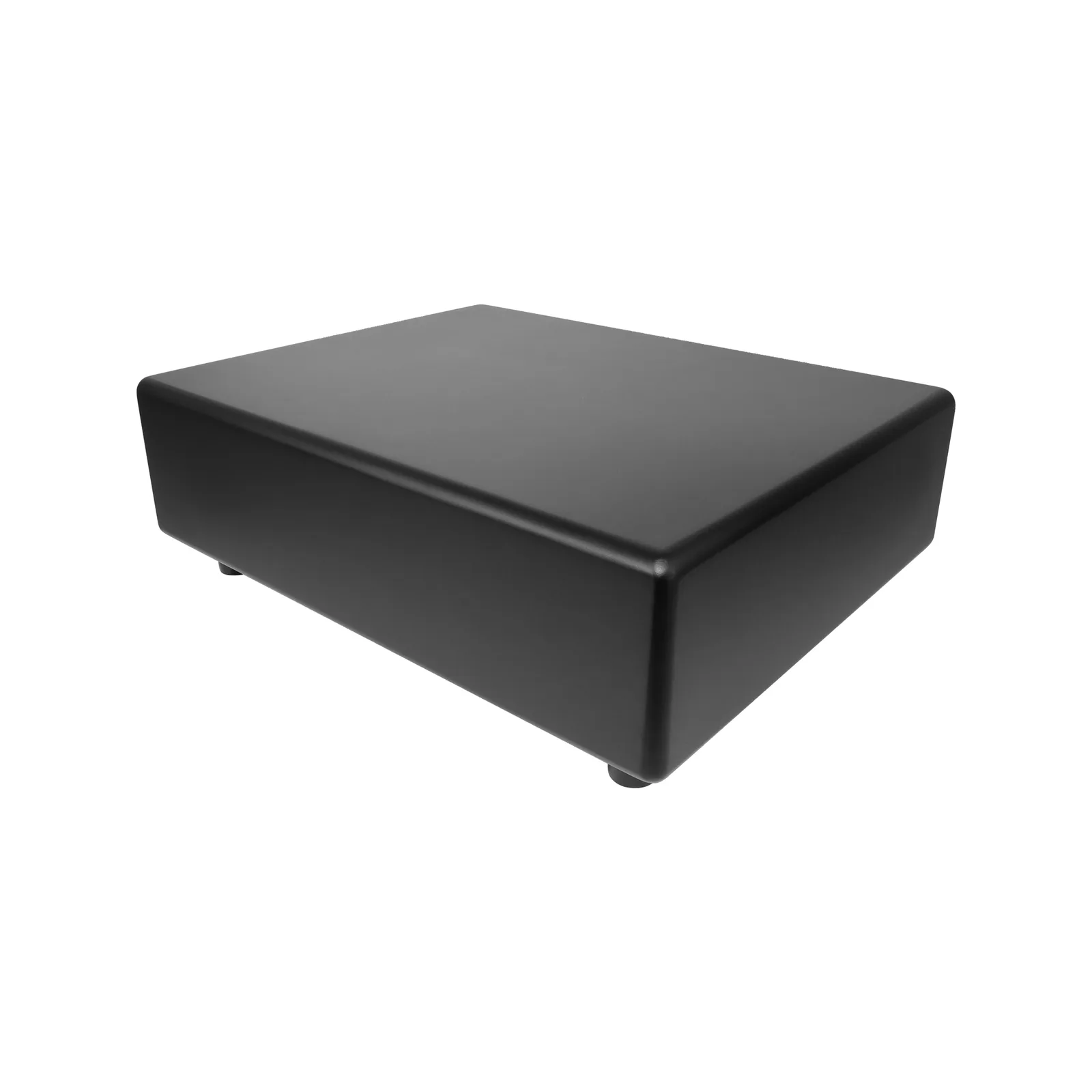

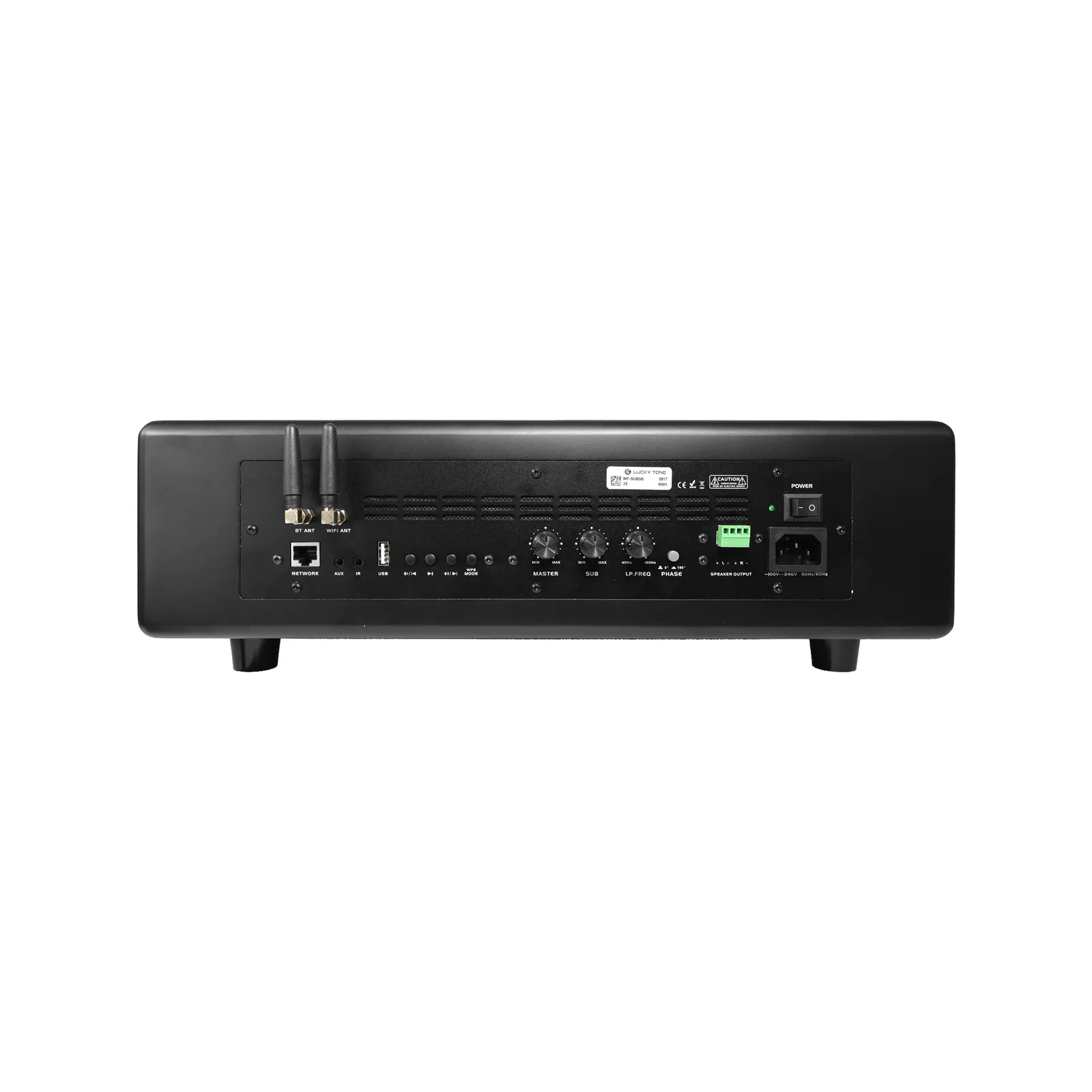

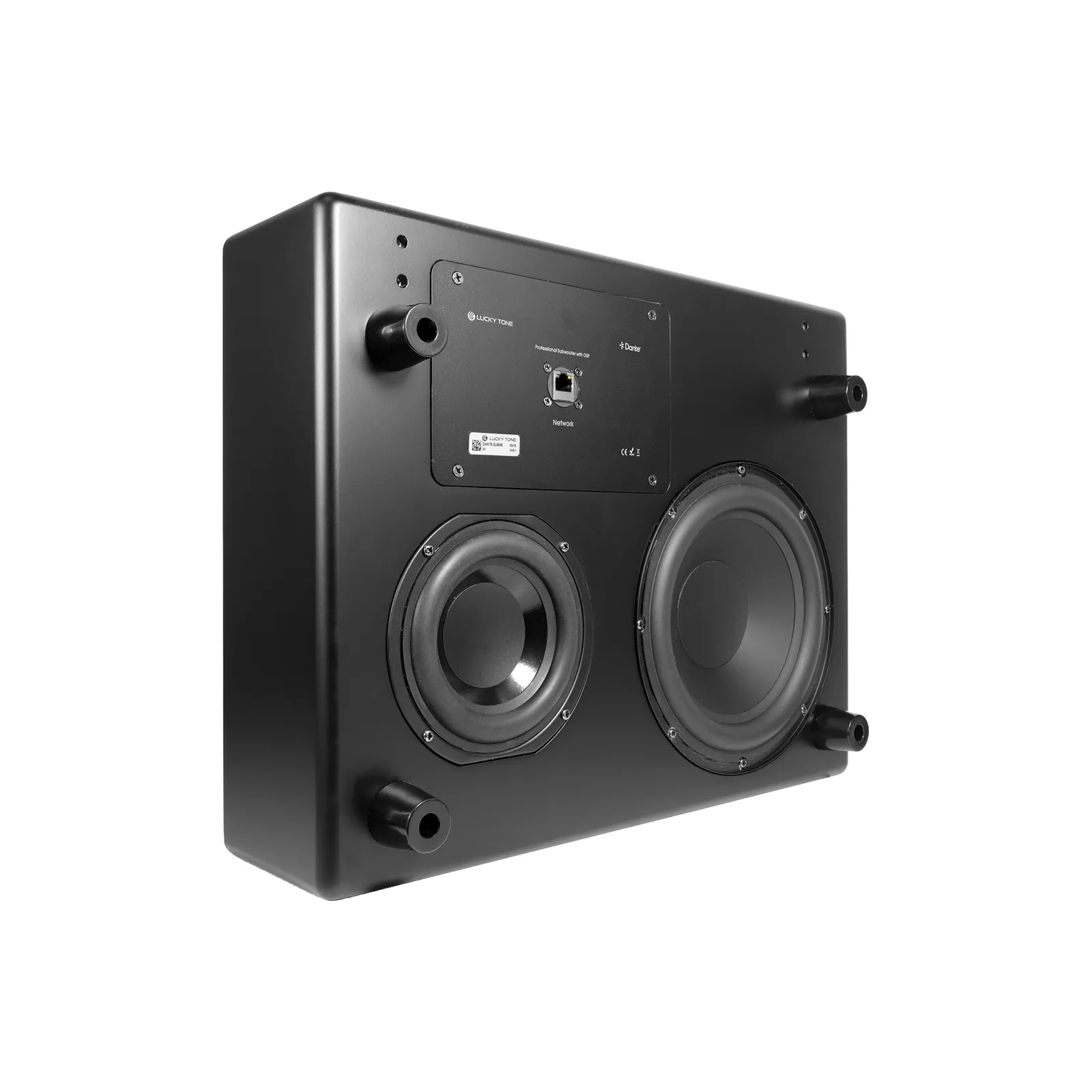

Network Subwoofer with DSP
الكود: EC-SUB5W/ DANTE-SUB5B / DANTE-SUB8W/ DANTE-SUB8B
Features： Dante™ audio over RJ45, seamless integration PoE powered, no extra power supply needed Deep bass performance: 5.25″ or 8″ woofer High output for powerful, clear low-frequency reinforcement. Equipped with passive radiator for deeper, richer low end (5.25″ model) Compact MDF cabinet, White/Black options Flexible installation: wall, floor, or ceiling Ideal for commercial spaces, rooms, and PA systems using Dante audio.
المواصفات الفنية
Model
EC-SUB5W/ DANTE-SUB5B / DANTE-SUB8W/ DANTE-SUB8B
Input Interface
RJ45
Audio Input Signal
Dante™ | Balanced amplified signal
Rated Output Power
80W / 120W
Sensitivity
89±2dB / 88±2dB
Max. SPL@ 1M
89±2dB / 92±2dB
Speaker Size
5.25″ DVC Subwoofer with 35mm Voice Coil / 8″ Subwoofer with 38mm Voice Coil
Input Voltage
POE
Frequency Response
50-400HZ / 35-350HZ
Materials
MDF
Installation
On Wall/On Floor/On Ceiling
Color
White/Black
Product Size (L x W x H)
450×350×150mm / 545×337×160mm
Net Weight
7.3KG / 9.2KG
الاستخدامات
Dante™ audio over RJ45, seamless integration
PoE powered, no extra power supply needed
Deep bass performance: 5.25″ or 8″ woofer
High output for powerful, clear low-frequency reinforcement.

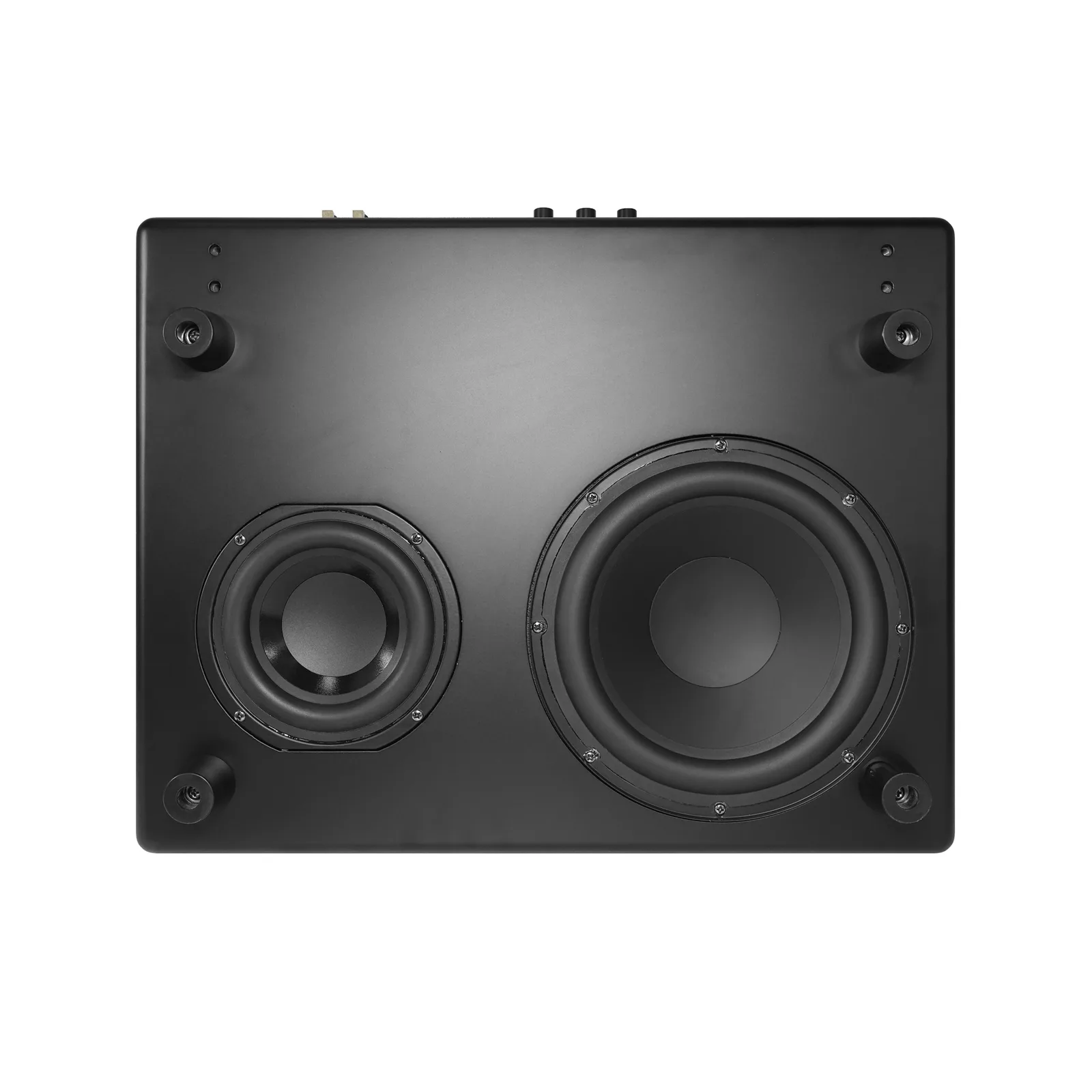

Equipped with passive radiator for deeper, richer low end (5.25″ model)
Compact MDF cabinet, White/Black options
Flexible installation: wall, floor, or ceiling
Ideal for commercial spaces, rooms, and PA systems using Dante audio.
