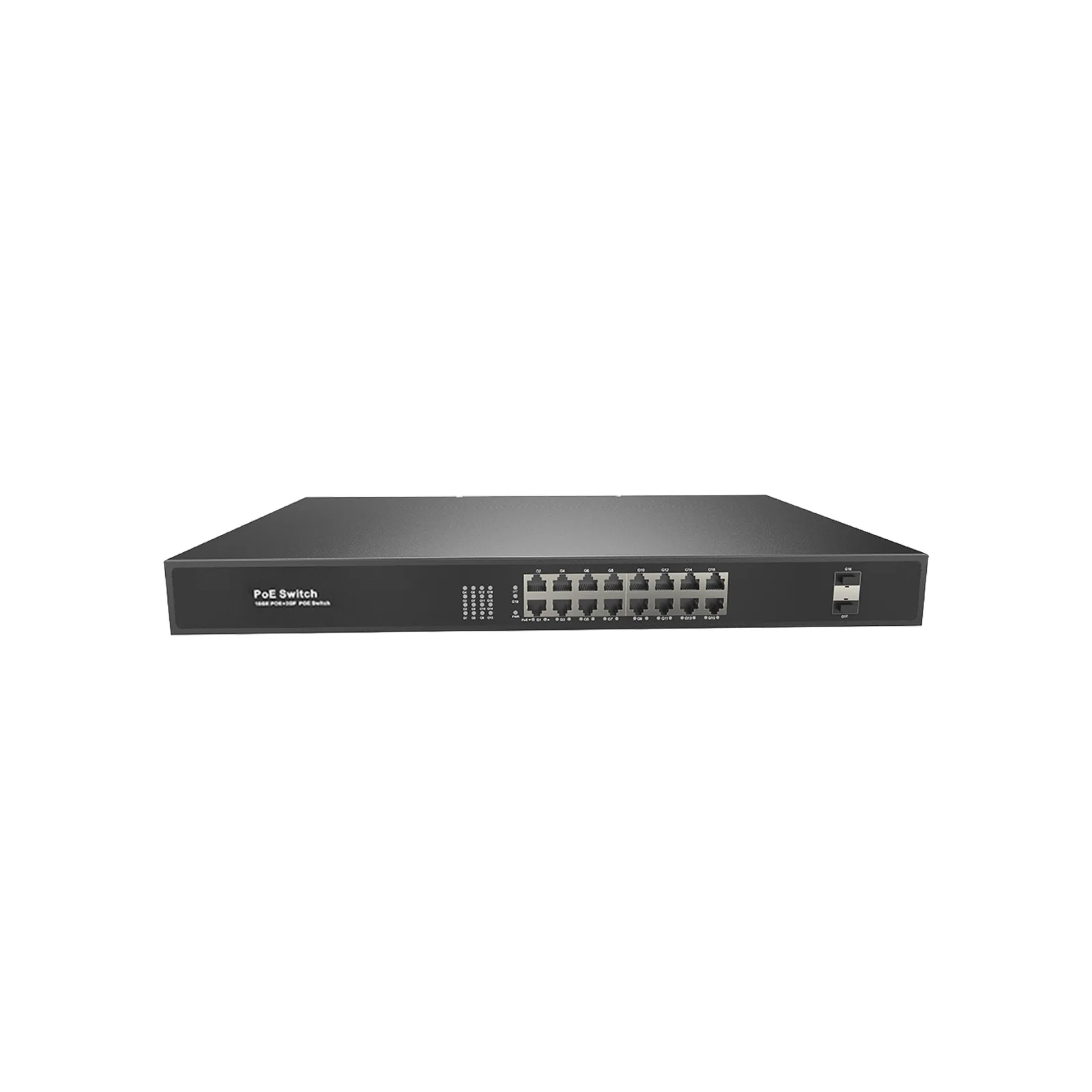

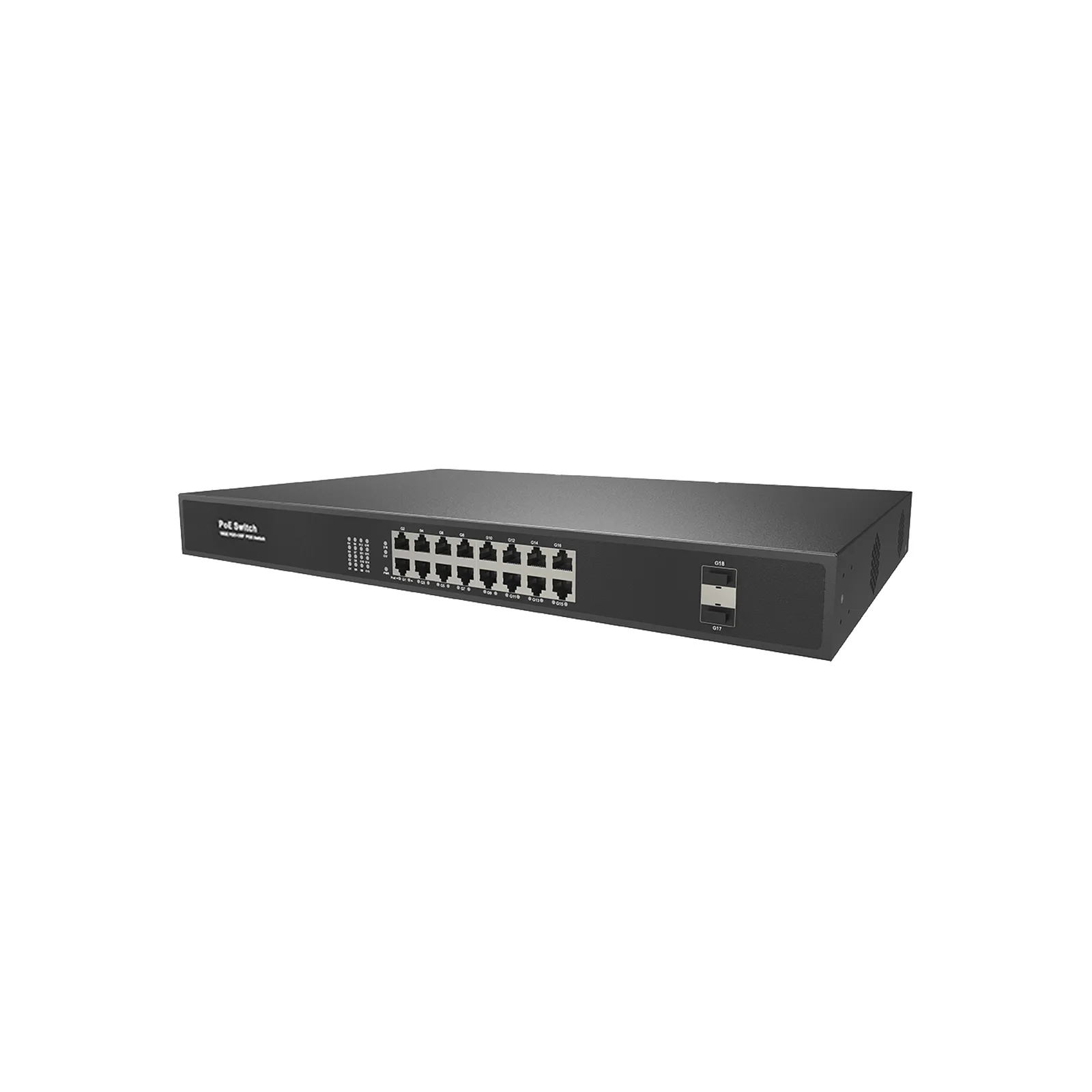

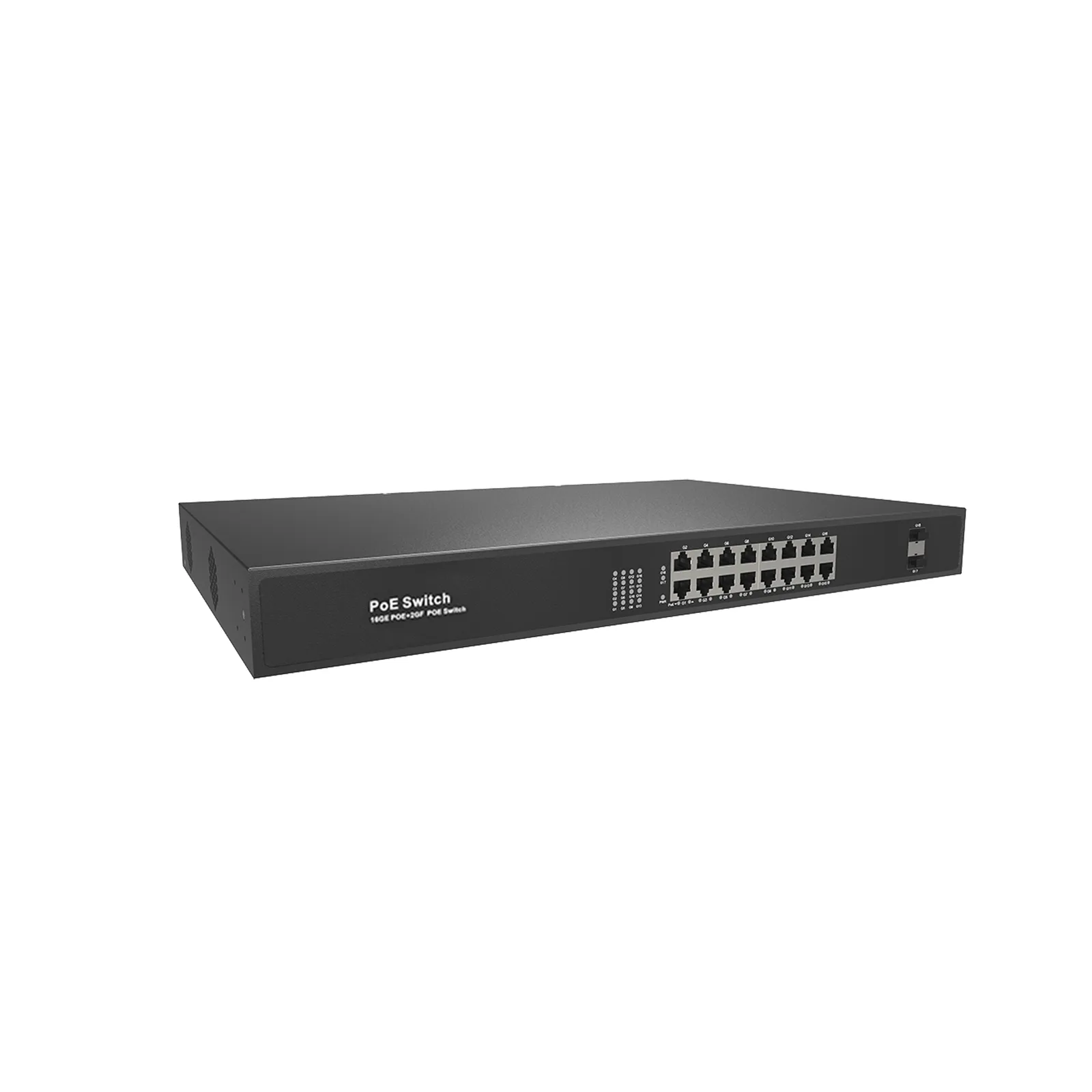

Network Switch with 16 POE Ports
الكود: EC-POE 16 P 30
Sixteen10/100/1000M adaptive RJ45 ports support IEEE 802.3af/at standard PoE power supply. Single port power supply up to 30W, total power supply up to 40 Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure. Support gigabit RJ45 port and gigabit SFP fiber port combination, which enables users toflexibly build networking to meet the needs of various scenarios.
المواصفات الفنية
Model
EC-EC-POE 16 P 30
Transmission Rate
10/100/1000Mbps
Max. Power Per Port
30W; IEEE802.3af/at/bt
Total Power
400W
Fixed Port
2*1000Base-X uplink SFP fiber ports (Data)
16*10/100/1000Base-T PoE ports (Data /Power)
Ethernet Port
Port 1-16 support 10/100/1000Base-T
auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Network Protocol
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Switching Capacity
52Gbps (Non-blocking)
Power Supply
AC100~240V 50-60Hz
Dimension (L*W*H)
440*225*44.mm
Net Weight
3kg
الاستخدامات
Sixteen10/100/1000M adaptive RJ45 ports support IEEE 802.3af/at standard PoE power supply.
Single port power supply up to 30W, total power supply up to 40
Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
Support gigabit RJ45 port and gigabit SFP fiber port combination, which enables users toflexibly build networking to meet the needs of various scenarios.
