أنظمة الصوت / نظام الصوت الشبكي Dante

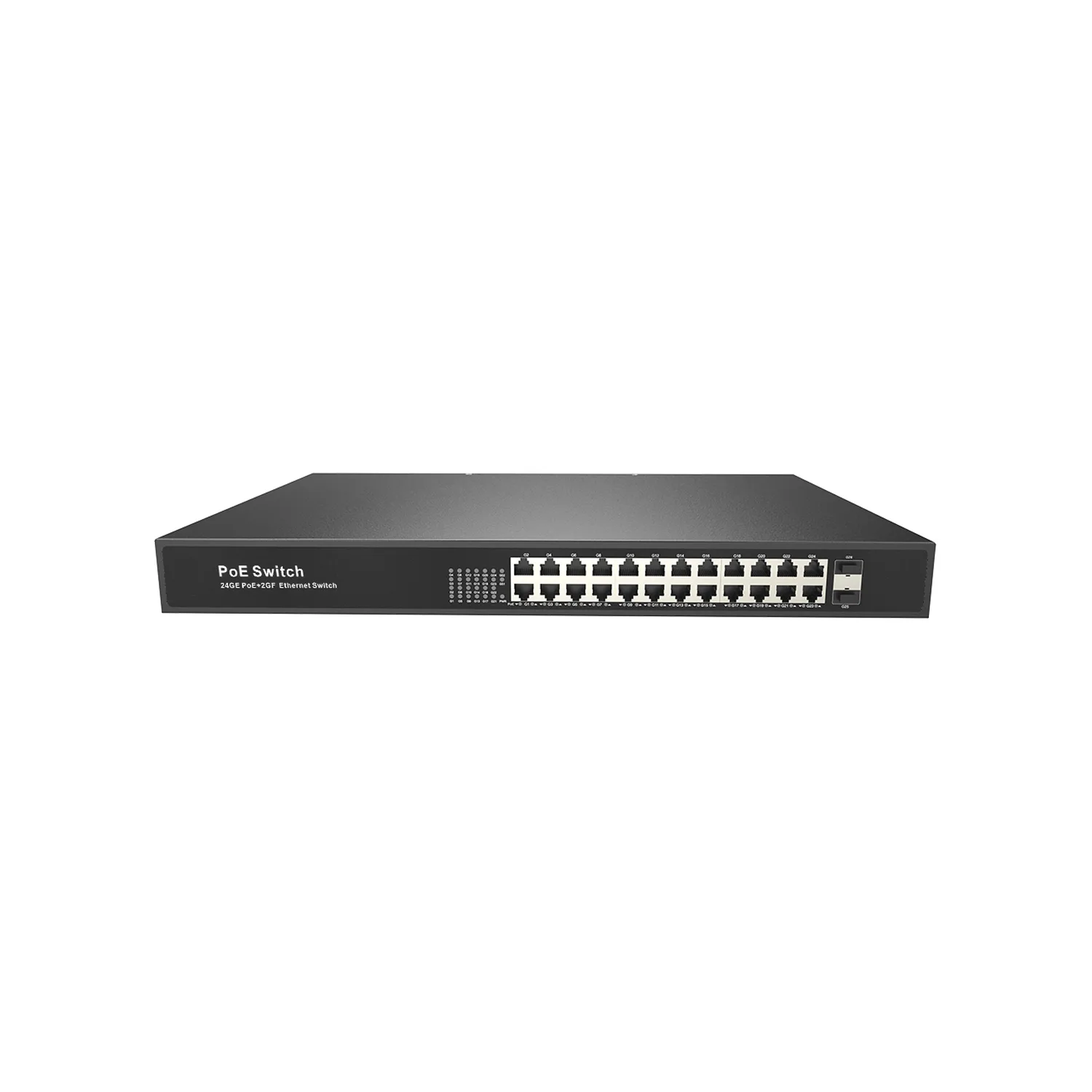

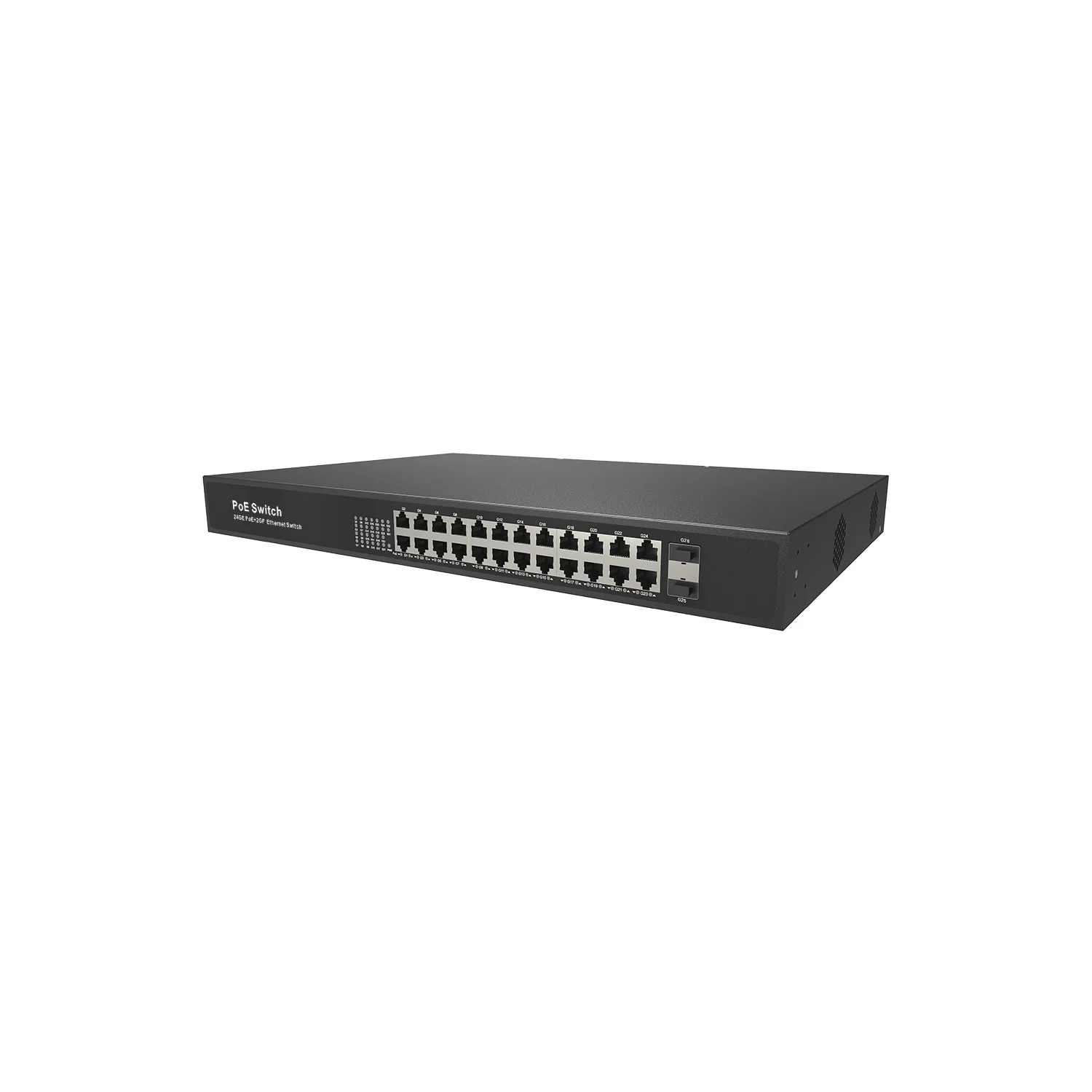

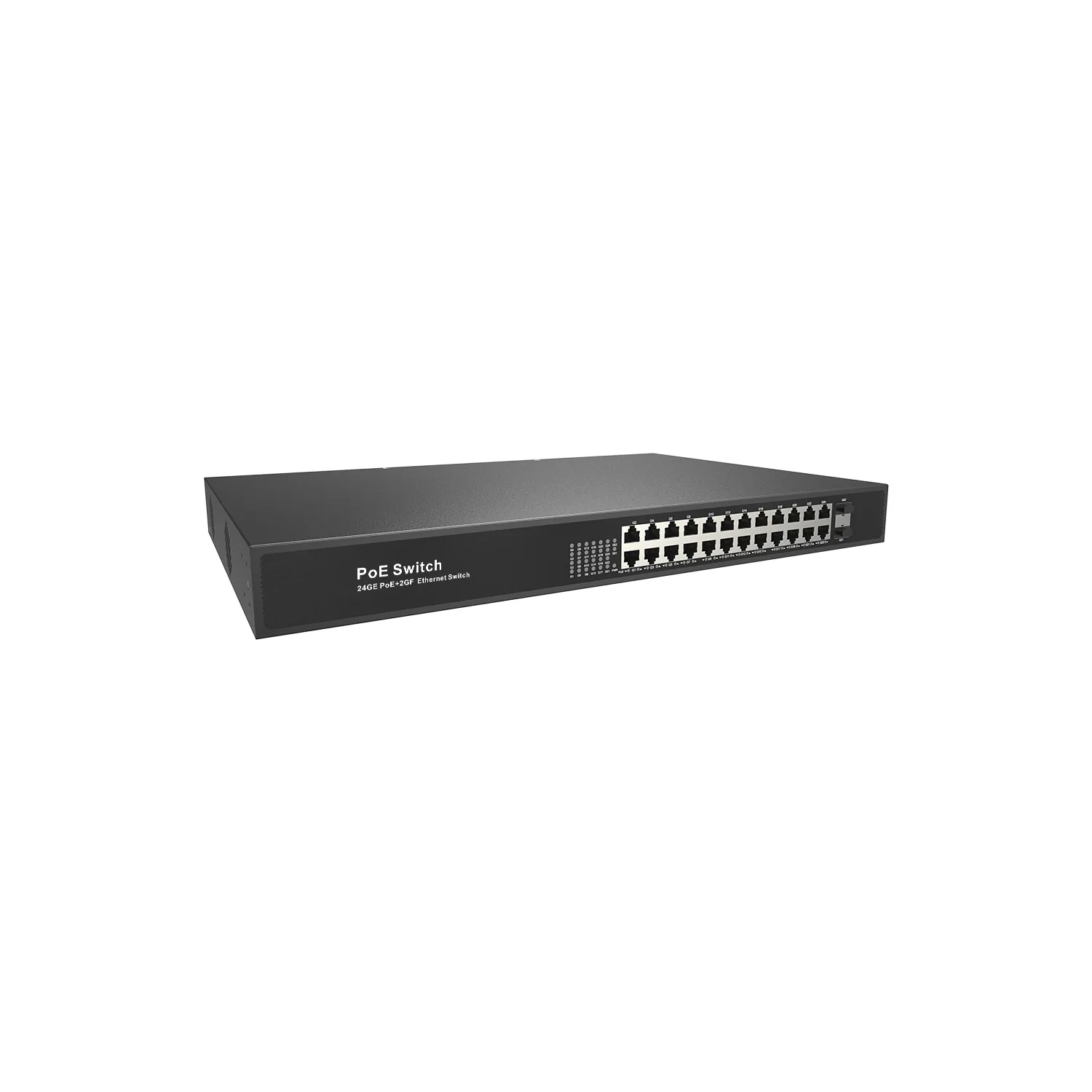

Network Switch with 24 POE Ports
الكود: EC-POE24P30
Twenty-four 10/100/1000M adaptive RJ45 ports support IEEE 802.3af/at standard PoE power supply. Single port power supply up to 30W, total power supply up to 600W. Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure. Gigabit RJ45 ports and SFP fiber ports combination, high-speed high-bandwidth connection, to meet the networking needs of various scenarios.
المواصفات الفنية
Model
EC-EC-POE24P30
Transmission Rate
10/100/1000Mbps
Max. Power Per Port
30W; IEEE802.3af/at/bt
Total Power
600W
Fixed Port
24*10/100/1000Base-T PoE ports (Data /Power)
2*1000Base-X uplink SFP ports (Data)
Ethernet Port
Port 1-24 support 10/100/1000Base-T(X)
auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Switching Capacity
52Gbps
Power Supply
AC100~240V 50-60Hz
Dimension (L*W*H)
440*290*44.5mm
Net Weight
3.2kg
الاستخدامات
Twenty-four 10/100/1000M adaptive RJ45 ports support IEEE 802.3af/at standard PoE power supply.
Single port power supply up to 30W, total power supply up to 600W.
Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
Gigabit RJ45 ports and SFP fiber ports combination, high-speed high-bandwidth connection, to meet the networking needs of various scenarios.
