أنظمة الصوت / سماعات النداء العام

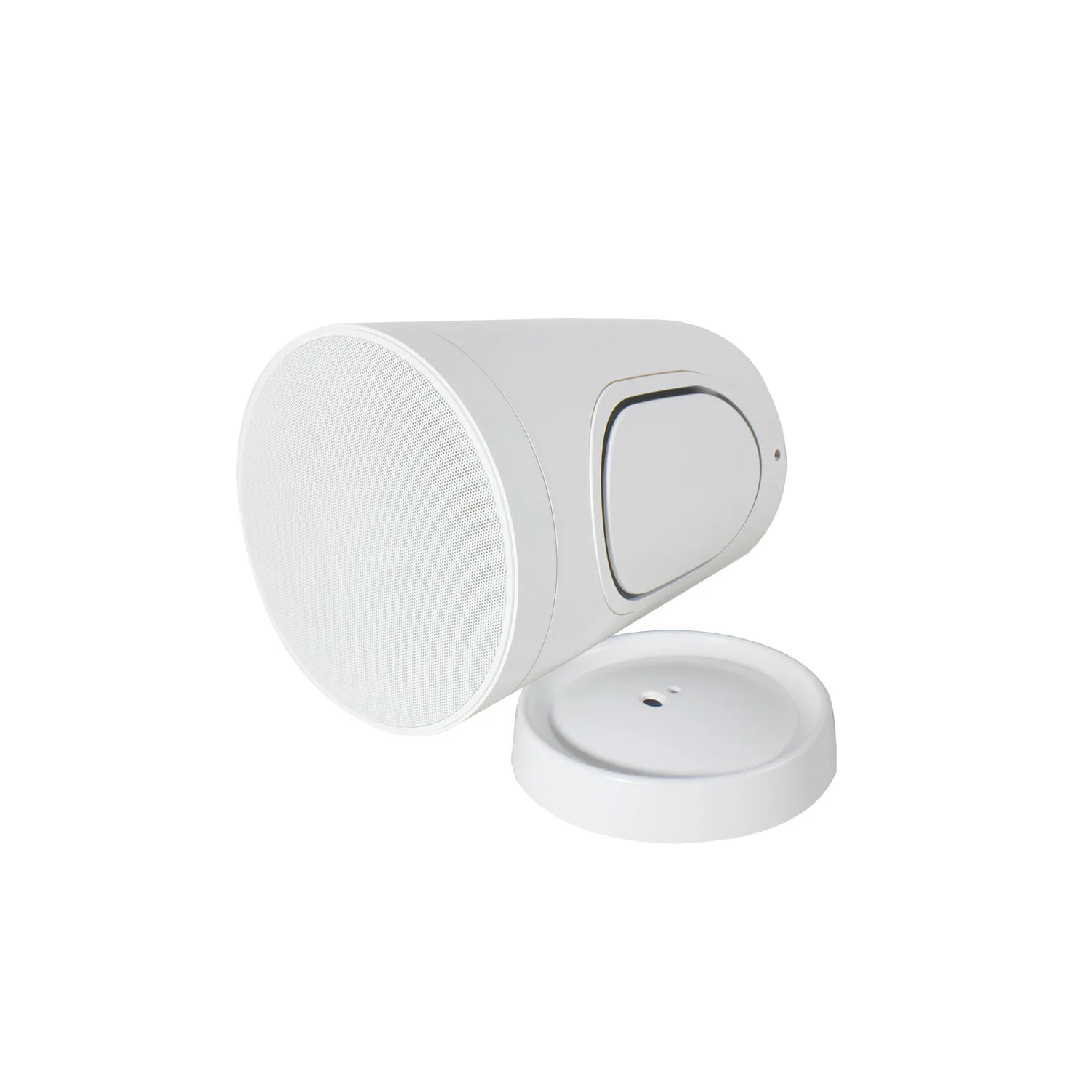

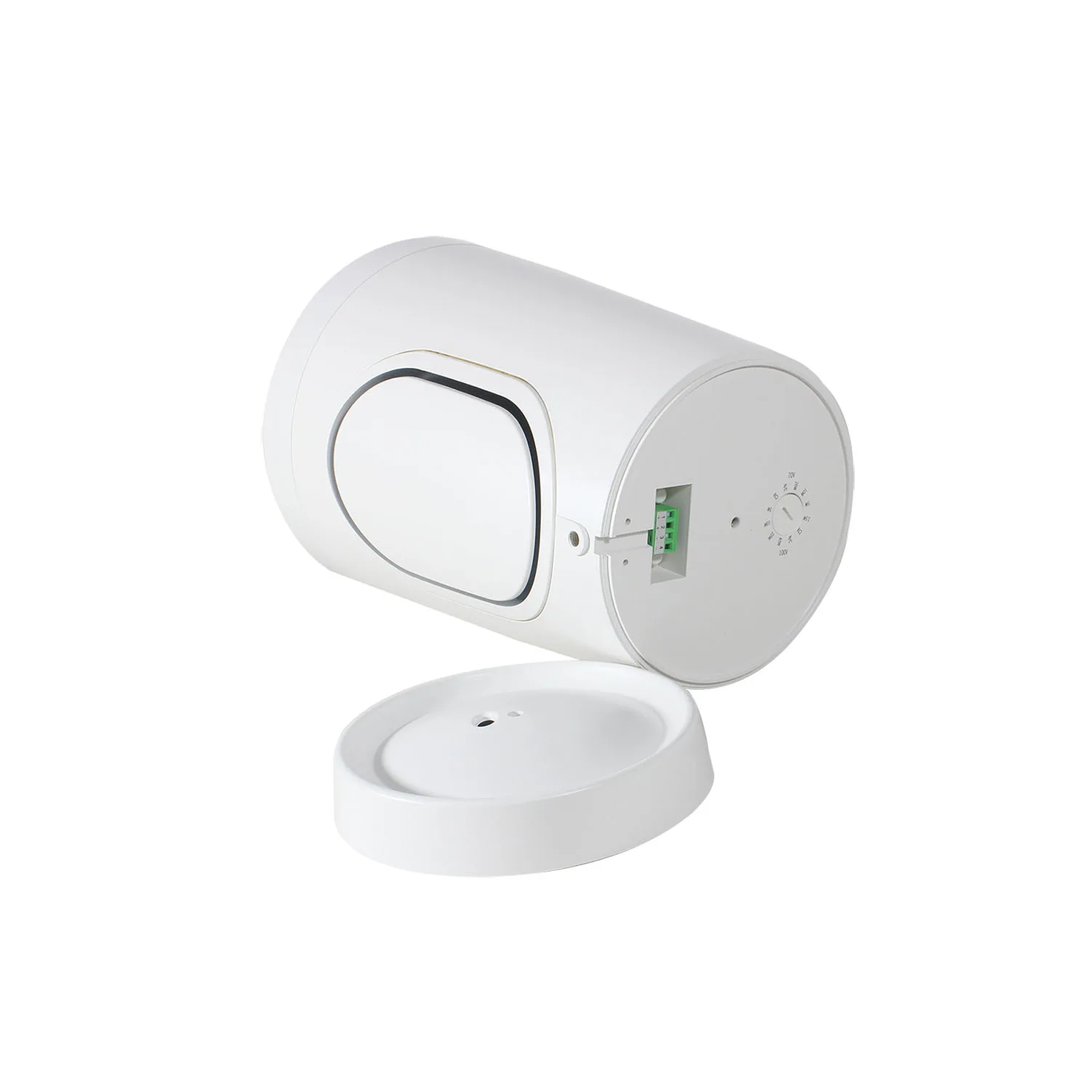

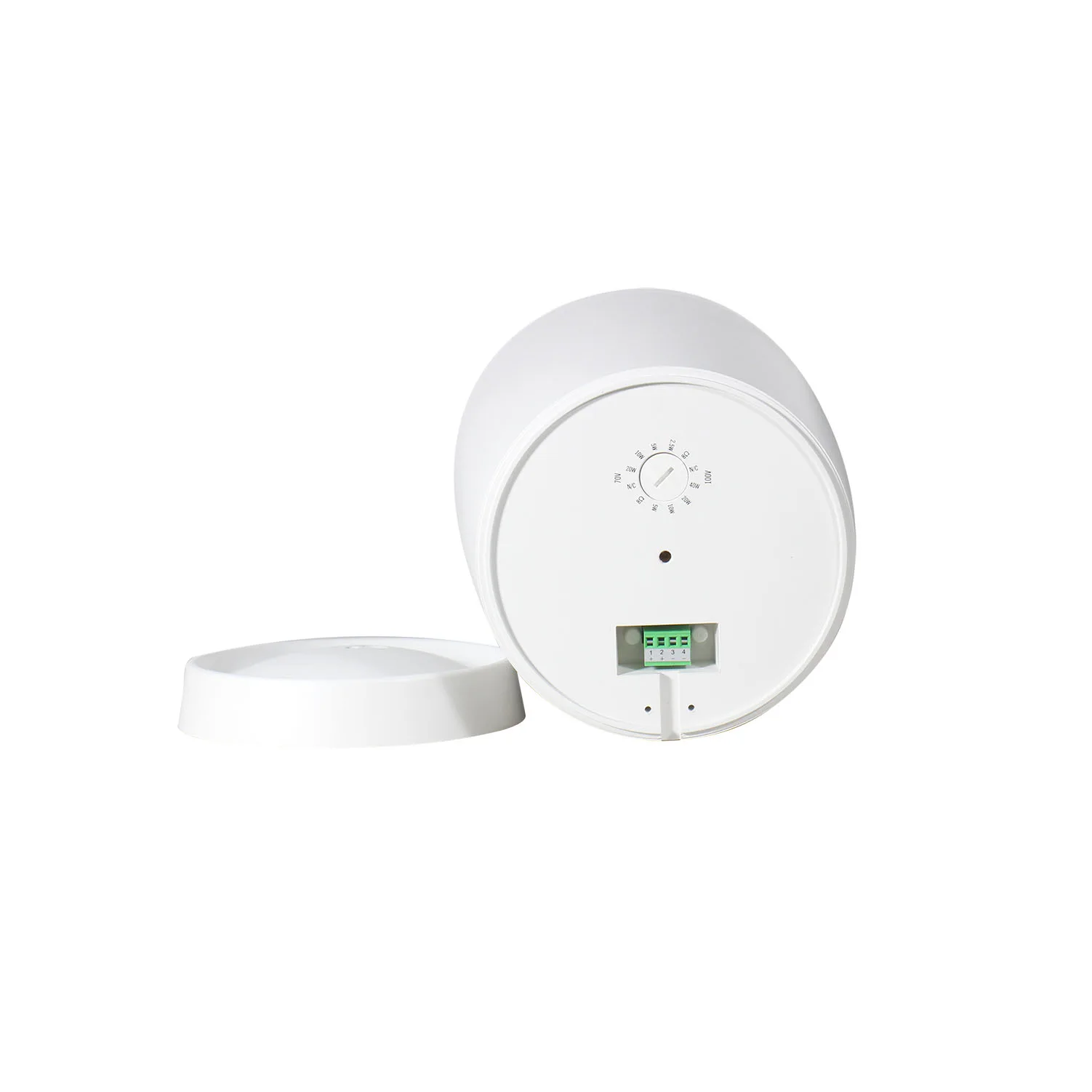

Pendant Speaker with OBE
الكود: EC-440W/B / HWB-550W/B / HWB-660W/B / HWB-880W/B
Innovative & unique design Wide opening angle Ceiling suspension or wall mount optional With high-quality polypropylene enclosure Adopt acoustic engineering craftsmanship Provide premium performance for demanding applications Suitable for bars, restaurants, retail, education, public facilities, corporate spaces, sport facilities W: White Color,B: Black Color
المواصفات الفنية
Model
EC-440W/B / HWB-550W/B / HWB-660W/B / HWB-880W/B
Tweeter
0.75”(20 mm) Silk soft dome / 1”(25mm) Silk soft dome / 1” (25mm) Silk soft dome / 1.1”(28 mm) Silk soft dome
Woofer
4” (100 mm) Graphite Cone,Rubber Surround / 5” (125mm) Graphite Cone,Rubber Surround / 6.5” (165 mm) Graphite Cone,Rubber Surround / 8” (203 mm) Graphite Cone,Rubber Surround
Frequency Range+/-3
80 Hz-20k Hz / 50 Hz-20k Hz / 47 Hz-20k Hz / 37 Hz-20k Hz
Power Handing RMS
40W program / 60W program / 60W program / 80W program
Sensitivity
83 dB / 84 dB / 85 dB / 86 dB
Taps
8Ω,0,20W,10W,5W,2.5W / 8Ω,0,30W,15W,7.5W,3.75W / 8Ω,0,40W,20W,10W,5W / 8Ω,0,50W,25W,12.5W,6.25W
Impedance
8 ohm / 8 ohm / 8 ohm / 8 ohm
Termination
Pluggable Terminal Blocks / Standard pressed connector / Pluggable Terminal Blocks / Pluggable Terminal Blocks
Attachment
Brackets grille / Brackets grille / Safety rope / Safety rope
Dimensions H*W
235mm x 147.8mm / 268mm x 183.5mm / 282mm x 214mm / 375mm x 253.4mm
الاستخدامات
Innovative & unique design
Wide opening angle
Ceiling suspension or wall mount optional
With high-quality polypropylene enclosure
Adopt acoustic engineering craftsmanship
Provide premium performance for demanding applications
Suitable for bars, restaurants, retail, education, public facilities, corporate spaces, sport facilities
W: White Color,B: Black Color
