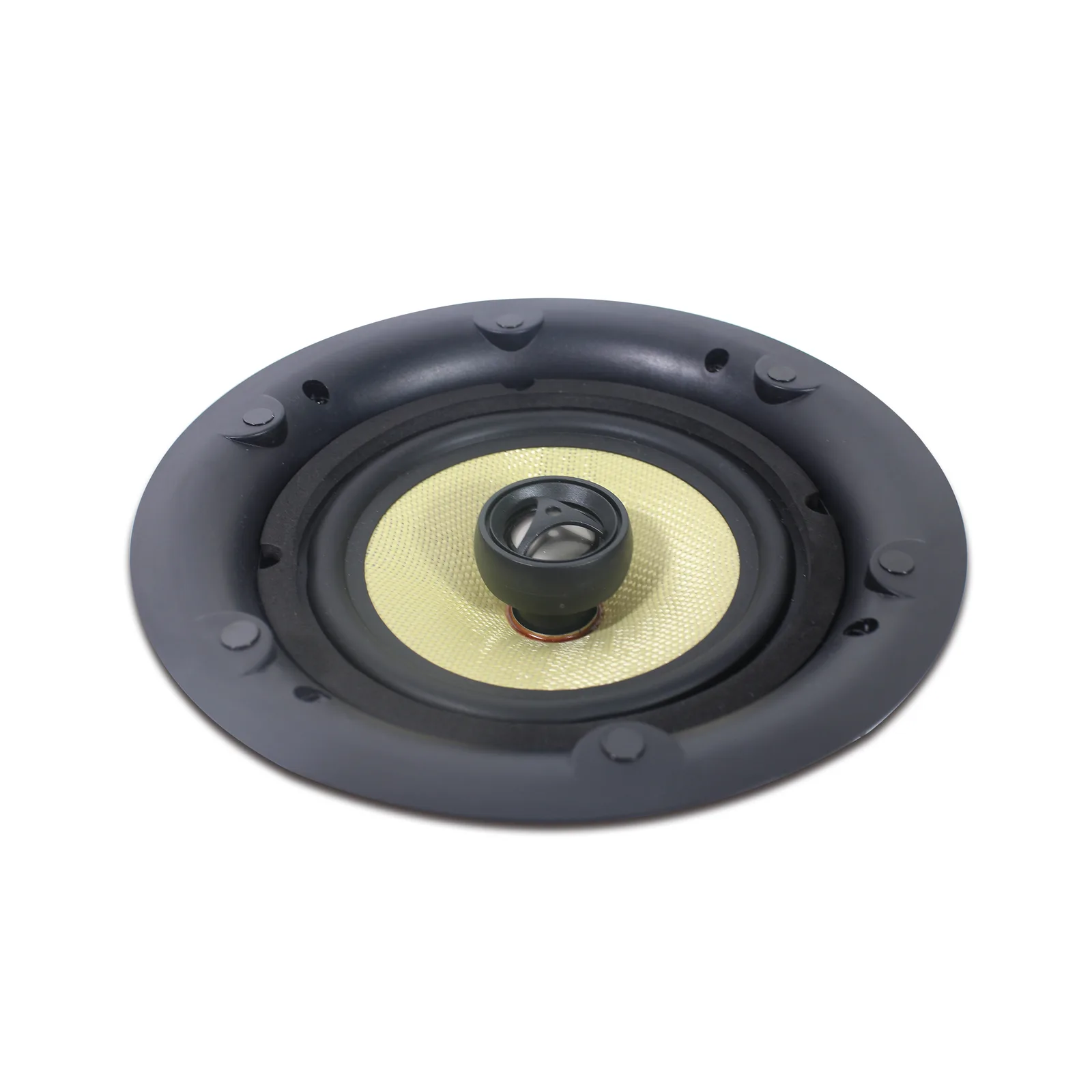

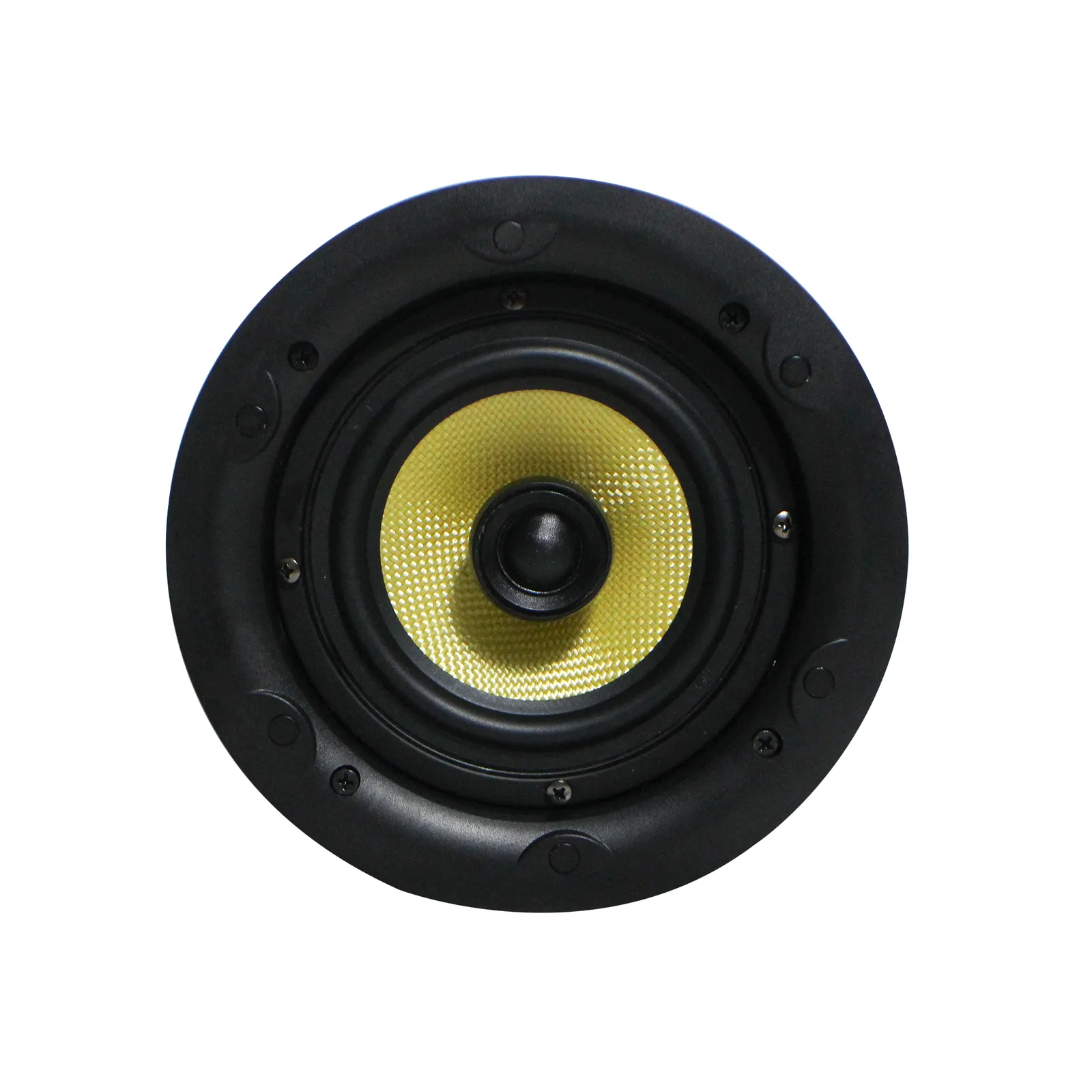

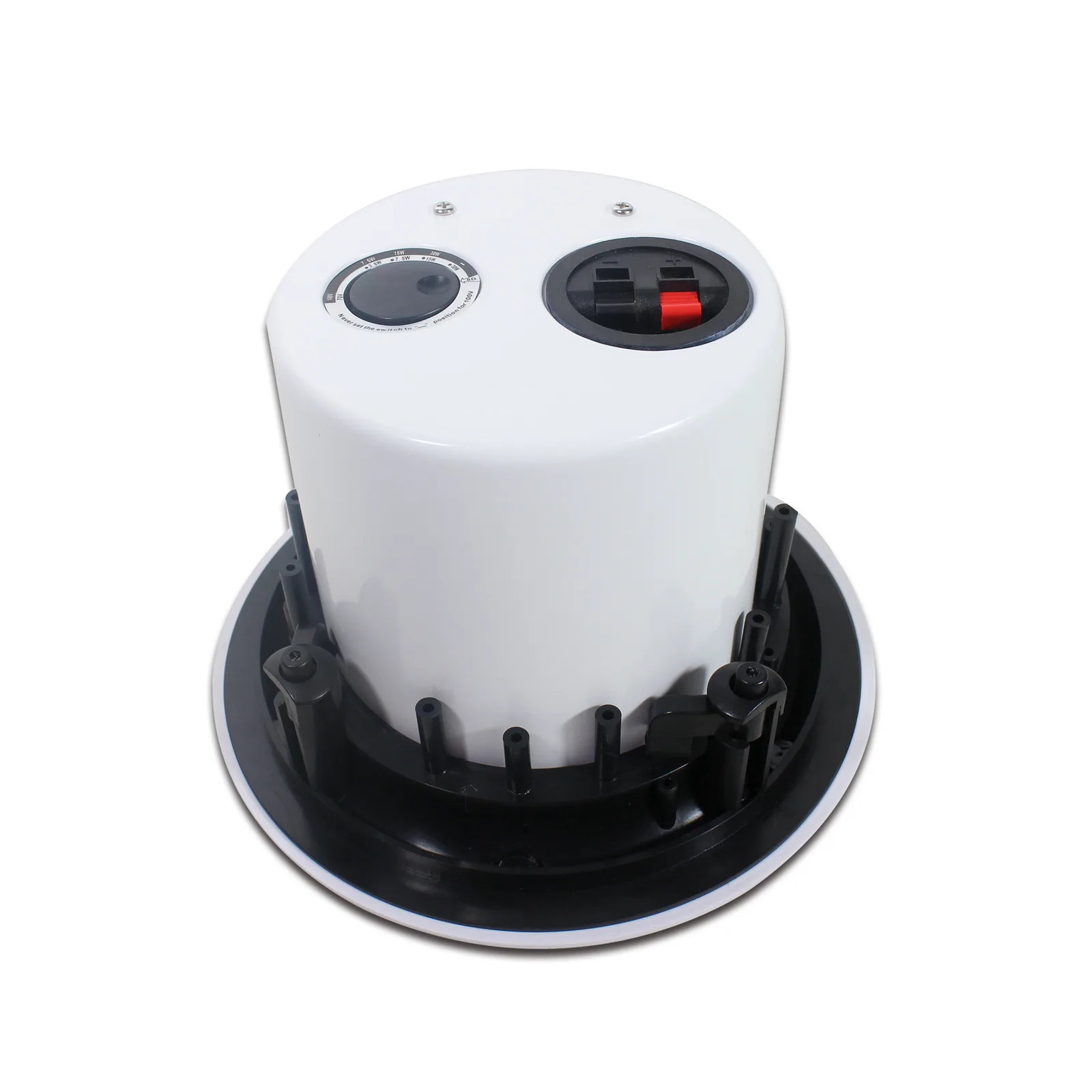

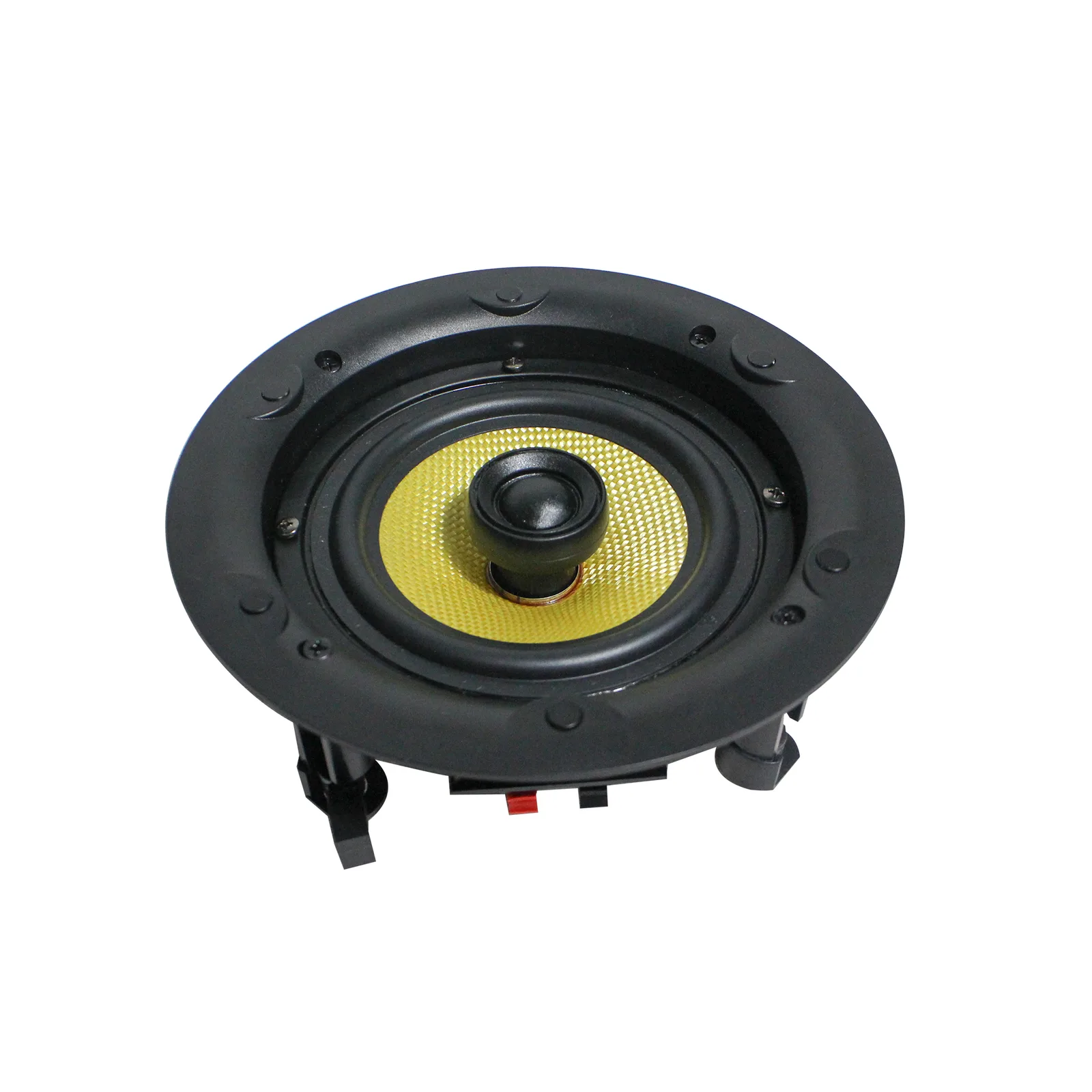

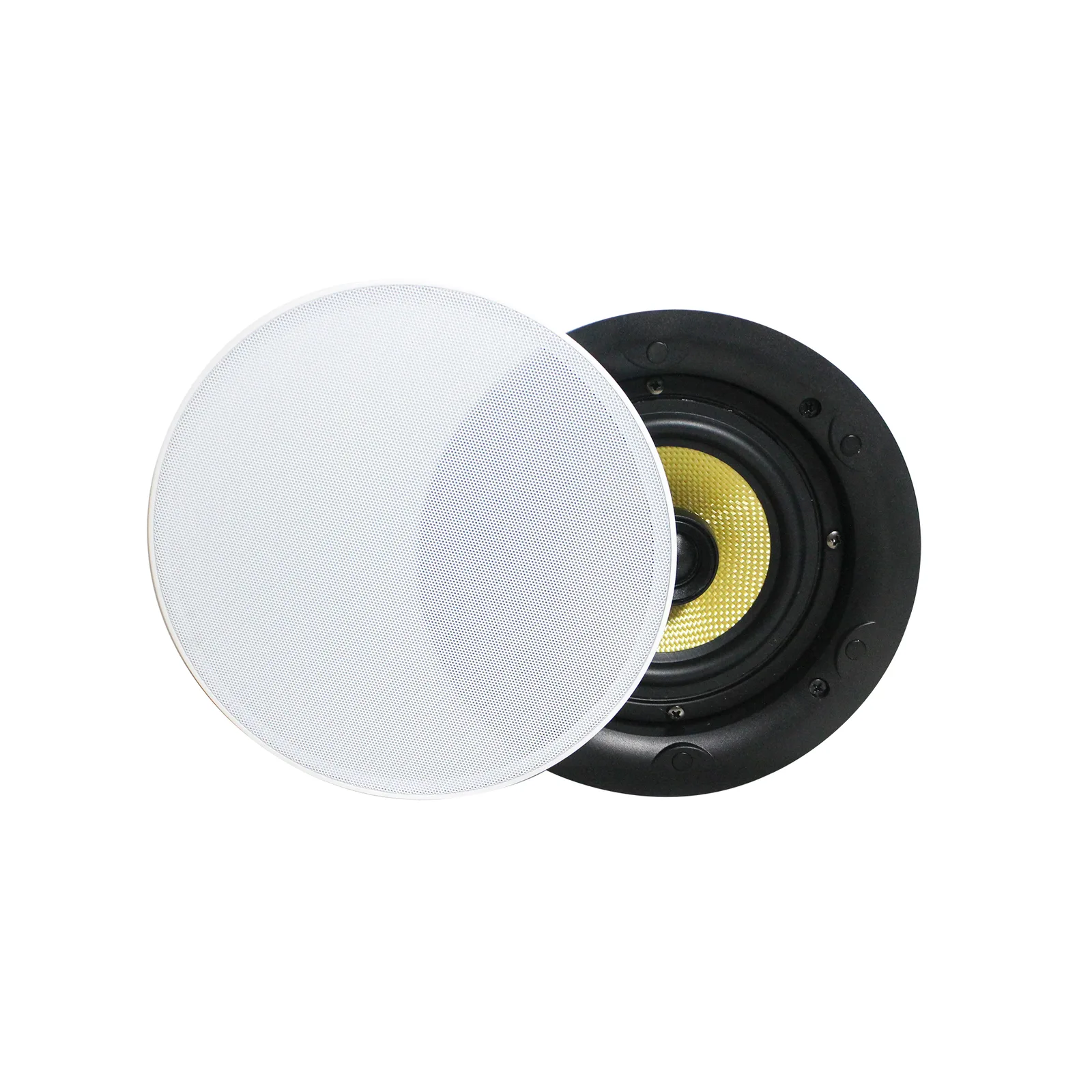

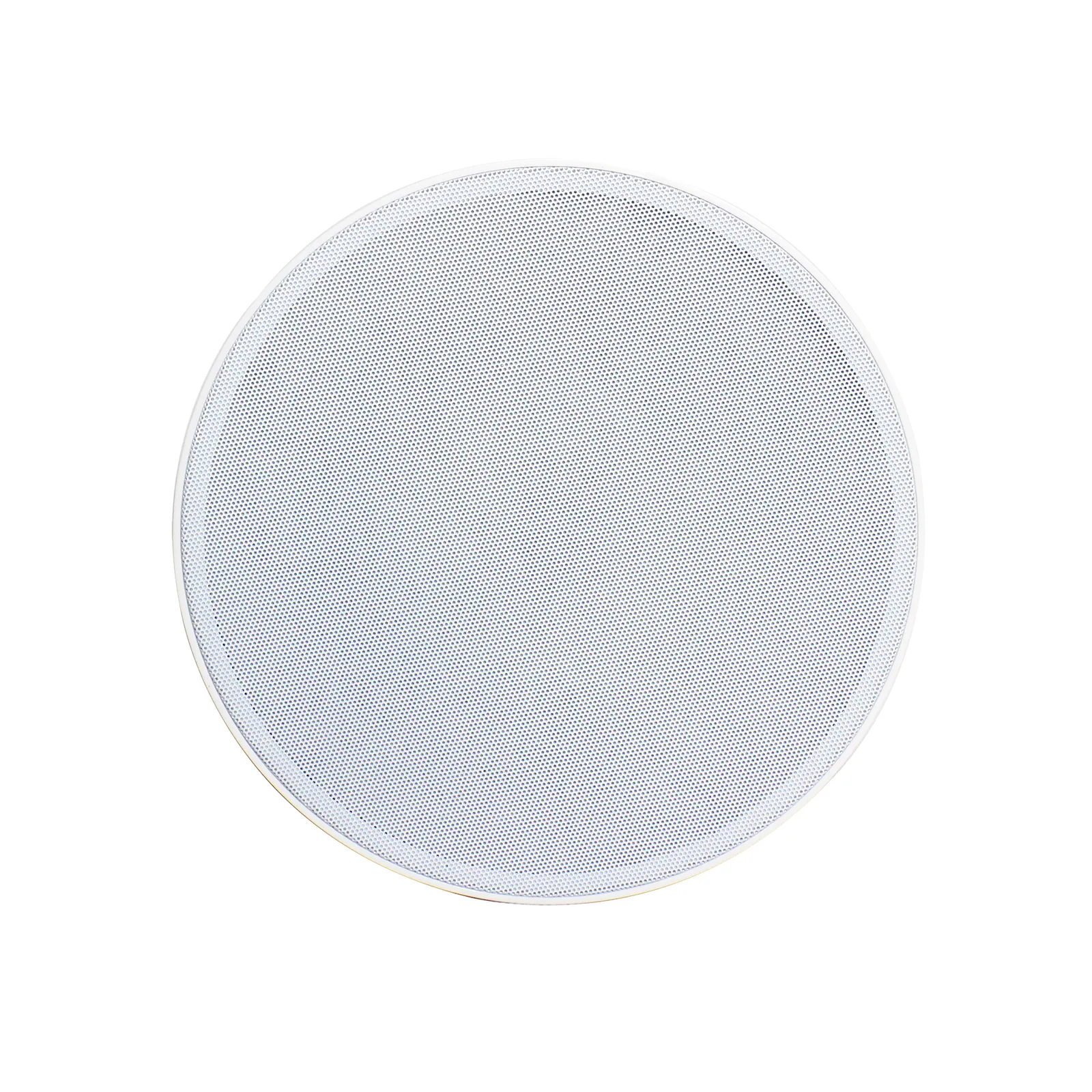

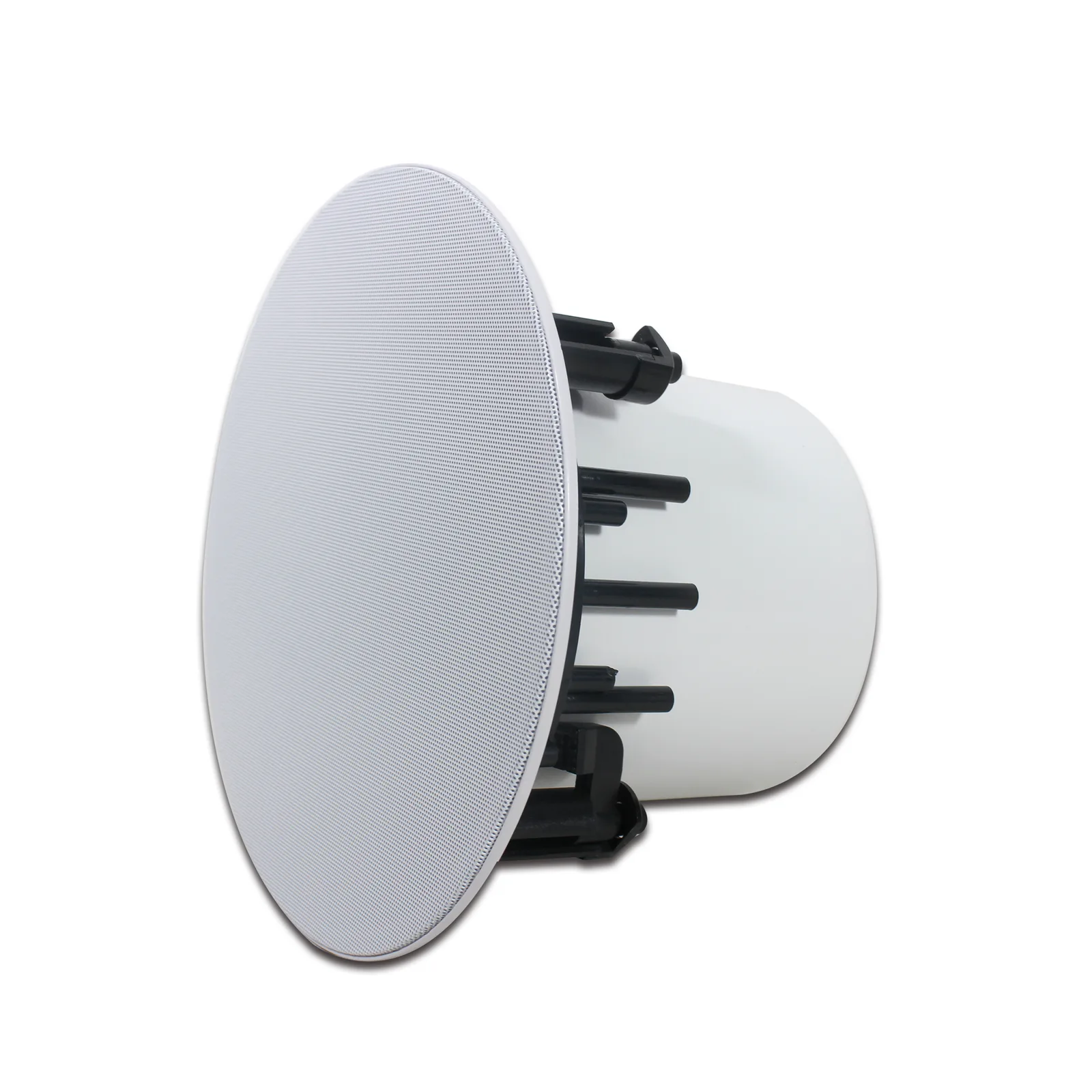

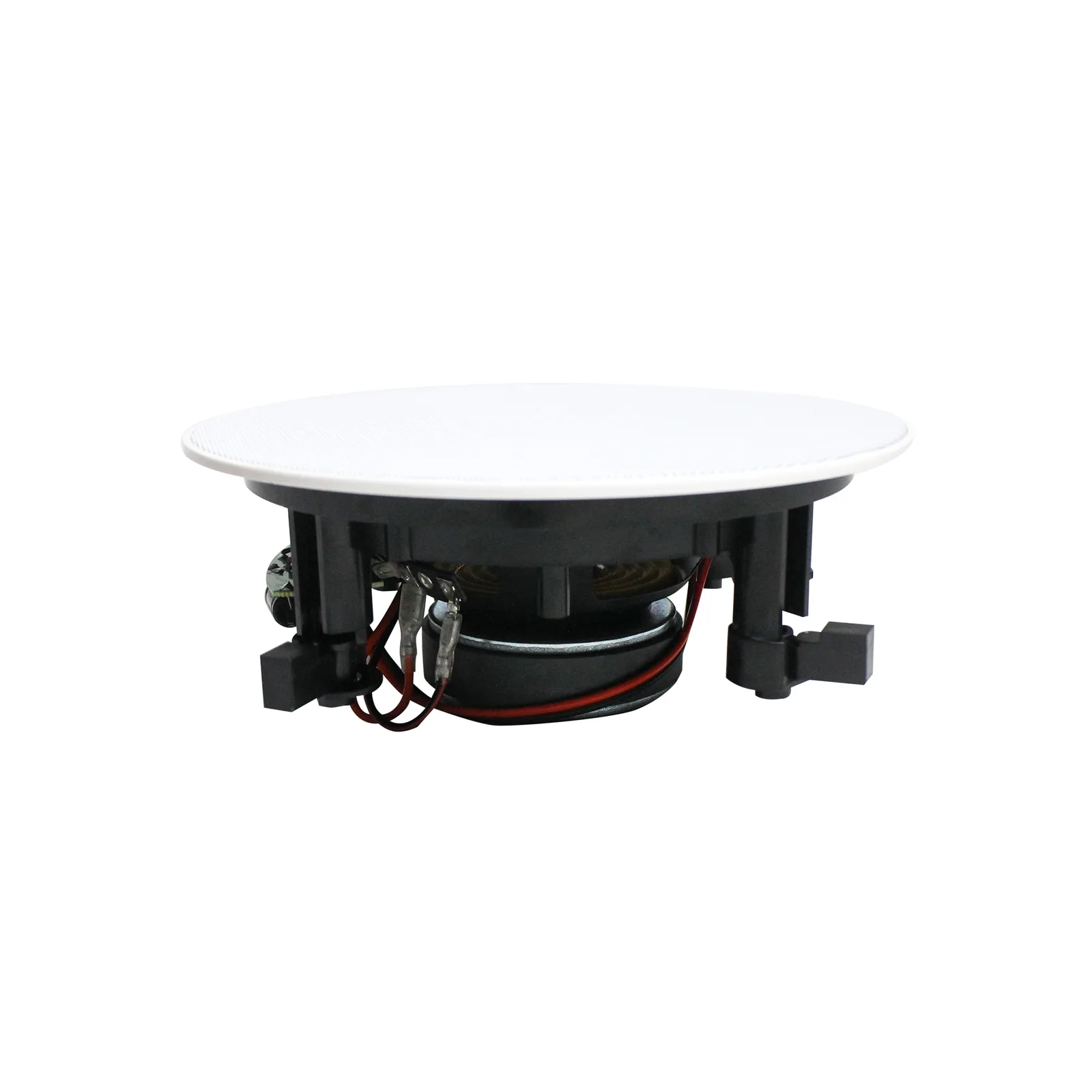

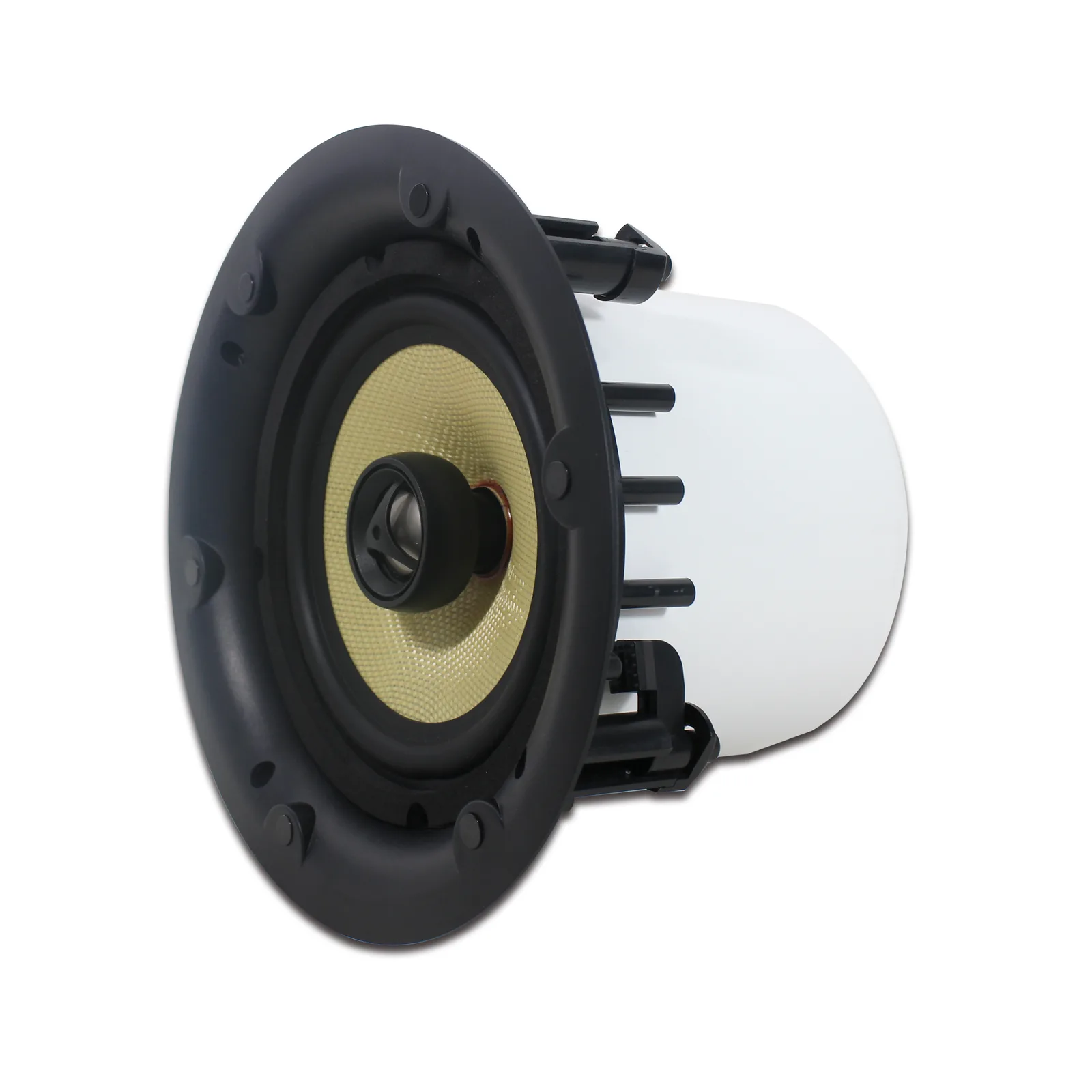

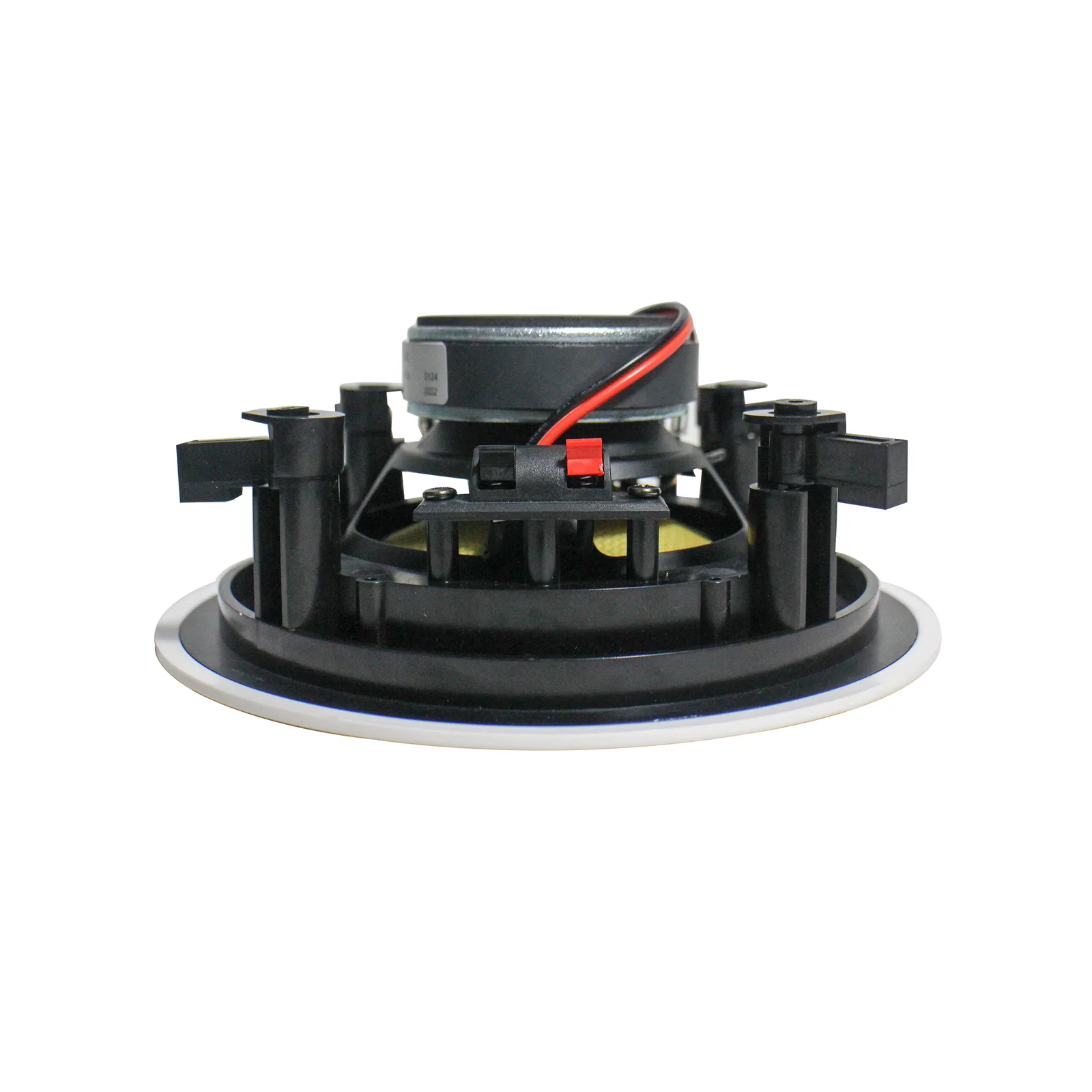

Rimless Ceiling Speaker with or without Dome
الكود: EC-520LT/CP-520LTH / CP-630LT/CP-630LTH / CP-840LT/CP-840LTH
Features: ABS in celing speaker at high perfomance Availabe in 5. 6. and 8 inch With 100V line transfomer Good for PA and BGM
المواصفات الفنية
MODEL
EC-520LT/CP-520LTH / CP-630LT/CP-630LTH / CP-840LT/CP-840LTH
Power at 100V
5/10/20Wt; 40W at 8ohm / 7.5/15/30W: 60W at 8ohm / 10/20/40W: 80W at 8ohm
Power at 70v
2.5/5/10W;40W at 8ohm / 3.8/7.5/15W:60W at 8ohm / 5/10/20W: 80N at 8ohm
SPU 1W/1M)
89dB / 90dB / 90dB
Max SPL@ IM
100dB / 103dB / 105dB
Fre9. Response
80Hz-20KHz / 50Hz-20KHz / 50Hz-20KHz
Cutout Size
Dia 180mm / Dia 205mm / Dia 255mm
Installation
In ceiling mounted / In ceiling mounted / In celling mounted
Enclosure Material
ABS / ABS / ABS
Weight
1 3Kg / 1.8Kg / 26Kg
Finish
White / White / White
Spoakers

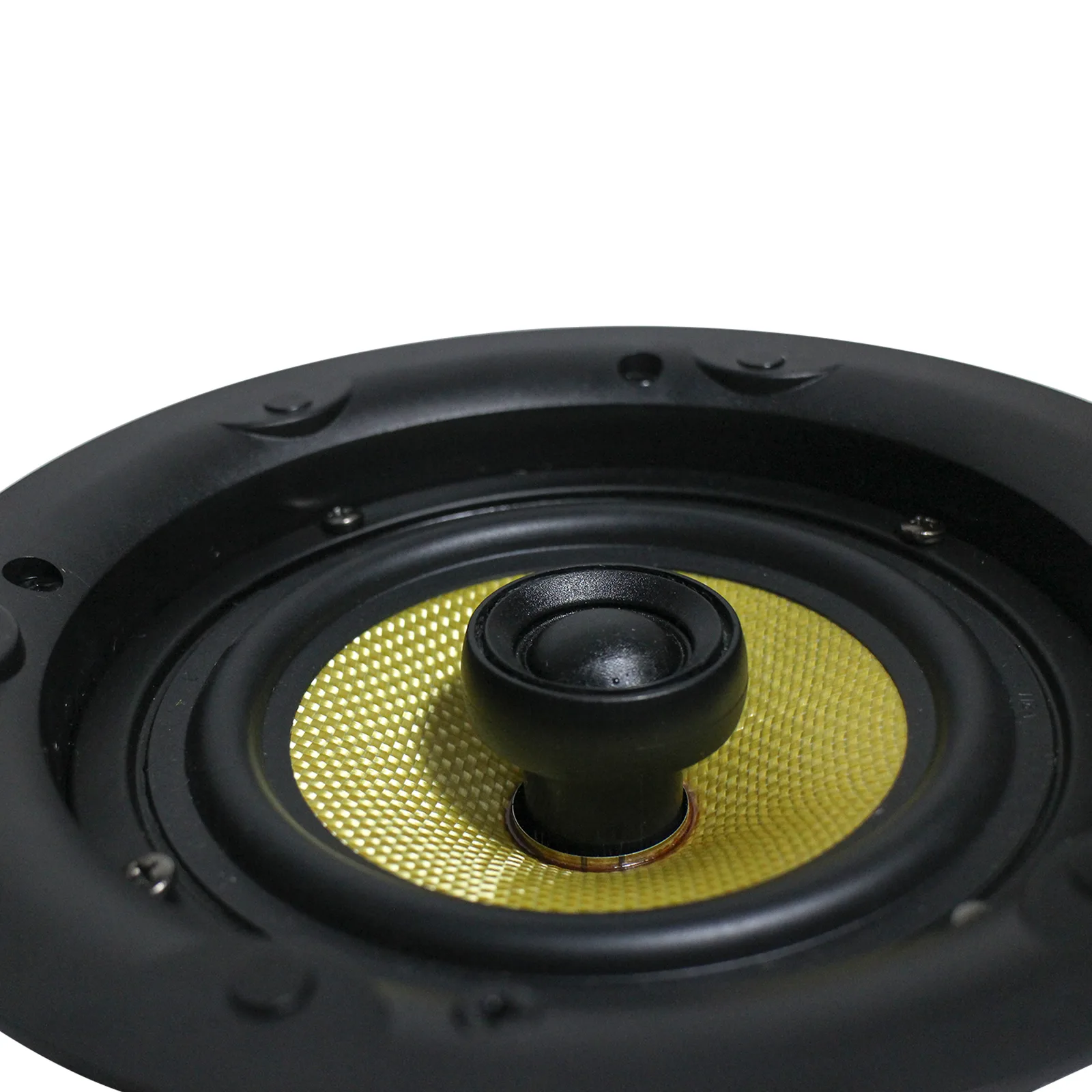

5”coaxiad / 6″ coaxial / 8”coaxial
الاستخدامات
ABS in celing speaker at high perfomance
Availabe in 5. 6. and 8 inch

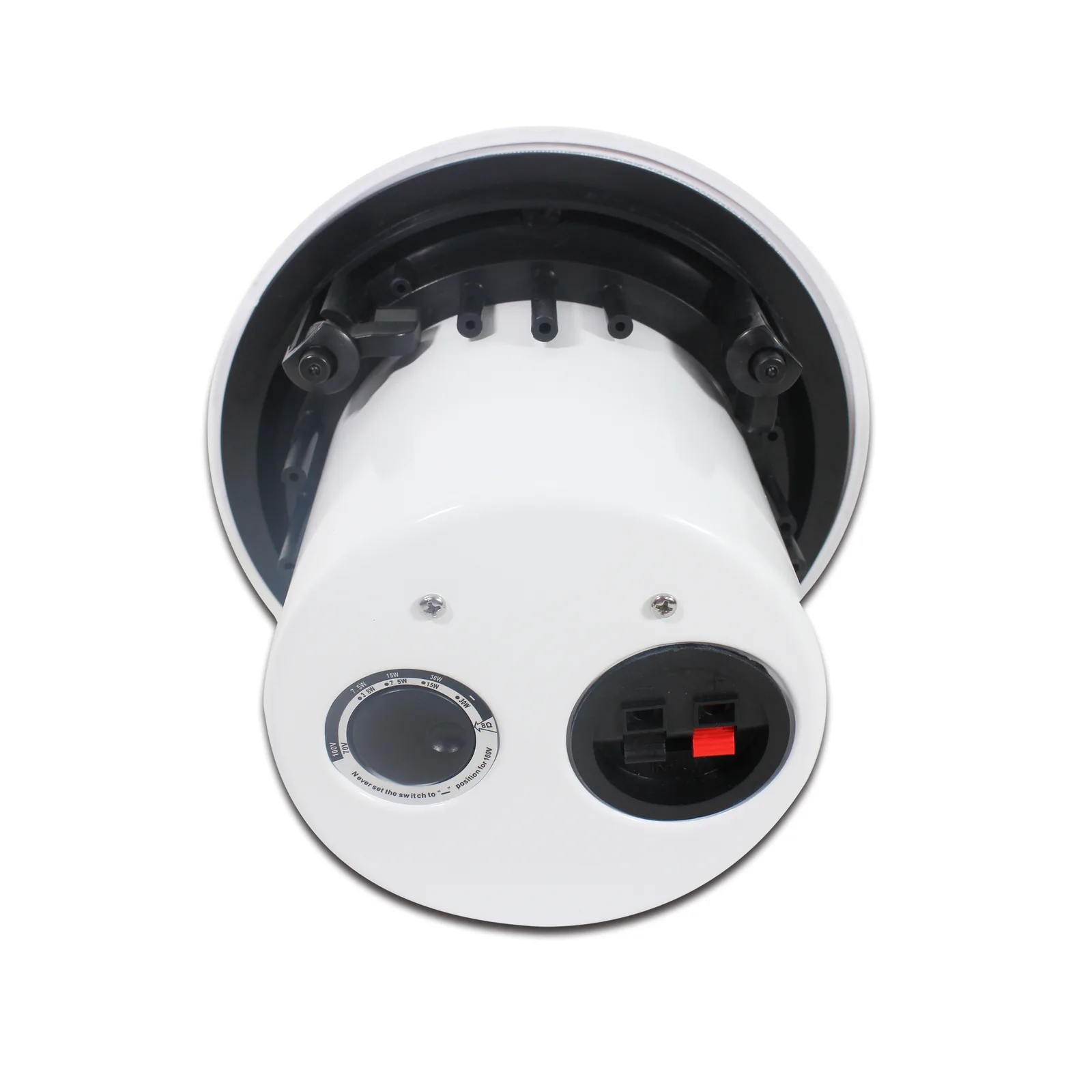

With 100V line transfomer
Good for PA and BGM
