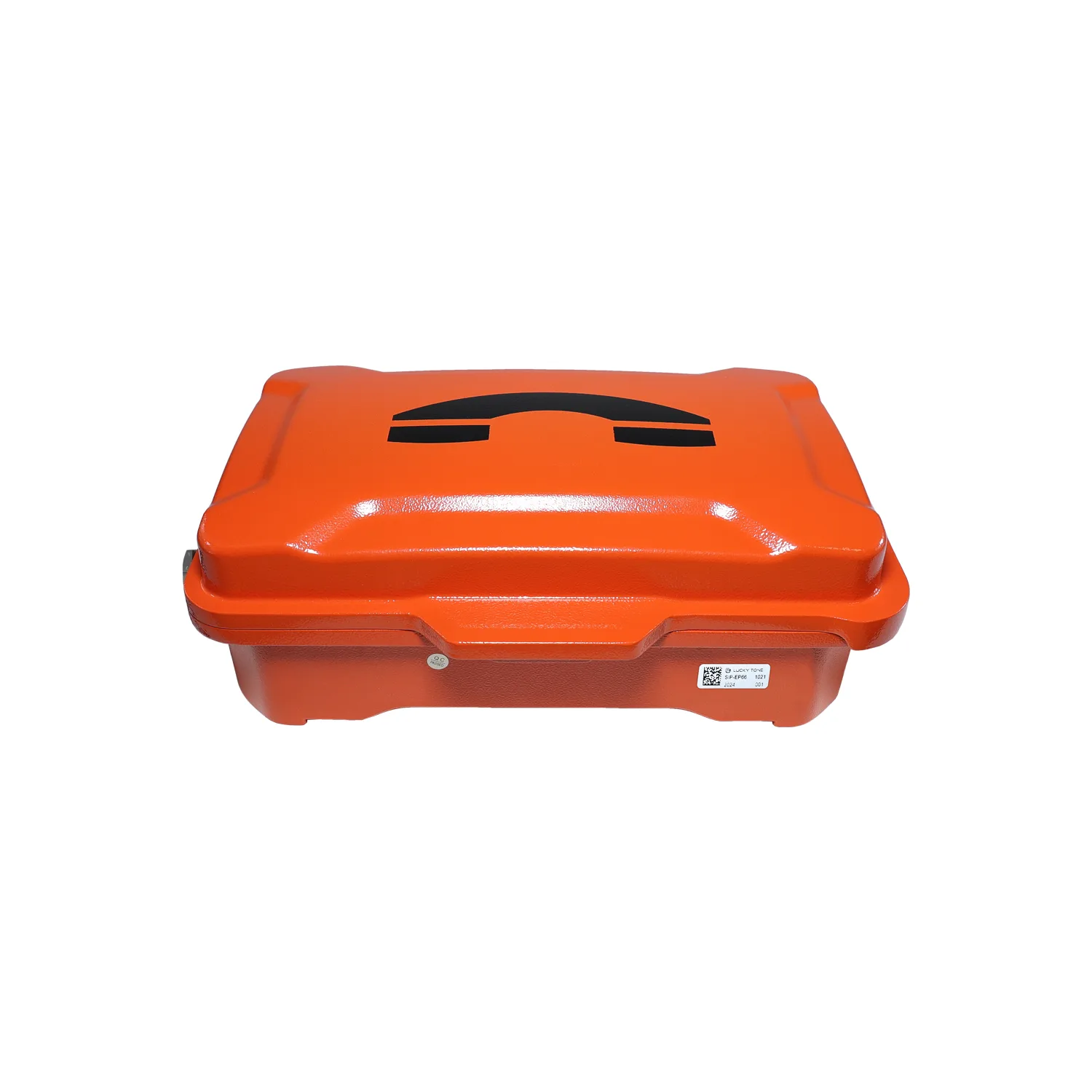

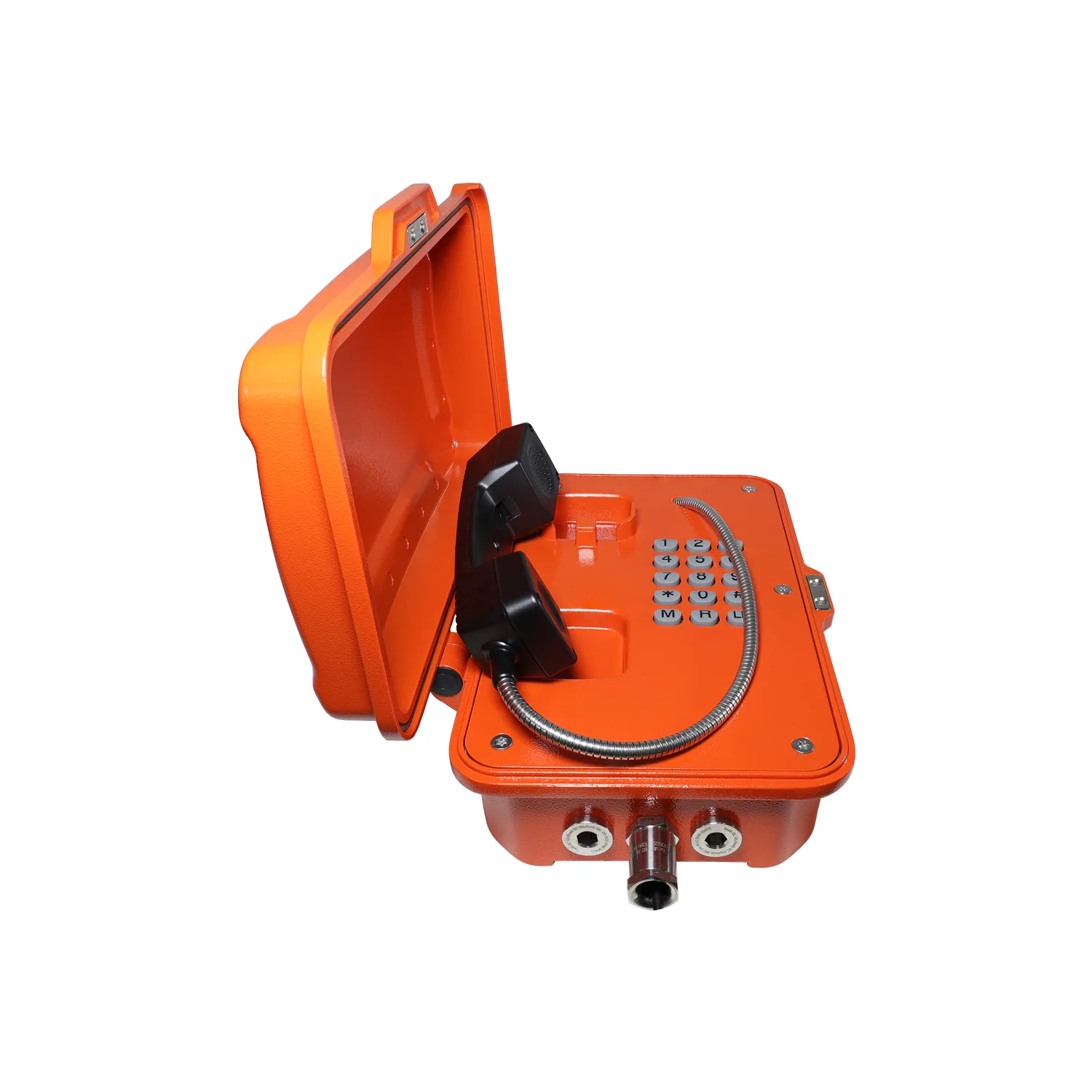

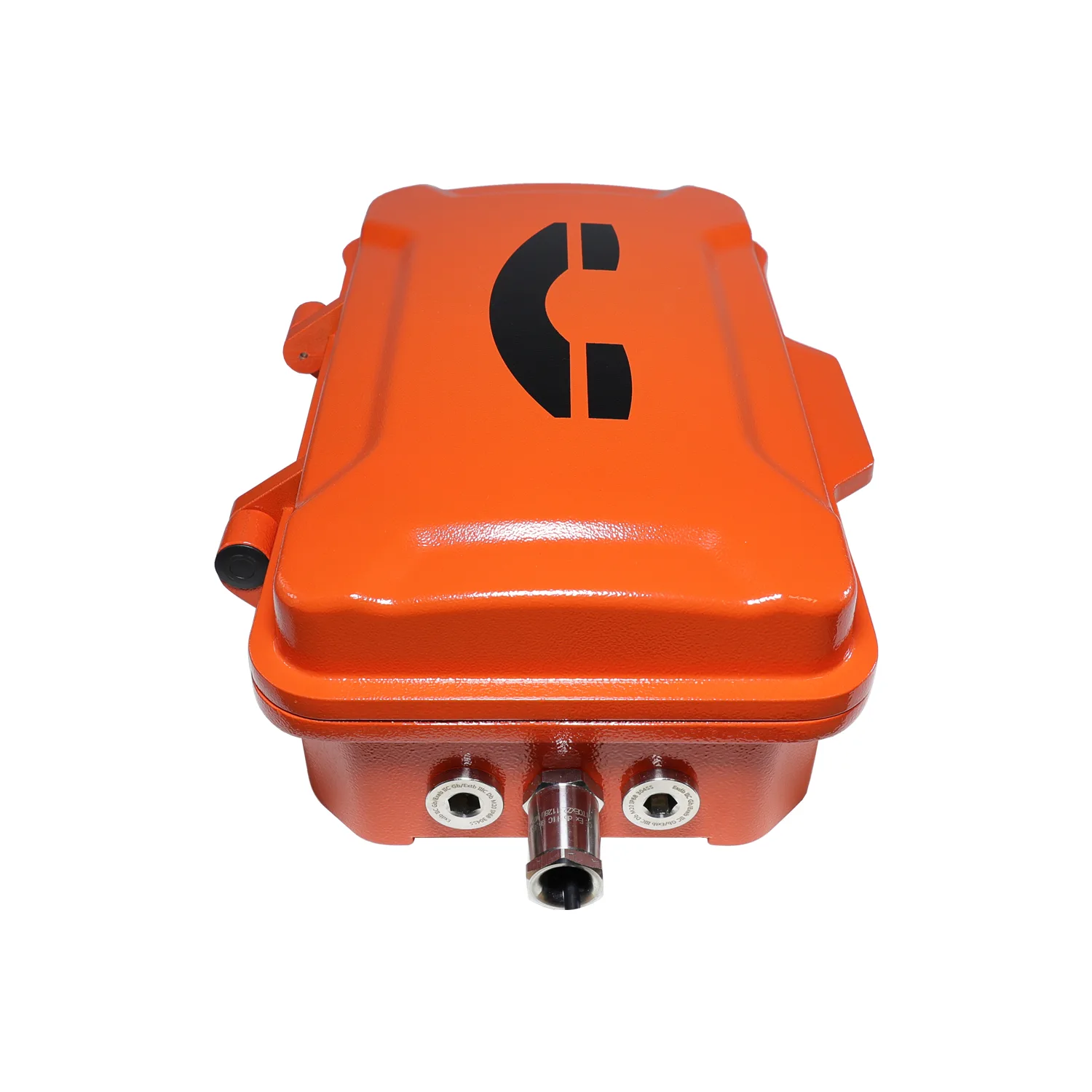

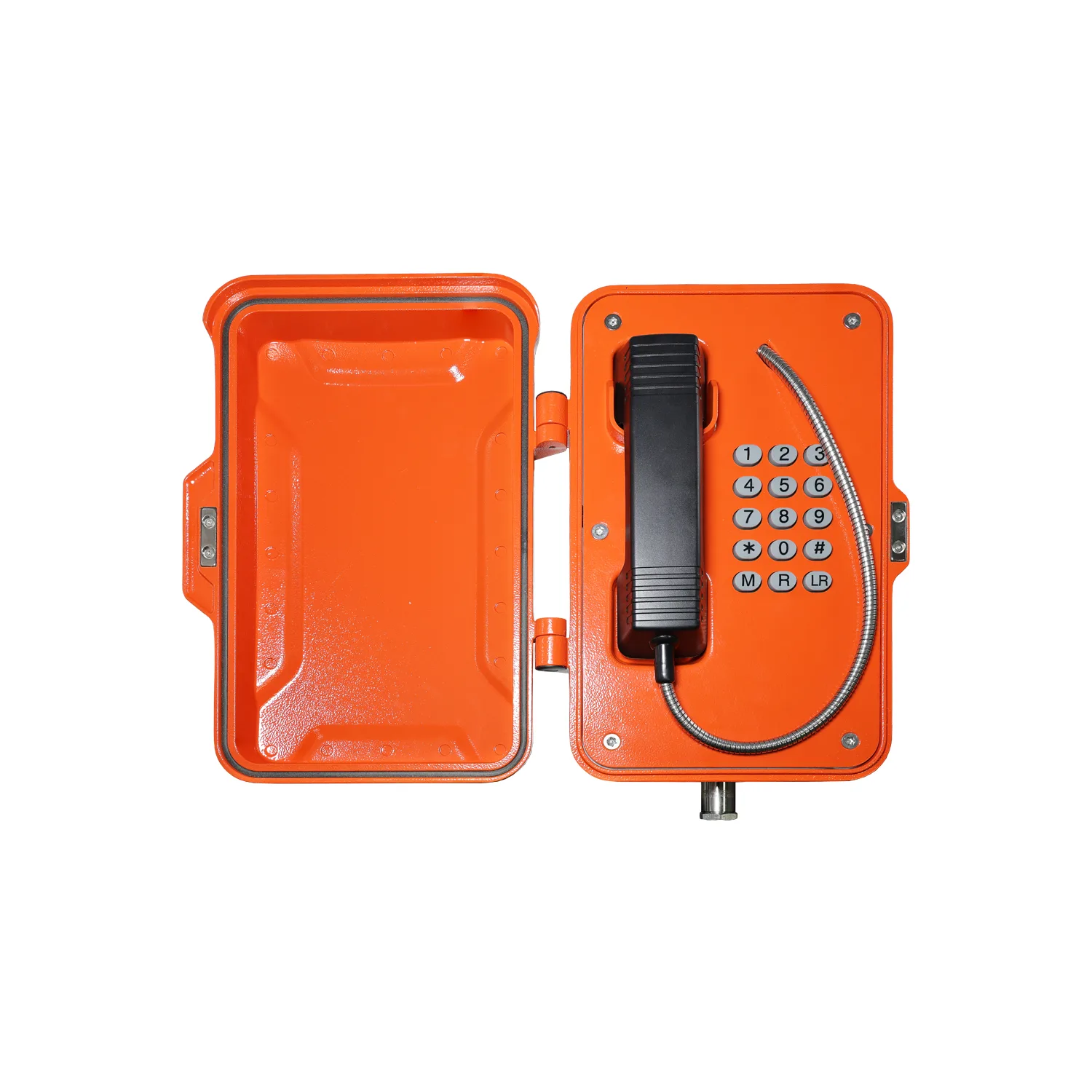

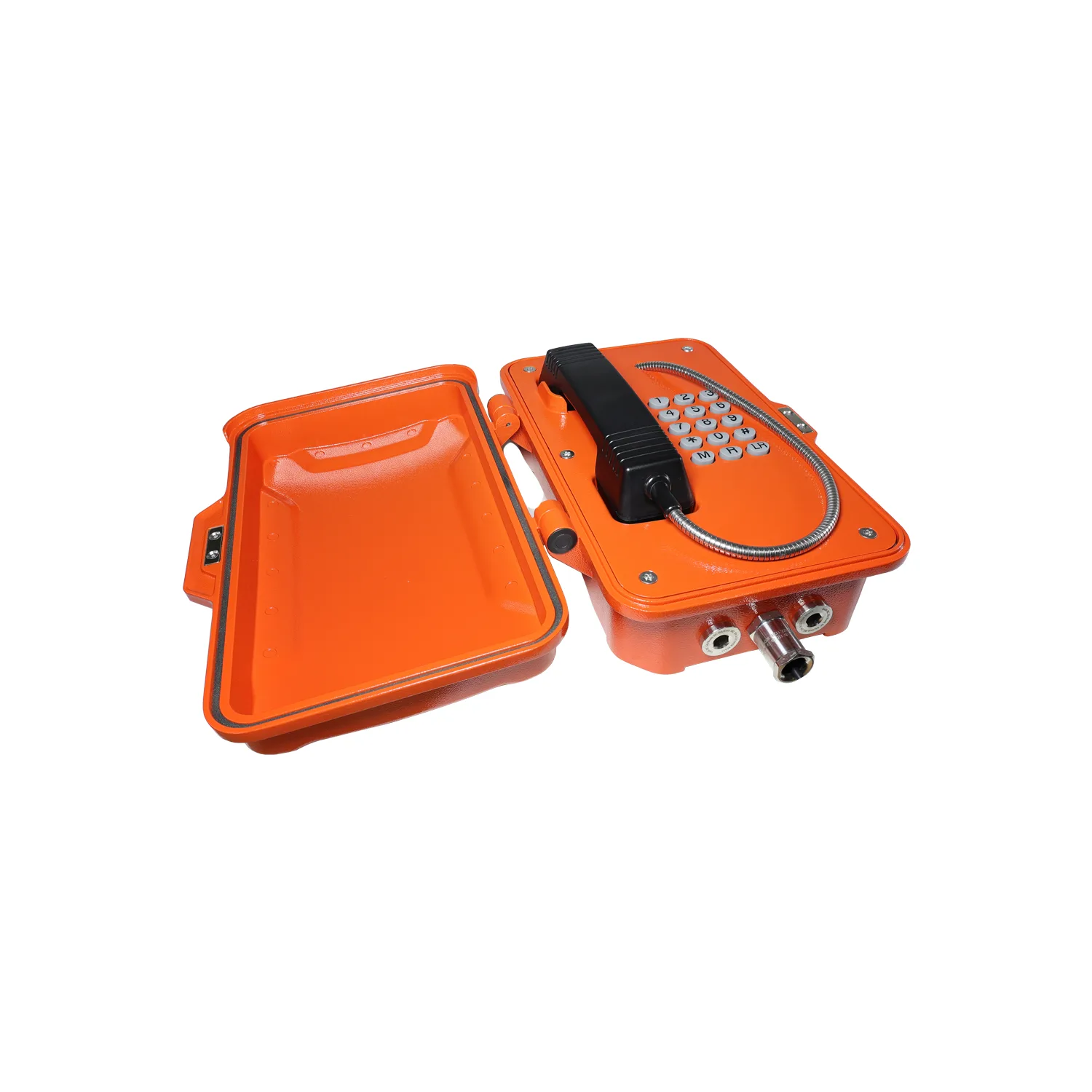

SIP Explosion-Proof Phone

أنظمة الصوت / نظام الصوت الشبكي IP

SIP Explosion-Proof Phone

الكود: EC-EP66

Description The EC-EP66 series adopts a corrosion-resistant, vandal-proof die-cast aluminum waterproof casing, equipped with a magnetic door cover, which completely prevents dust and moisture from entering. This extends the product’s life cycle and enhances its reliability and stability. This phone is suitable for high-speed rail, subways, tunnels, ports, docks, airports, underground pipeline systems, large industrial and mining dispatch centers, power plants, large chemical plants, cement plants, steel mills, ship decks, parks, national nature reserves, and more. Features Compliant with SIP standard for seamless communication. Equipped with a 42cm vandal-resistant armored handset cord for enhanced durability. Powered by 12V DC or PoE for versatile power options. Built with a rugged die-cast aluminum alloy casing for maximum durability in harsh environments. Full-function keypad for easy and fast use, with an optional waterproof dialing keypad. IP66-rated for excellent protection against water and dust ingress. Designed for wall-mounted installation to save space and enhance security. Features bottom cable entry for a clean and secure wiring setup. Anti-tamper screws to prevent unauthorized disassembly or tampering. Explosion-proof Protection Ex eb ib fib Gb] mb IIc T6/T5 Gb Ex ib fib Db] tb IIIC T80°C/T95°C Db Applicable zones: Zones 1, 2, and 22

المواصفات الفنية

Model
EC-EP66
Protocol
SIP 2.0
Codec
G.711A/u, G.7231 high/low, G.729, G.722
Operating Power
1.5W
Power Supply
100-240VAC, 50-60Hz / DC12V / POE
Network Port
WAN Port: 10/100Base-T RJ-45 for LAN, Auto MDIX LAN Port: 10/100Base- T RJ-45 for PC, Auto MDIX
Speaker Rated Power
1W@8ohm
Operating Temperature
-40°C to +70°C
Storage Temperature
-40°C to +75°C
Protection Level
IP66
Ringer Volume
≥ 90 dB at 1 meter
Hook
Magnetic hook without fork spring
Mean Time Between Failures (MTBF)
More than 50,000 hours
Product dimensions
339x204x126mm
Net weight
5.77kg

الاستخدامات

Compliant with SIP standard for seamless communication.
Equipped with a 42cm vandal-resistant armored handset cord for enhanced durability.
Powered by 12V DC or PoE for versatile power options.
Built with a rugged die-cast aluminum alloy casing for maximum durability in harsh environments.
Full-function keypad for easy and fast use, with an optional waterproof dialing keypad.
IP66-rated for excellent protection against water and dust ingress.
Designed for wall-mounted installation to save space and enhance security.
Features bottom cable entry for a clean and secure wiring setup.
Anti-tamper screws to prevent unauthorized disassembly or tampering.
Ex eb ib fib Gb] mb IIc T6/T5 Gb
Ex ib fib Db] tb IIIC T80°C/T95°C Db
Applicable zones: Zones 1, 2, and 22
