أنظمة الصوت / نظام الصوت الشبكي IP

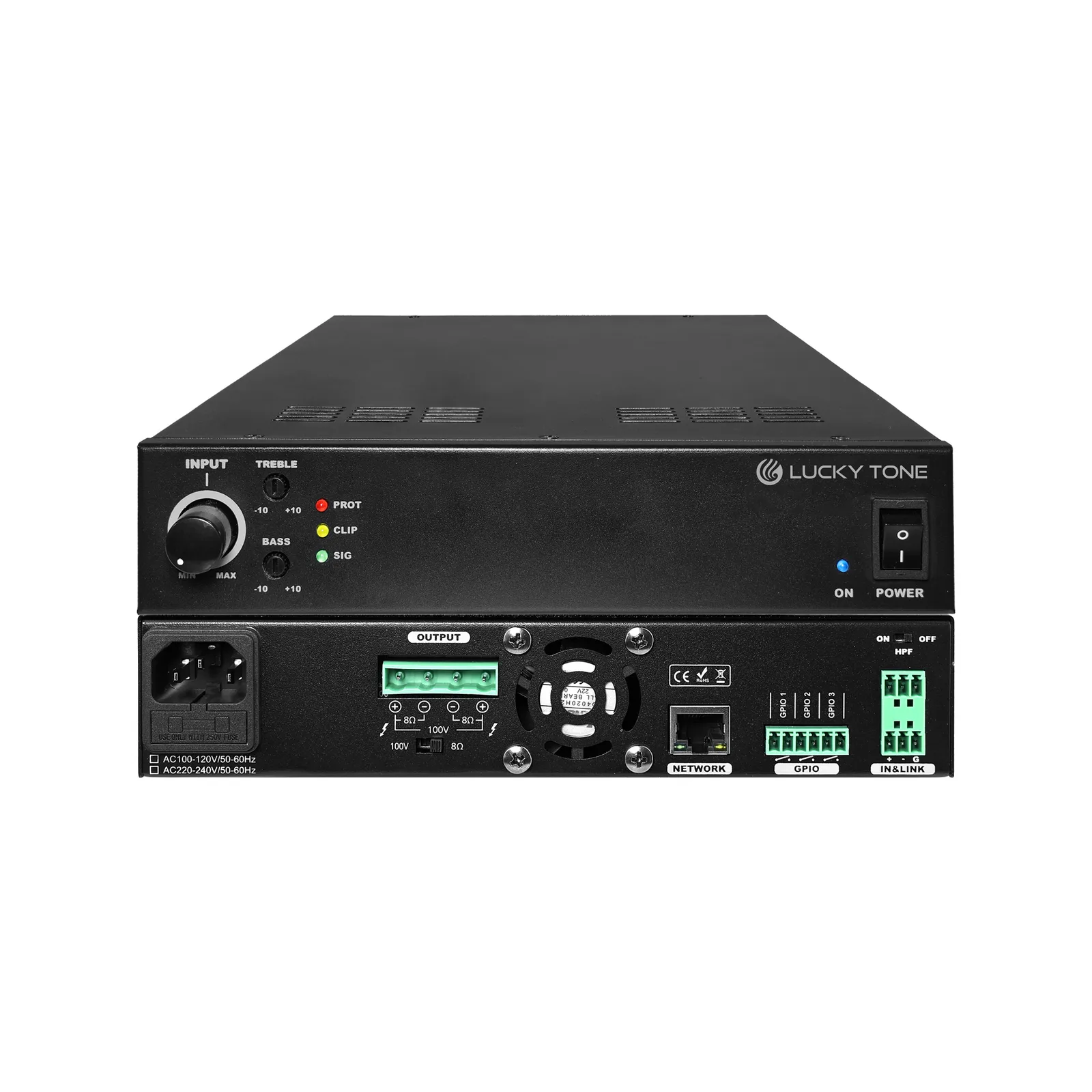

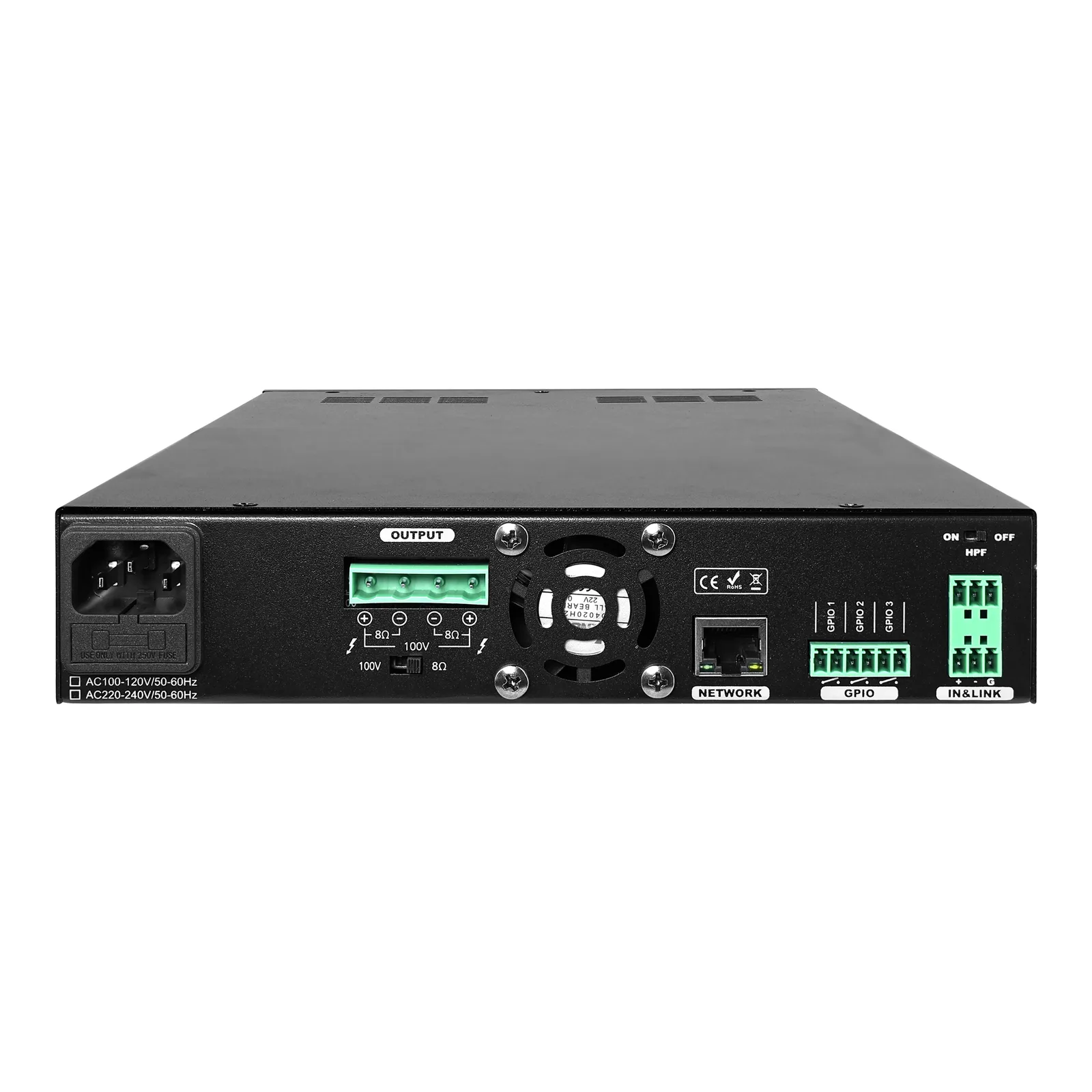

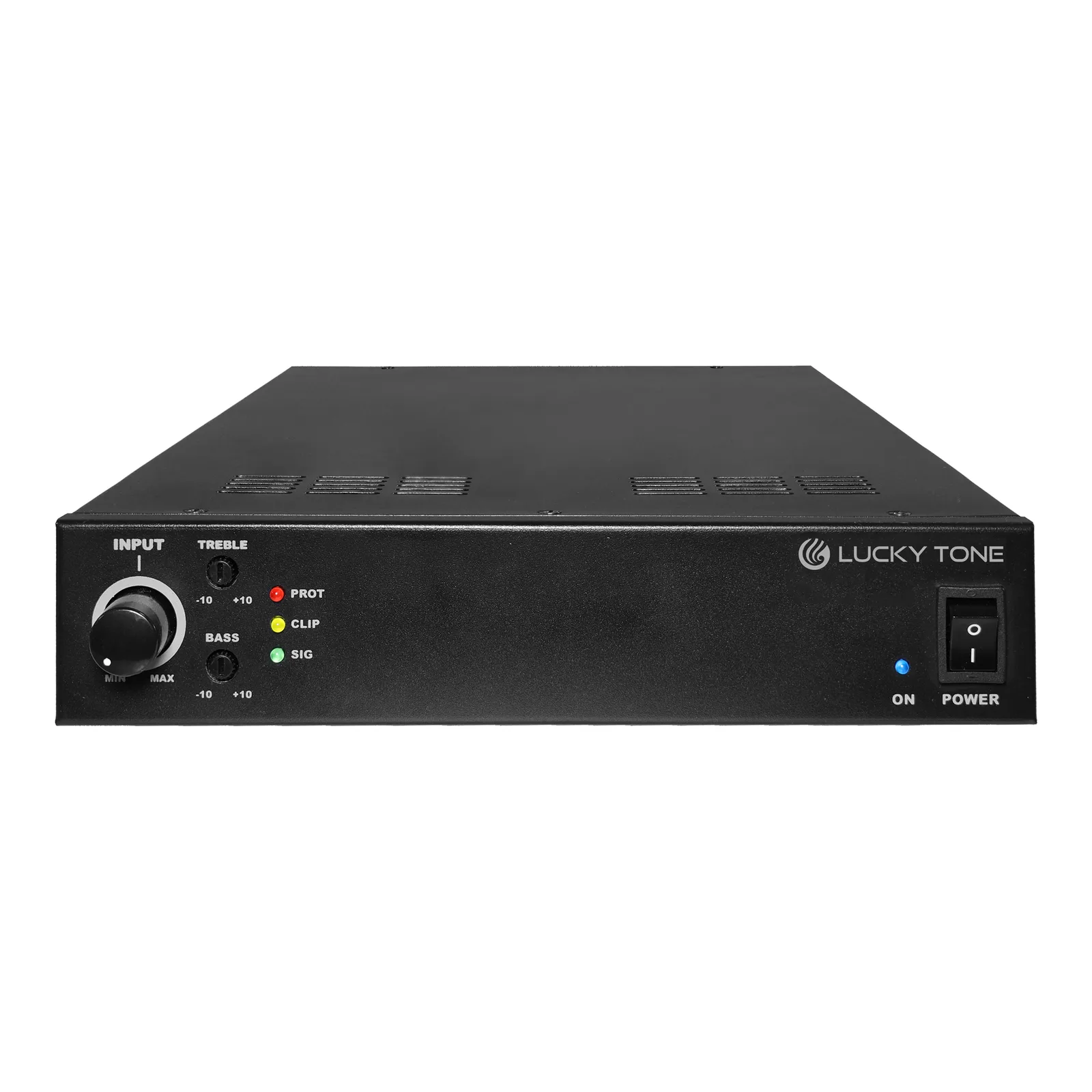

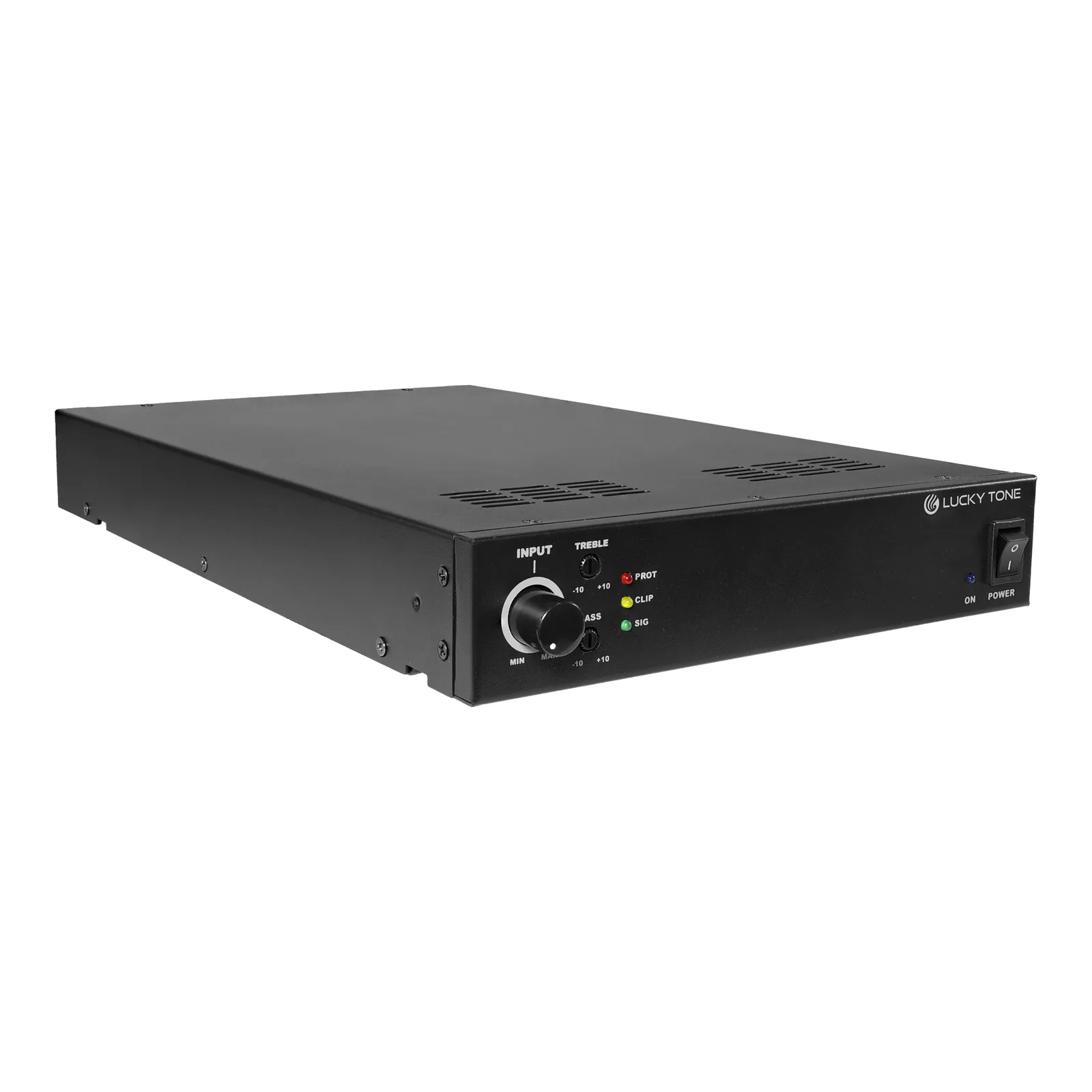

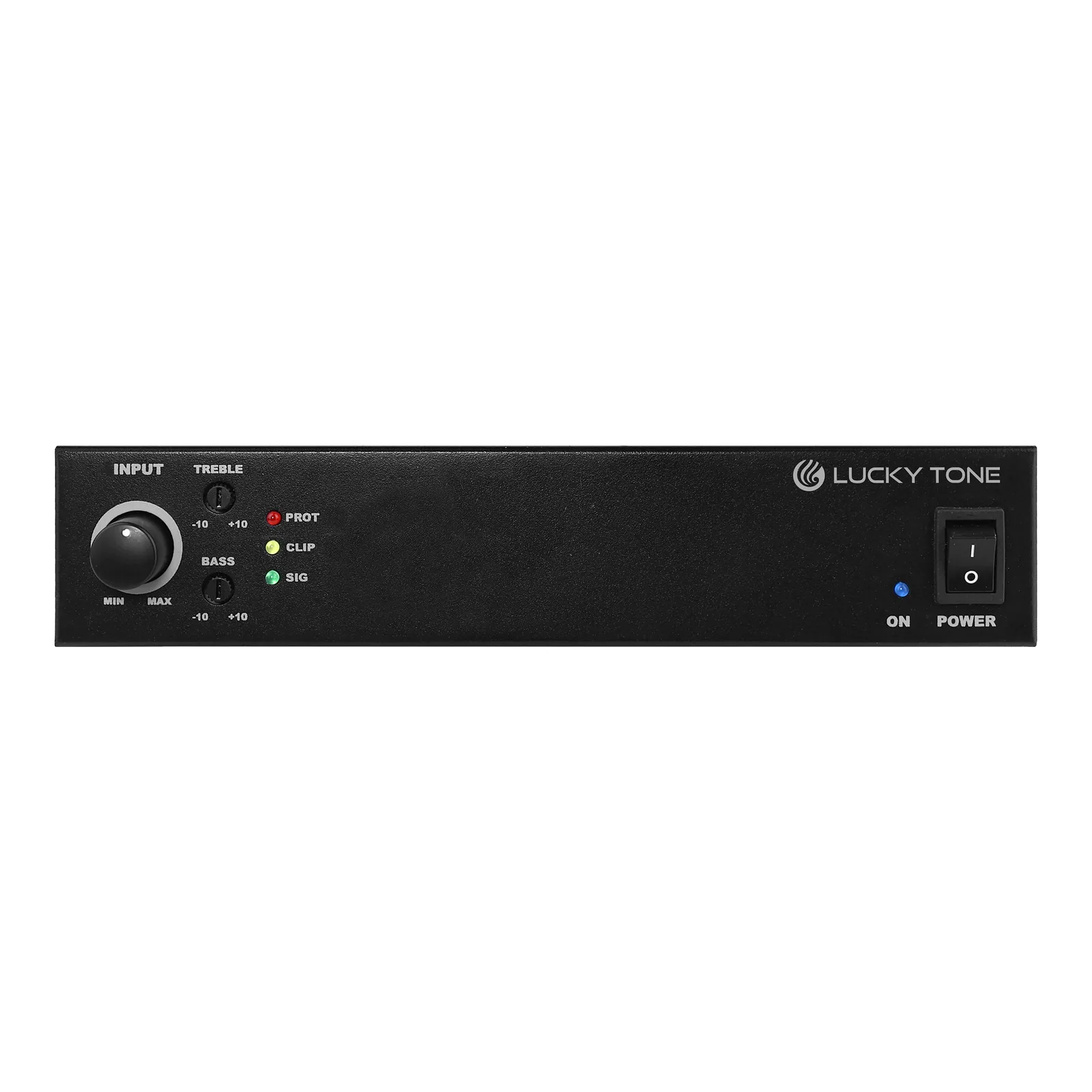

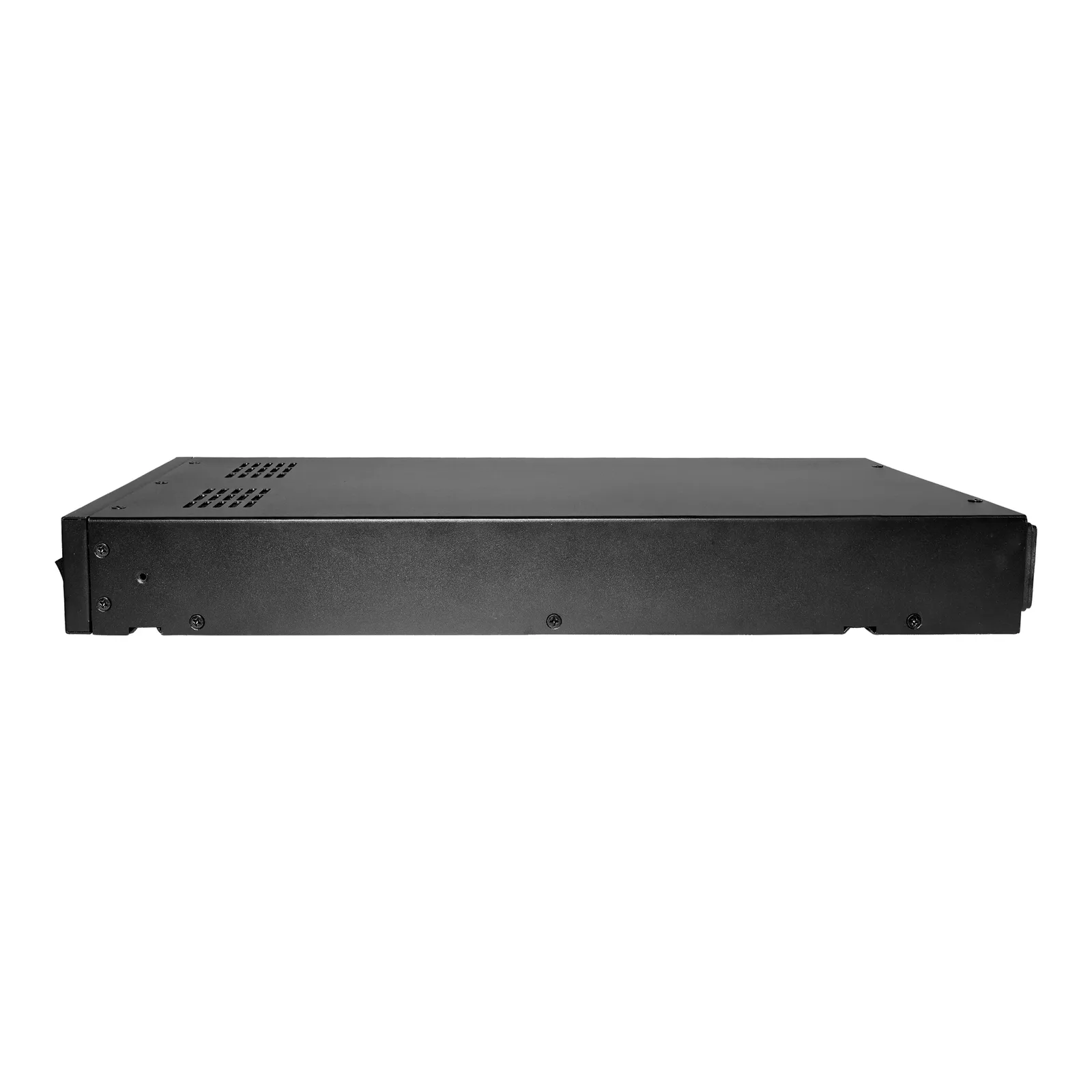

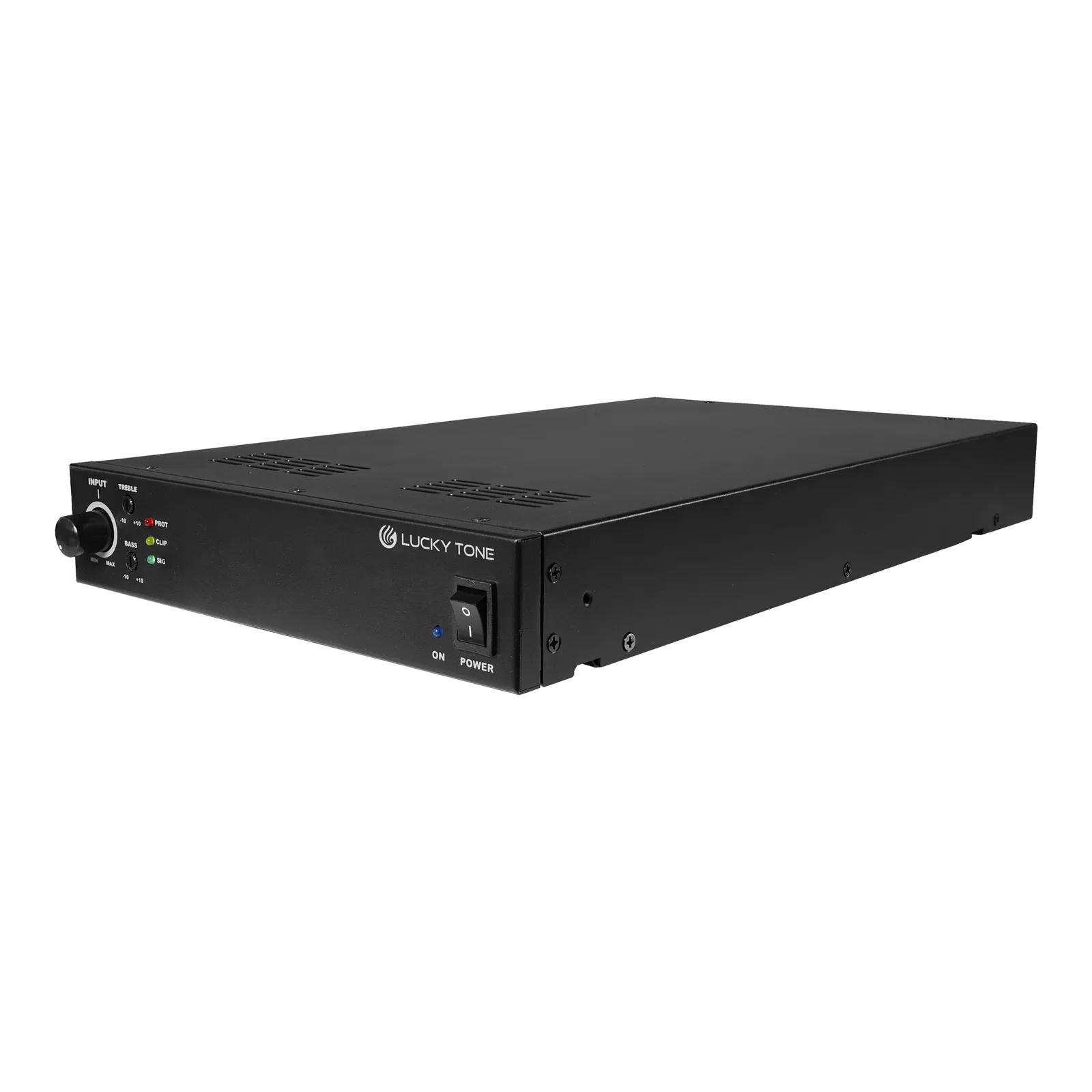

SIP Network Amplifier
الكود: EC-1120 SIP / HA-1250 SIP / HA-1500 SIP
Features Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade Support MP3, WMA, WAV and more decoding With a standard RJ45 network interface and supports online firmware upgrade from long distance 120Watts ~ 480Watts output Advanced protection system includes current limiting, over current and thermal protections Desktop type with rack mount bracket Two bands tone controls Low distortion and low noise level Compact in Size and easy to install Ideal commercial and industrial use
المواصفات الفنية
Model
EC-1120 SIP / HA-1250 SIP / HA-1500 SIP
Rated Power at 8ohm
2x60W / 2x120W / 2x240W
Bridged Power at 100V
120W / 240W / 480W
Power Consumption
195W / 325W / 588W
Network Communication Protocol
SIP
Network Interface
10/100Base-TX, RJ45
Decoding
MP3/WMA/WAV
Input sensitivity / Impedance
-0dBu/10kohm Unbalanced / Balanced
Power Supply Voltage
AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz
Speaker Output
100V / 8Ω
Frequency Response
80Hz~17KHz ( +1dB /-3dB )
S/N Ratio
>80dB (with A-Weight)
T.H.D
<1% (at rated power, 1kHz)
Working Humidity
90%
Tone Controls
Bass:100Hz(±10dB), Treble:10KHz(±10dB)
Working Temperature
0℃~+40℃
Product Dimension (WxHxD)
215*44*330 mm (Half-Rack)
Net Weight
3.3kg
الاستخدامات
Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade
Support MP3, WMA, WAV and more decoding
With a standard RJ45 network interface and supports online firmware upgrade from long distance
120Watts ~ 480Watts output
Advanced protection system includes current limiting, over current and thermal protections
Desktop type with rack mount bracket
Two bands tone controls
Low distortion and low noise level
Compact in Size and easy to install
Ideal commercial and industrial use
